DSP SIGNAL FLOW
J11
Analog signals
going out
to DCA
J13
Digital signals
DT=from DSP
DR=to DSP
J12
J1
Analog signals
coming in from
Analog I/O
J2
Analog signals
going out
to Analog I/O
J3
Analog signals
coming in from
control surface
J11 J3
J15
J12
J2 J1
J13
CODEC 113
CODEC connectors

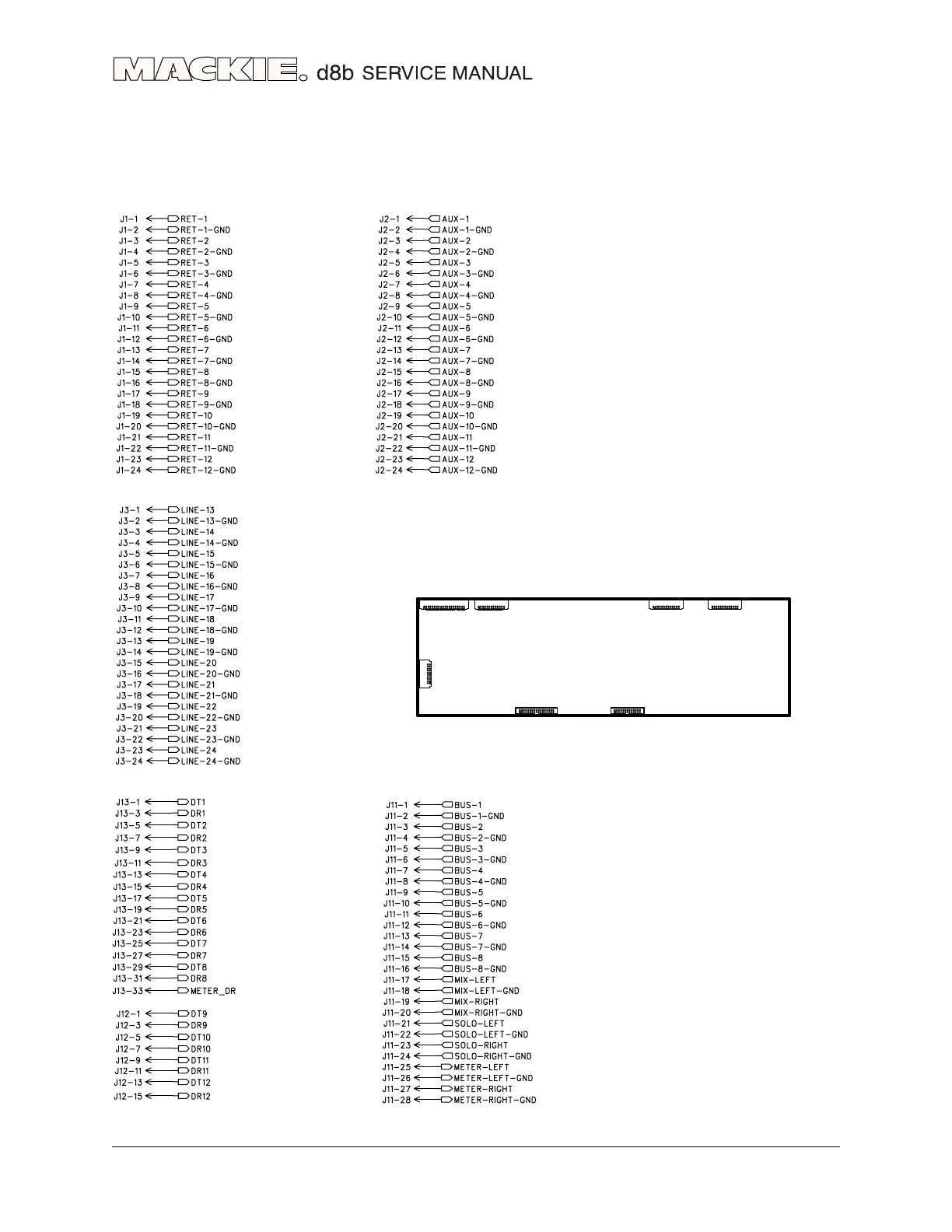

This is a compilation of all the CODEC
board’s connectors, mainly showing
the analog inputs, data received and
transmitted. The power,ground and
clocks are not shown, but they can be
found in the connectors chapter, or on
the schematics.
