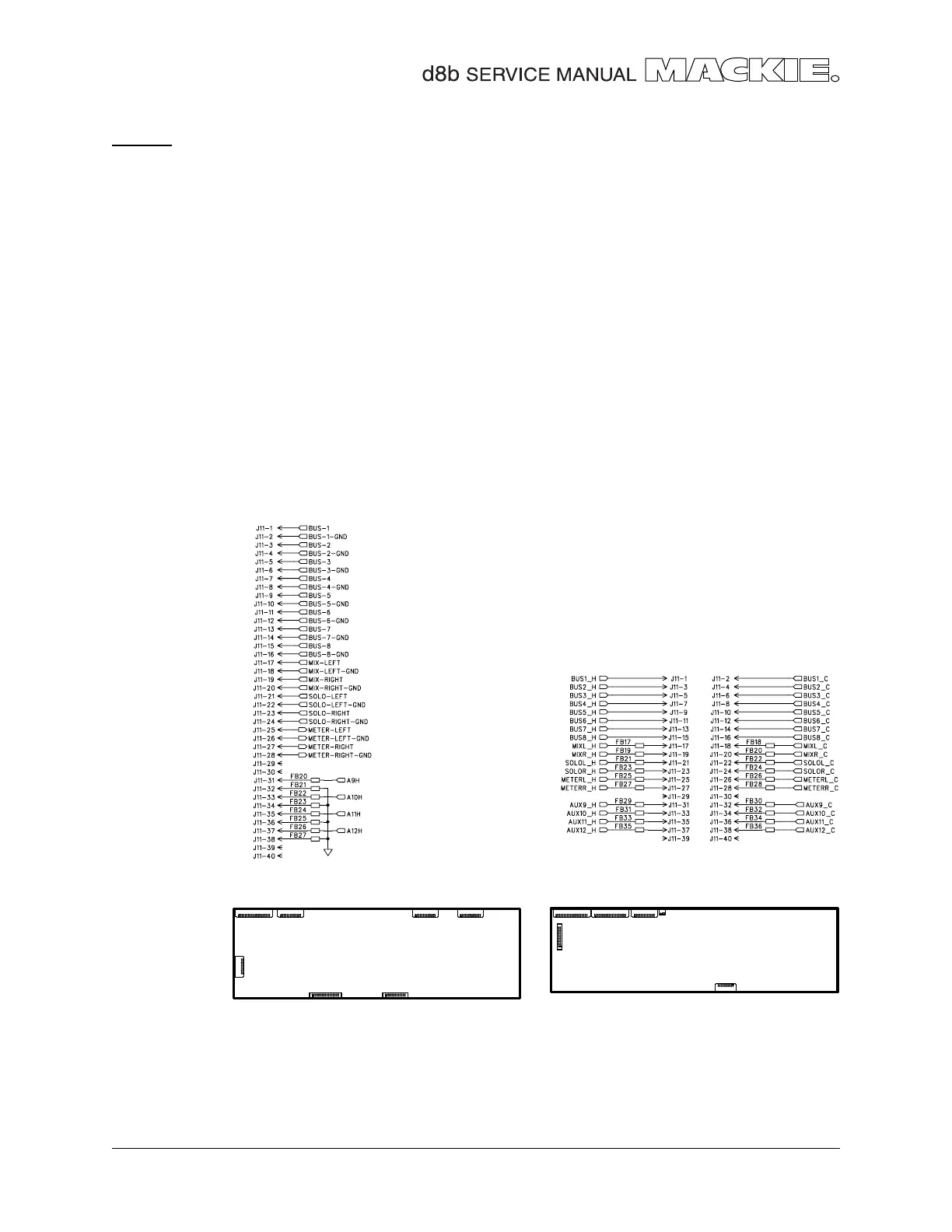

Mackie d8b v3 - Page 92

C-9
CONNECTORS
CONNECTORS
J10J11 J9
J60
J8
J31
DCA 112
J11 J3
J15
J12
J2 J1
J13
CODEC 113
J11
NOTE although the busses are labeled like this on
all schematics, they are swapped in software,
so Bus1 on schematic = Bus 8 really
Bus 2 = Bus 7 really
Bus 3 = Bus 6
Bus 4 = Bus 5
Bus 5 = Bus 4
Bus 6 = Bus 3
Bus 7 = Bus 2
Bus 8 = Bus 1
