Mackie D8B - Page 108

125-1

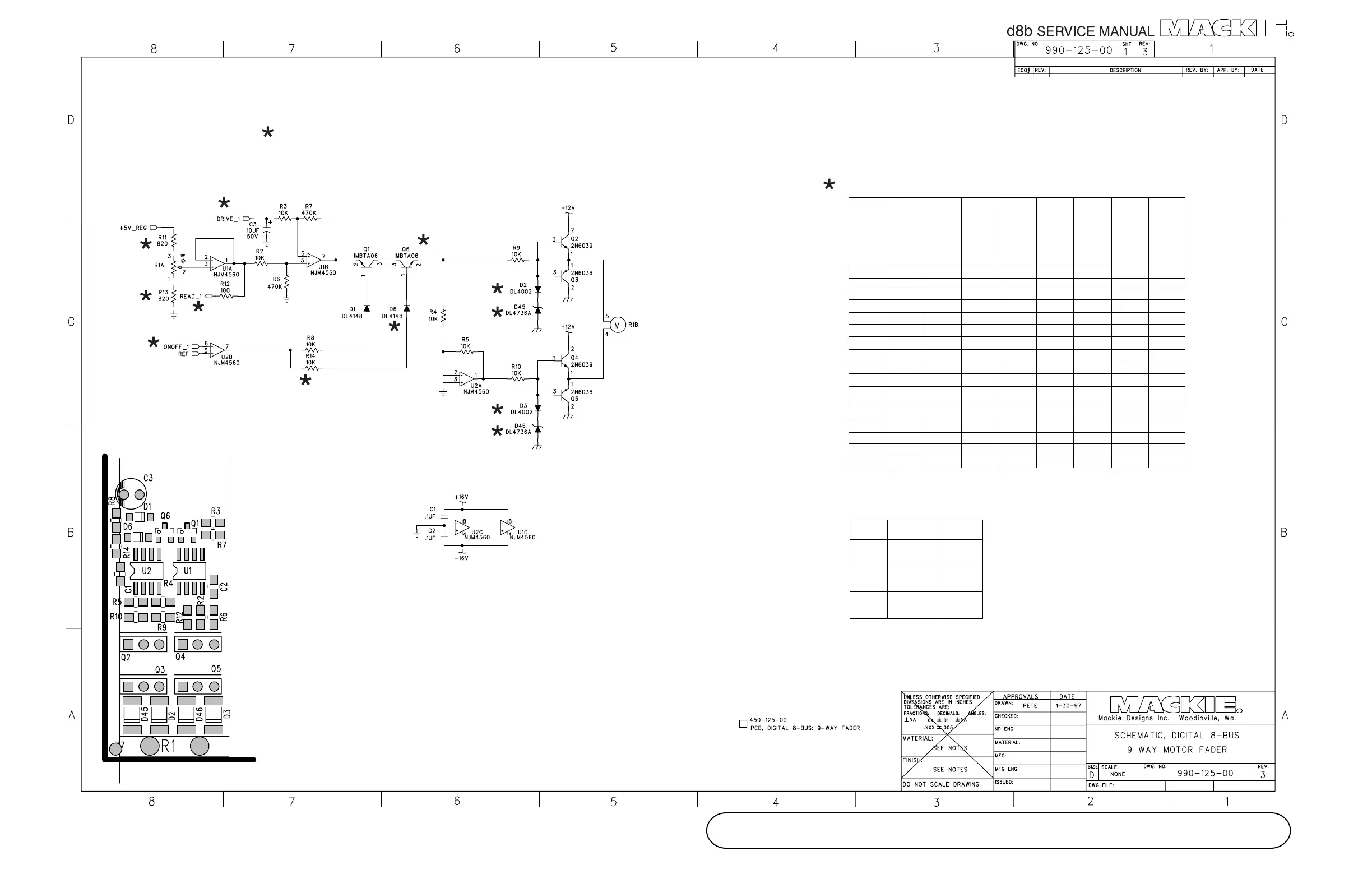

9-WAY FADER 125 REV 3
©1998 Mackie Designs Inc. All rights reserved
SHEET 1 OF 2
R11
R13
FADER PARTS RANGE EXAMPLE
1 IN THE 100'S R3, C3
R203, C203
R803, C803
2
8
IN THE 200'S
IN THE 800'S
FADER 1 FADER 2 FADER 3 FADER 4 FADER 5 FADER 6
TABLE OF DIFFERENCES BETWEEN FADERS
DRIVE_1
FADER 7 FADER 8 FADER 9
READ_1
ON/OFF_1
R14
D6
Q6
D2
D45
D3
D46
R15
R17
DRIVE_2
READ_2
ON/OFF_2
R16
D7
Q7
D4
D43
D5
D44
R19
R21
DRIVE_3
READ_3
ON/OFF_3
R18
D8
Q8
D15
D41
D16
D42
R23
R25
DRIVE_4
READ_4
ON/OFF_4
R20
D9
Q9
D17
D39
D18
D40
R27
R29
DRIVE_5
READ_5
ON/OFF_5
R22
D10
Q10
D19
D37
D20
D38
R49
R50
DRIVE_6
READ_6
ON/OFF_6
R24
D11
Q11
D21
D35
D22
D36
R51
R52
DRIVE_7
READ_7
ON/OFF_7
R26
D12
Q12
D23
D33
D24
D34
R53
R54
DRIVE_8
READ_8
ON/OFF_8
R28
D13
Q13
D25
D31
D26
D32
R55
R56
DRIVE_9
READ_9
ON/OFF_9
R30
D14
Q14
D27
D29
D28
D30
SHOWN
SHOWN
Points marked with an asterix are shown in the table, the
other reference designators change by 100's
