109-1
©1998 Mackie Designs Inc. All rights reserved

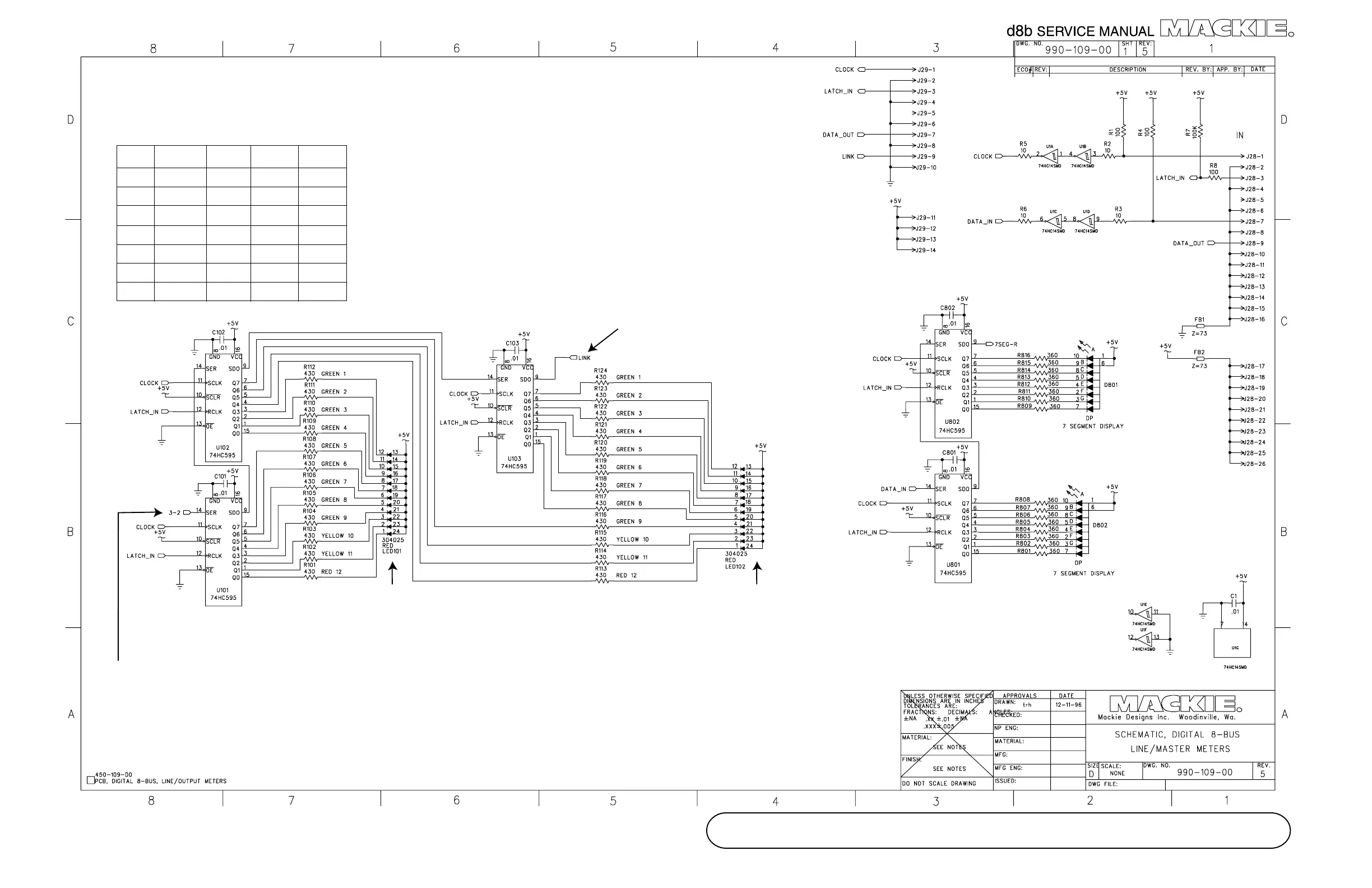

LINE/MASTER METER BOARD 109 REV A
POINT A, SEE TABLE
(CH 1&2 SHOWN)
POINT B, SEE TABLE
(CH 1&2 SHOWN)
CHANNEL 2 (SHOWN) CHANNEL 1 (SHOWN)
CHANNEL 4 CHANNEL 3
CHANNEL 6 CHANNEL 5
CHANNEL 8 CHANNEL 7
CHANNEL 10 CHANNEL 9
CHANNEL 12 CHANNEL 11
MASTER RIGHT MASTER LEFT
1 SHEET
CHANNEL PARTS RANGE EXAMPLE
1&2 IN THE 100'S R103, U102
R203, U202
R303, U302
3&4 IN THE 200'S
5&6 IN THE 300'S
7&8 IN THE 400'S R403, U402
R503, U502
R603, U602
9&10 IN THE 500'S
11&12 IN THE 600'S
R703, U702
MASTER L
& RIGHT
IN THE 700'S
POINT A POINT B
LINK 3-2
5-4
7-6
3-2
5-4
7-6 9-8
11-10
L-12
9-8
11-10
7SEG-RL-12
CH1 TO CH 12 ALL HAVE THE SAME
CIRCUIT DESIGN, THIS IS CH 1 AND CH2
REFERENCE DESIGNATOR AND LABEL DIFFERENCES
BETWEEN CHANNELS
