Master Fader: GEQ and PEQ
The master fader EQ displays the
current Graphic EQ and Parametric
EQ settings simultaneously.
When the Graphic EQ and/or
Parametric EQ is engaged, it will
illuminate. Tapping the master
fader’s GEQ/PEQ will change the
view from the Mixer View to the
Channel View for the currently
selected output. The GEQ/PEQ is
available with all selected outputs,
except Reverb and Delay. You will
learn how to adjust the GEQ/PEQ
soon.
Master Fader: Mute
The master fader mute works
exactly like a channel mute, except
it mutes the output. Use it as a break
switch to mute monitors when the
band takes a break, for example. The
Mute button is available when any
output is selected. It illuminates red
when engaged.
Master Fader
Master Fader: Balance & Pre/Post
When LR is the selected output,
the Balance slider controls how
much of the output signal is sent
to the left versus the right outputs
[Figure M]. Touch and drag the slider
left or right to make adjustments.
Tapping the master fader’s Balance
ball twice will center it.
When an Aux Send, Reverb
or Delay is the selected output,
the Balance control is replaced
with a Pre / Post selection [Figure N].
Here, the output may be configured
as Pre DSP (auxes only), Pre Fader
or Post Fader. Simply tap which
setting you prefer.
Graphic &
Parametric
EQ
Figure N

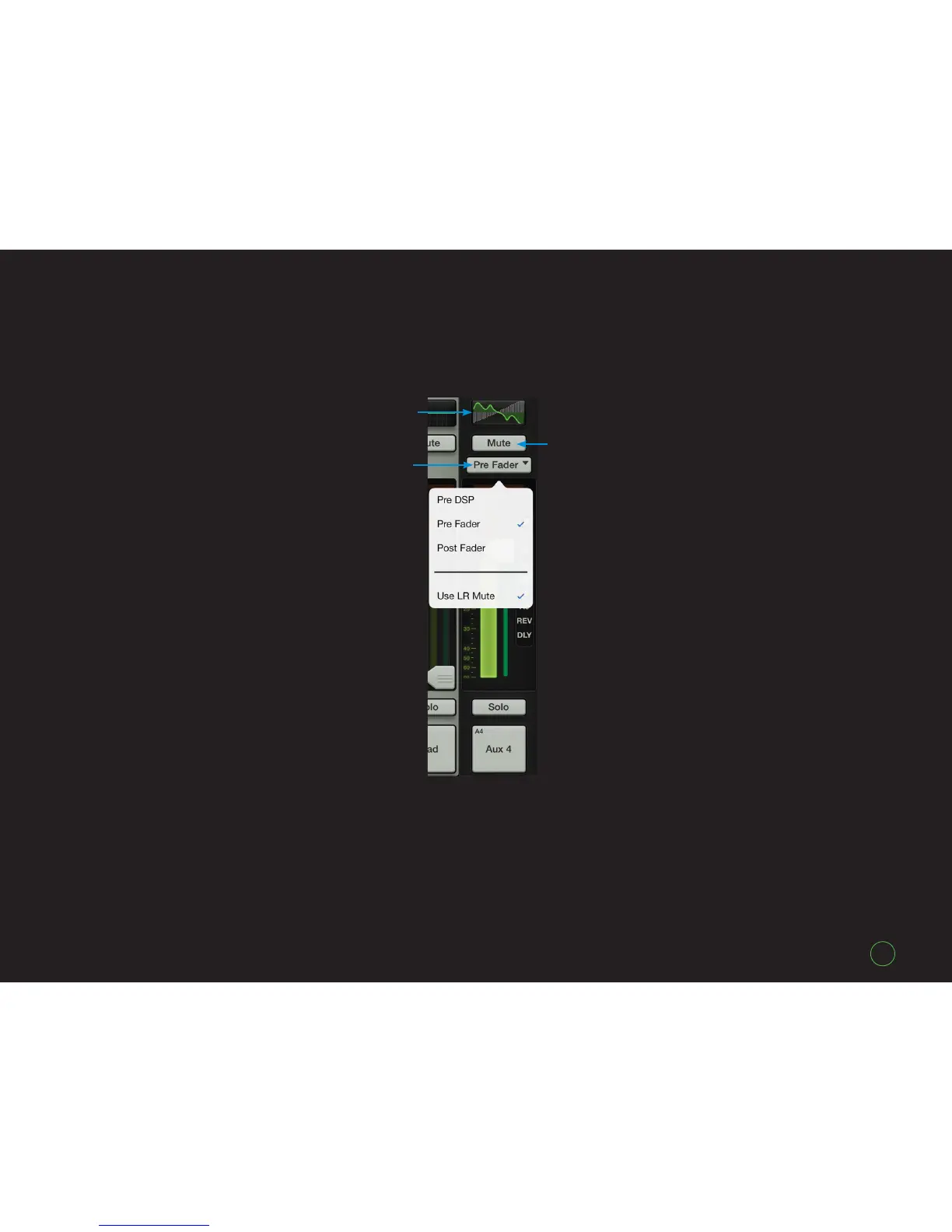

Master Fader:
Auxes & FX
Pre DSP
Pre Fader
Post Fader
Mute
