DL806 and DL1608 Owner’s Manual
12

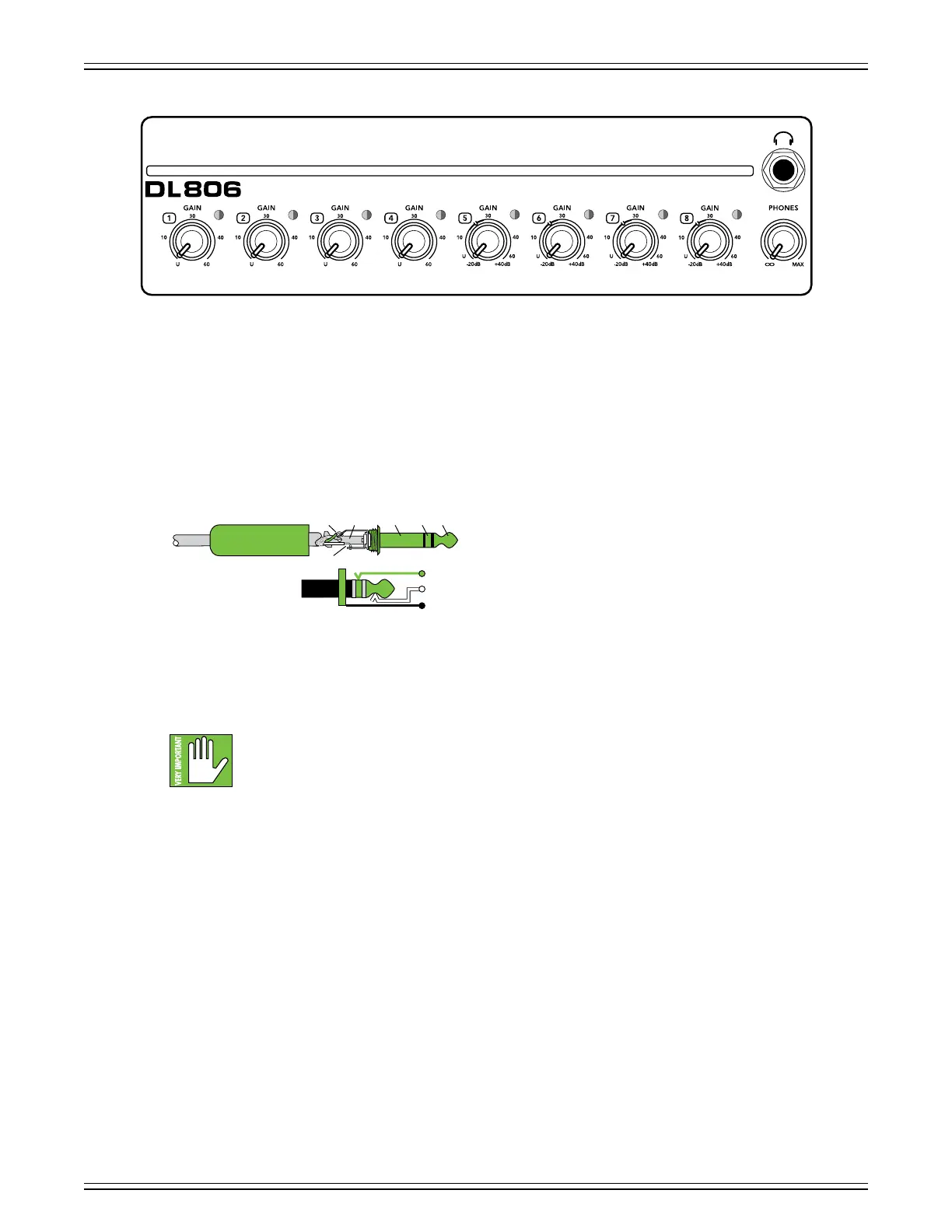

Phones Output Jack
This 1/4" TRS connector supplies the output to stereo headphones. The volume is controlled with the
phones knob located right below the output jack.
The phones output follows standard conventions:
Tip = Left channel
Ring = Right channel
Sleeve = Ground
Phones Knob
This knob is used to adjust the volume from the phones output jack, from o to maximum gain (max).
The phones knob is an analog control, and is therefore NOT recallable.
Warning: The headphone amp is loud and could cause permanent hearing damage.
Even intermediate levels may be painfully loud with some headphones. BE CAREFUL!
Always turn the phones knob all the way down before connecting headphones, soloing
a channel or doing anything new that may aect the headphone volume. Then turn it up slowly as
you listen carefully.
SLEEVE
TIPSLEEVE
TIP
RING
RING
TIP
SLEEVERING
DL806 Front Panel
