MDB Series Direct Boxes
6
MDB Series Direct Boxes
Hookup Diagrams
The MDB-2P direct box works great for musicians with stereo instruments. In this example, we connected
a synthesizer to the MDB-2P lef and right input jacks. The thru jacks are then connected to the keyboard
amplifier’s input jacks.
Unlike the other MDB Series Direct Boxes, the rear panel of the MDB-2P has dual L/R output jacks for
connecting XLR cables between the MDB-2P and a mixer’s input jacks.
Your fantastic fans await your memserizing music and tasteful tunes. Time to stop reading...
Note: While we used a Mackie ProFX12v2 mixer in this example, you could connect the outputs of the MDB-2P
to the input jacks of an audio interface instead. The Mackie Big Knob Studio and Studio+ come to mind!

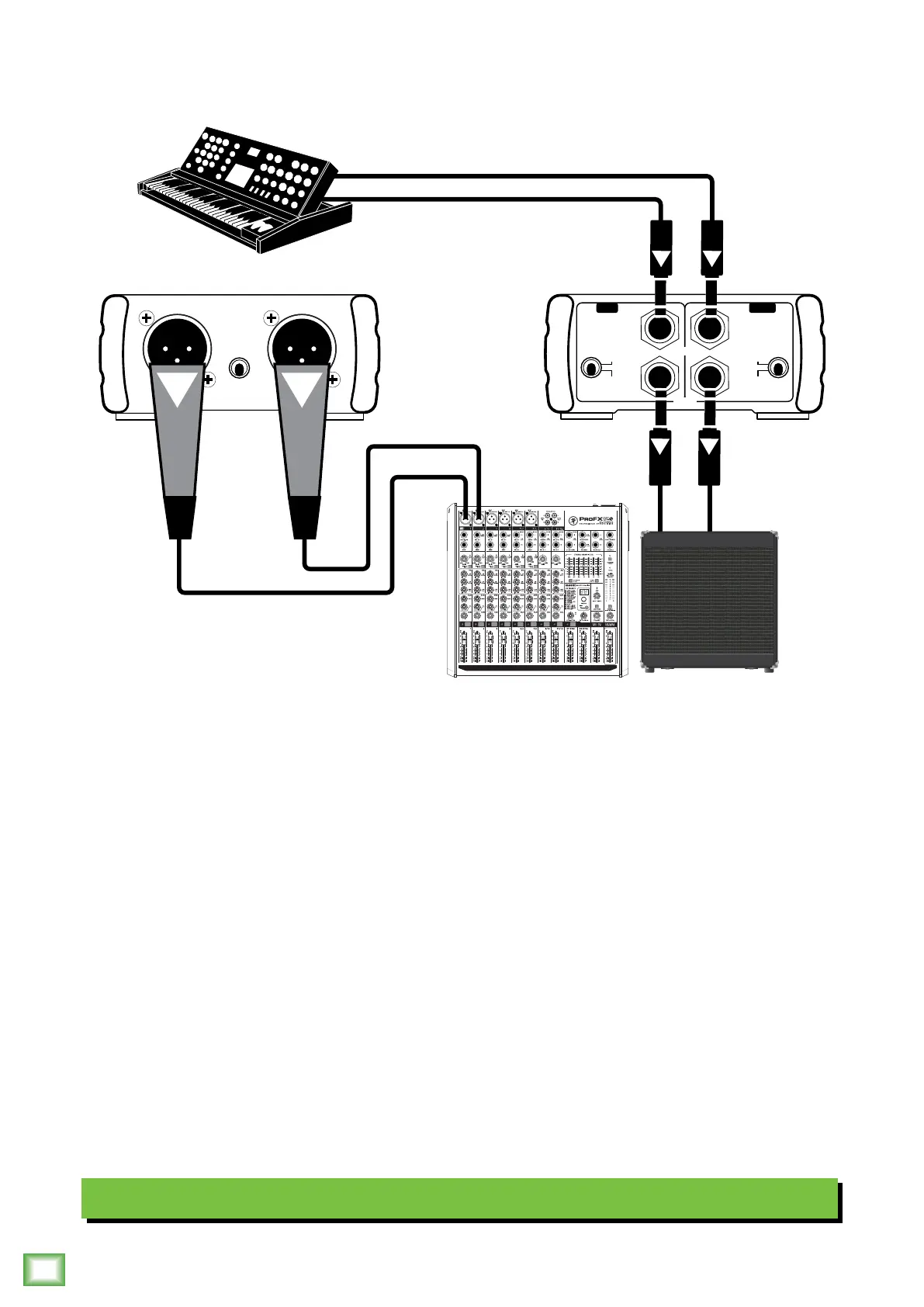

Typical MDB-2P Setup
PAD PAD
0 dB
-15 dB
0 dB
-15 dB
THRU
INPUT
LEFT RIGHT
RIGHT OUTPUT LEFT OUTPUT
GROUND
LIFT
48V
MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE
