Mackie SRM210 V-Class User Manual

Owner’s Manual
7
Owner’s Manual
DJ System
PUSH FOR SETTINGS
50-60 Hz 110W
100-240VAC
SPEAKER CONTROL
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
PUSH FOR SETTINGS
50-60 Hz 110W
100-240VAC
SPEAKER CONTROL
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
PUSH FOR SETTINGS
SPEAKER CONTROL
SUBWOOFER HPF
DRM SUB
VAROFF
DRM
SUB
PUSH FOR SETTINGS
SPEAKER CONTROL
FLAT LIVE MUSIC
INSIDEMONCLUB
CLUB
SPEAKER VOICING
Hookup Diagrams continued…
Perhaps you’re a DJ playing bumpin’ tunes in the middle of the night to a crowd that’s groovin’ and dancin’
to your fine selection.

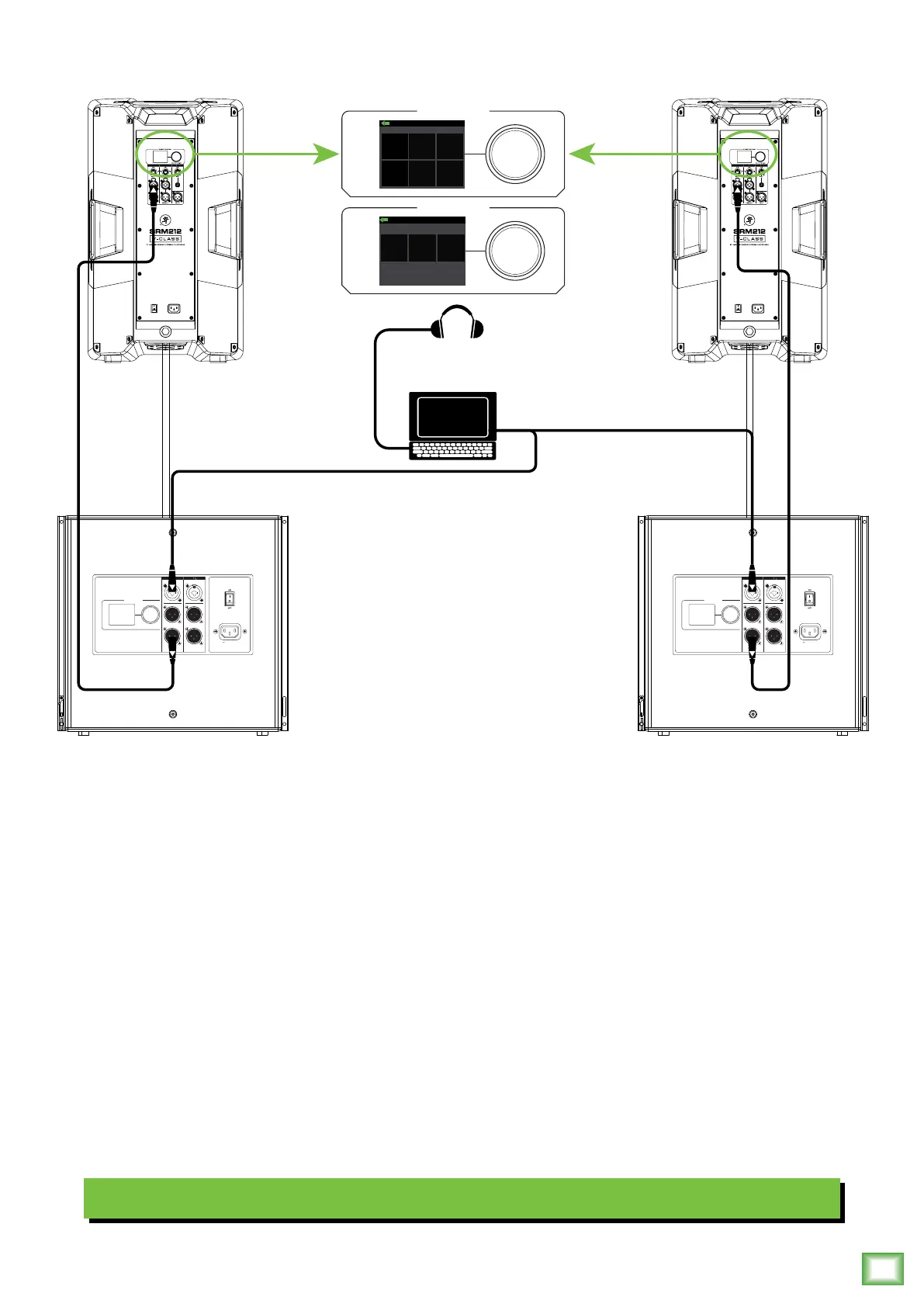

In this example, a laptop is connected to the inputs of two DRM8S subwoofers.
The High-Pass Out of each subwoofer is then connected to the input of each SRM22 | V-Class loudspeaker.
Additionally, a set of Mackie MC-250 headphones is connected to the phones jack of the laptop.
The Speaker Modes of both loudspeakers may be set to Club and the Subwoofer HPF set to DRM Sub.
