Macnaught Flexigun K29 - SPARE PARTS; SPARE PARTS LIST

KF139 Issue 18 © 2017 Page 9 of 12

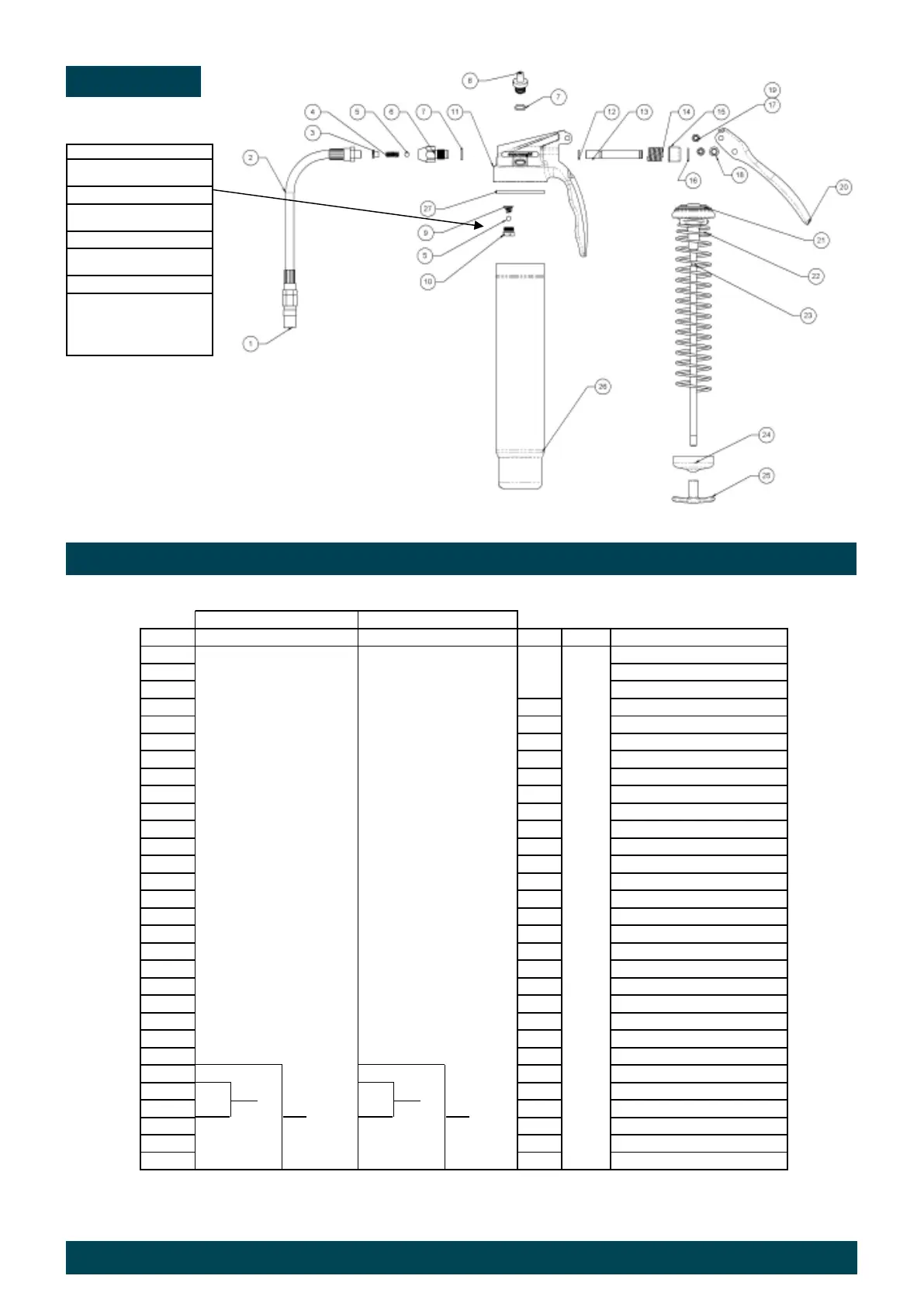

SPARE PARTS
SPARE PARTS LIST
Important !
Use loctite sealant on check
valve threads .
Important !
Enduire le filet du clapet de filet
sealant
Importante !
Use sellador Loctite en la rosca
de la válvula de retención.
Wichtig !
Benutzen Sie Loctite Dichtstoff
am Gewinde des
Rückschlagventils
* Please nominate model number (eg. K32-01) when ordering spare parts
Note item KF35s and KF36s replace the handle and rod in older models of K29 and K32
K29 (450g) spare parts K32 (400g) spare parts
Order for replacement Order for replacement
Item No Part or set Part or set No off Kit Ref Part name
K29-1K (KIT A) K29-1K (KIT A) A MAJOR HEAD KIT K29 /K32
21
K27-2K (KIT B) KF14A-2K (KIT B) B FOLLOWER KIT
1 KY KY 1 Coupler
2 KF9 KF9 1 Flexible hose Assy’
3 1
A
Spring keeper
4 1
A
Outlet ball spring
5 2
A
¼” Steel ball
6 1
A
Outlet body
7 2
A
O’Ring (BS013)
8 KF75s KF75s 1
A
Filler/Bleeder valve
9 1
A
Check valve spring
10 1
A
Check valve body
11 N/A - new gun required N/A - new gun required Body
(ALUMINIUM)
11 N/A - new gun required N/A - new gun required Body
(ZINC)
12 1
A
O’Ring (BS011)
13 1
A
Piston
14 1
A
Piston spring
15 1
A
Piston sleeve
16 1
A
Circlip
17 2
A
Retainer screw
18 1
A
Piston roller
19 2
A
Pivot pin
20 N/A - new gun required N/A - new gun required 1 Handle
22 1 Follow er spring
23 KF36s KF35s 1 Follow er rod
25 KF111s KF27s 1 Pull Handle
26 (barrel set) (barrel set) 1 Barrel
24 1 End cap
27 1
A & B
Seal w asher
