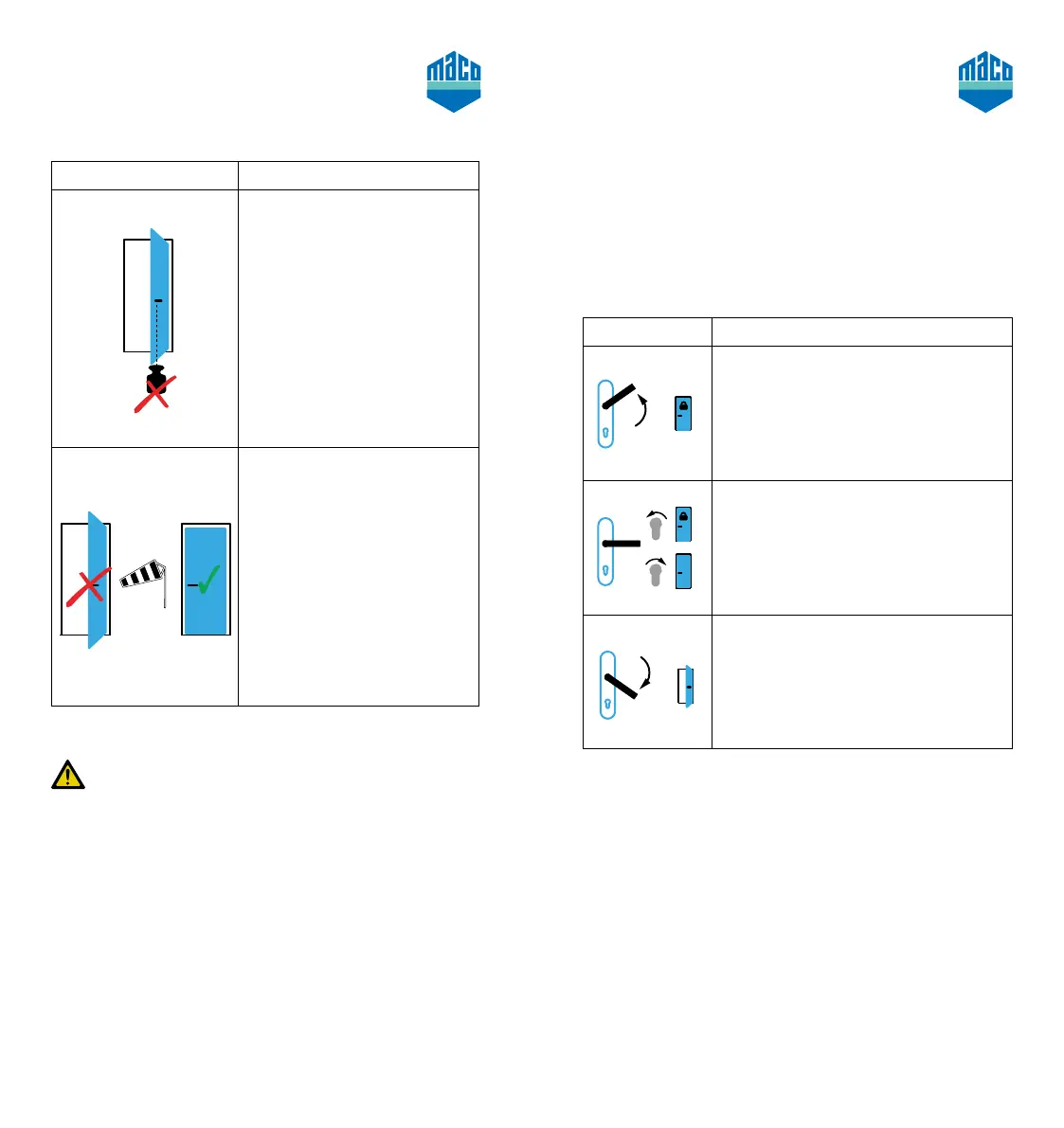

Maco PROTECT - Safety and Warning Information; Door Safety Symbols and Risk Explanations

- 6 - - 7 -
Icon Importance
Risk of injury and damage to
property due to extra load on the
door
➜ Prevent extra loads on the door.
Risk of injury and damage to
property due to wind
➜ Prevent wind from aecting the
open door.
➜ Always close and lock the door
immediately when windy or
dray.
➜ If high winds or storms are
coming, close and lock all doors.
ATTENTION!
When any normally obvious or visible damage or malfunction is
noticed, the door must no longer be operated and must be
serviced immediately by a specialist company before any further
use!
Operating instructions
Illustrative symbols
The following symbols show the various possible handle and
cylinder functions and the resulting door settings.
Handle-operated locks
B-TV, G-TS, C-TS, G-TA
Handle Position Importance
1x
1x
When the handle is pushed up, all locking
elements (pins, bolts, hooks) are activated.
1x
1x
In the basic handle position, the door lock
can be locked by a double 360° rotation (in
the locking direction) or unlocked (against
the locking direction). If the cylinder is used
for locking, the handle will be blocked.
1x
1x
To open the door, push the handle
downwards.
