transmisor alrededor de los cables de luces de reversa.
Una vez conectado, coloque cinta aislante.

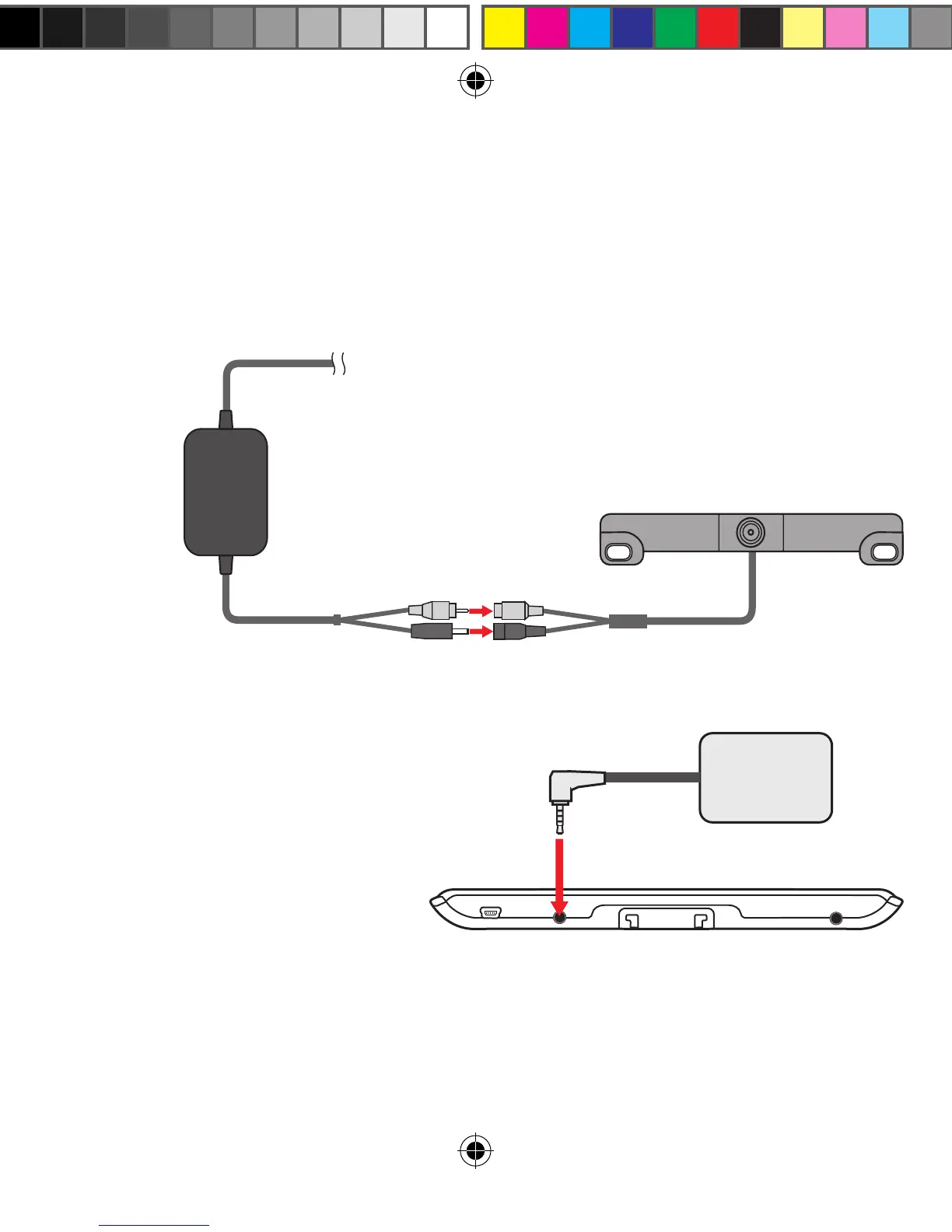

4. Conecte el cable de energía y el cable de video del
transmisor a los cables de la cámara.
Instalación del receptor
5. Deslice el receptor
sobre la parte
posterior del acople
PND. Conecte el
miniconector 3.5 al
puerto AV-IN de su
GPS RoadMate.
Backup Camera.indd 15 5/19/2011 9:30:25 AM
