10

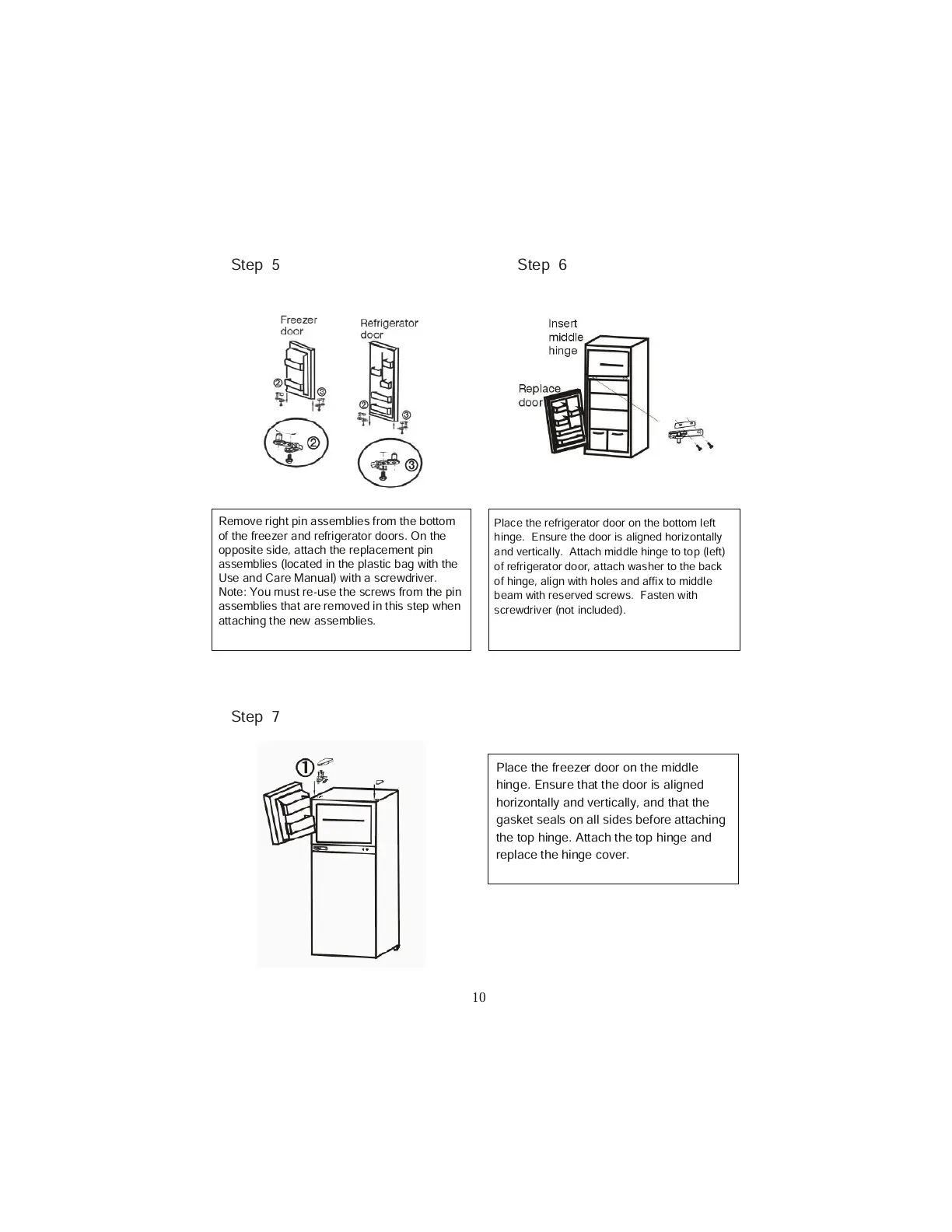

Remove right pin assemblies from the bottom
of the freezer and refrigerator doors. On the
opposite side, attach the replacement pin
assemblies (located in the plastic bag with the
Use and Care Manual) with a screwdriver.
Note: You must re-use the screws from the pin
assemblies that are removed in this step when
attaching the new assemblies.
Place the refrigerator door on the bottom left
hinge. Ensure the door is aligned horizontally
and vertically. Attach middle hinge to top (left)
of refrigerator door, attach washer to the back
of hinge, align with holes and affix to middle
beam with reserved screws. Fasten with
screwdriver (not included).
Place the freezer door on the middle
hinge. Ensure that the door is aligned
horizontally and vertically, and that the
gasket seals on all sides before attaching
the top hinge. Attach the top hinge and
replace the hinge cover.
Step 5
Step 7
Step 6
