8
Step 5 Step 6
Step 7

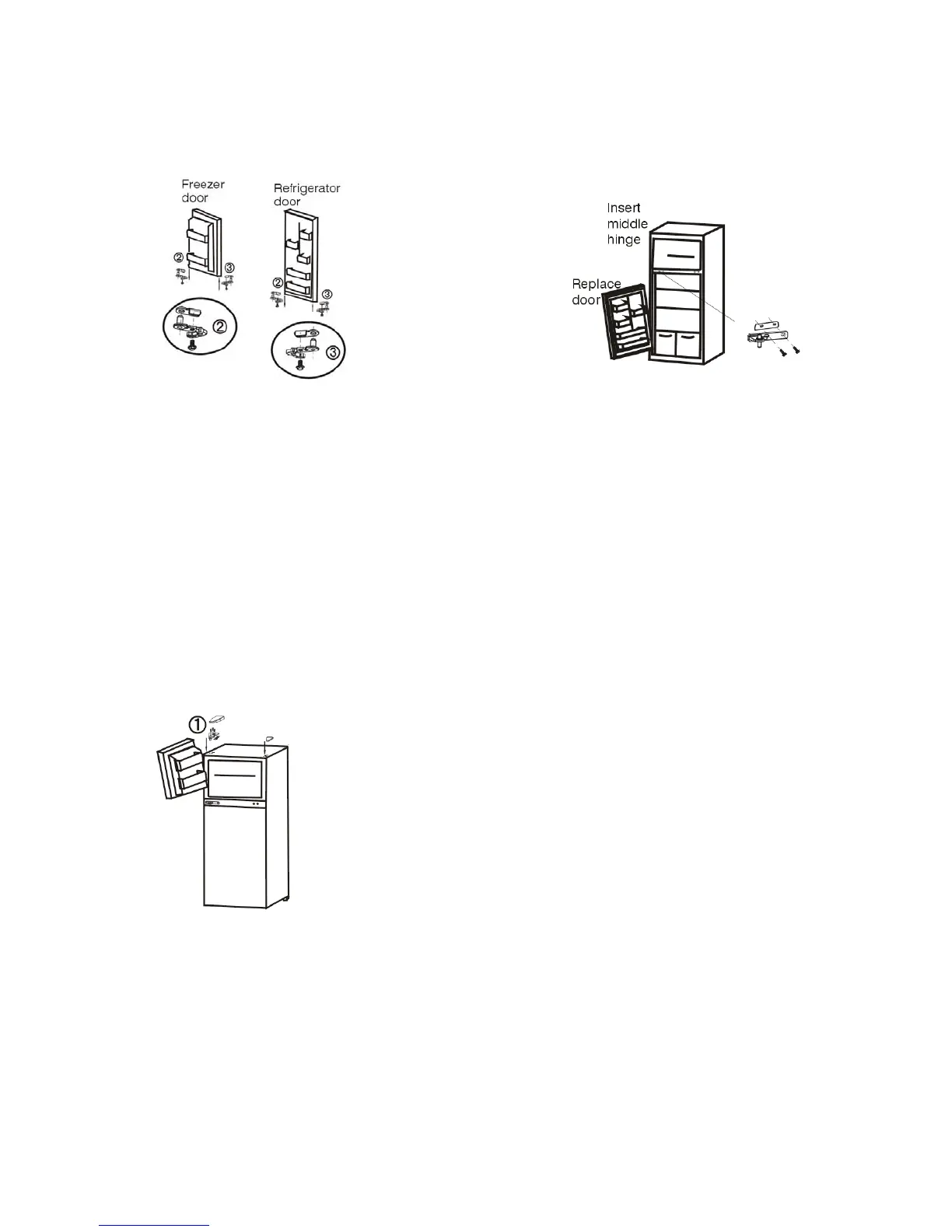

Remove the pin assembly from the bottom
of the freezer and refrigerator doors. On
the opposite side, attach the replacement
pin assembly (located in the plastic bag
with the Use and Care Manual) with a
screwdriver. Note: You must re-use the
screw from the pin assembly that is
removed in this step when attaching the
new assembly.
Place the refrigerator door on the bottom
hinge. Ensure the door is aligned
horizontally and vertically, and that the
gasket seals on all sides before attaching the
middle hinge. Attach the middle hinge using
a screwdriver.
Place the freezer door on the middle
hinge. Ensure that the door is aligned
horizontally and vertically, and that the
gasket seals on all sides before attaching
the top hinge. Attach the top hinge and
replace the hinge cover.
