Door latch - When the door is closed, it will
automatically shut off. If the door is opened while
the oven is operating, the magnetron will
automatically shut off.
22
Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
33
Oven cavity
44
Oven lamp - Automatically turns on during oven
operating.
55
Safety interlock system
66
Control panel
77
Door open button - To open the door push the
door open button.
88
Waveguide cover - Protects the microwave outlet
from splashes of cooking foods.
99
Roller guide - This must always be used for
cooking together with the glass cooking tray.
00
Coupler - This fits over the shaft in the center of
the oven cavity floor.
This is to remain in the oven for all cooking.
qq
Glass cooking tray - Made of special heat
resistant glass. The tray must always be in proper
position before operating. Do not cook food
directly on the tray.
ww
Viewing screen - Allows viewing of food.
The screen is designed so that light can pass
through, but not the microwave.

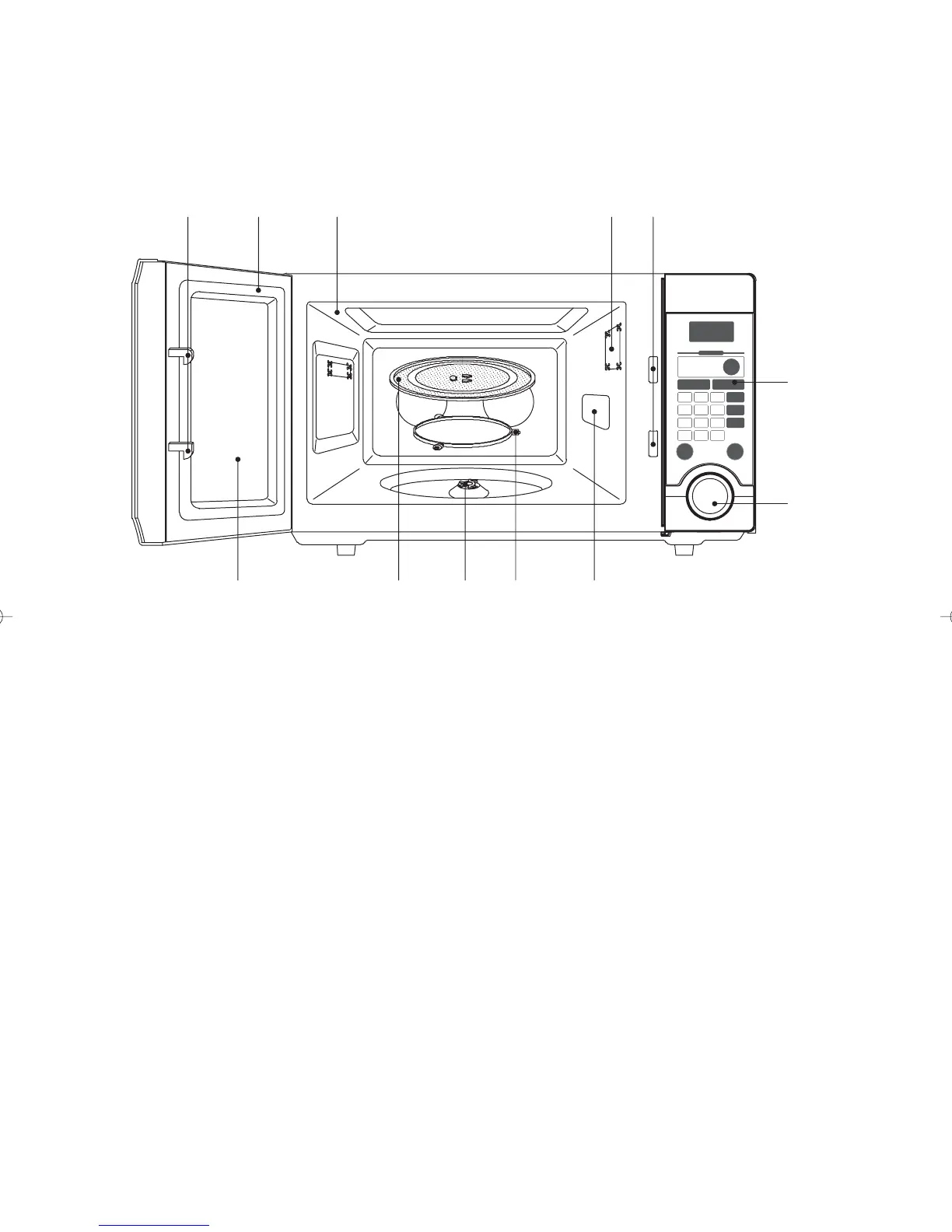

FEATURES DIAGRAM
12 3 45
890q
w
6
7
