12

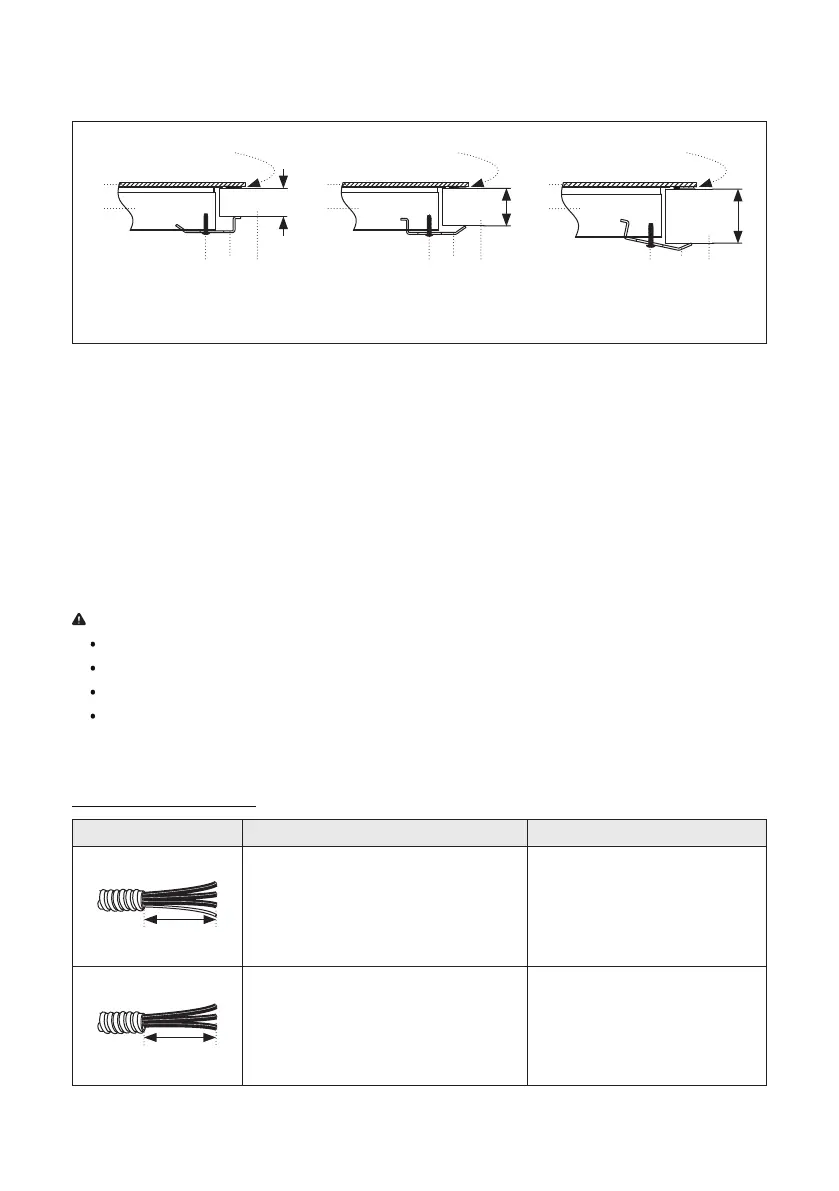

4. Attach brackets to cooktop base bottom with bracket clamping screws using the bracket mounting holes.
Securely tighten screws.
a. Cooktop
b. Cooktop Base
c. Clamping Screw
d. Clamping Bracket (It extends far enough beyond cooktop base to allow installation of clamping screws.)
e. Countertop
f. Foam Seal
g. Thickness of the Countertop
Figure 6
a
b
d
f
ec
g
a
b
d
f
ec
g
a
b
d
f
ec
g
Option 1:
Countertop is 1-1/8” (3cm) thick.
Option 2:
Countertop is 1-9/16” (4cm) thick.
Option 3:
Countertop is 2” (5cm) thick.
MAKE ELECTRICAL CONNECTION
WARNING: Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death, fire, or electrical shock.
This cooktop is manufactured with a frame connected, green or bare ground wire. Connect the cooktop cable to
the junction box through the UL listed or CSA approved conduit connector.
Electrical Connection Options
If your home has And you will be connecting to Go to Section
4-wire direct
A fused disconnect or circuit breaker box
4-Wire Cable from Power Supply
to 3-Wire Cable from Cooktop (page 13)
3-wire direct
A fused disconnect or circuit breaker box
3-Wire Cable from Power Supply
to 3-Wire Cable from Cooktop (page 13)
5” (12.7 cm)
3-1/2” (8.9 cm)
To Next Page
