13
1. Disconnect power
2. Remove junction box cover if present.
3. Connect the flexible cable conduit from the cooktop to the junction box using a UL listed or CSA approved
conduit connector.
4. Tighten screws on conduit connector, if present.
5. Connect the two black wires together using the UL listed wire connectors.
6. Connect the two red wires together using the UL listed wire connectors.
7. Connect the green or bare ground wire from the cooktop cable to the green or bare ground wire (in the
junction box) using the UL listed wire connectors.
8. Put a UL listed wire connector on the end of the white wire.
NOTE: DO NOT connect the bare ground wire to the neutral (white) wire in the junction box.
9. Install junction box cover.
10. Reconnect power.

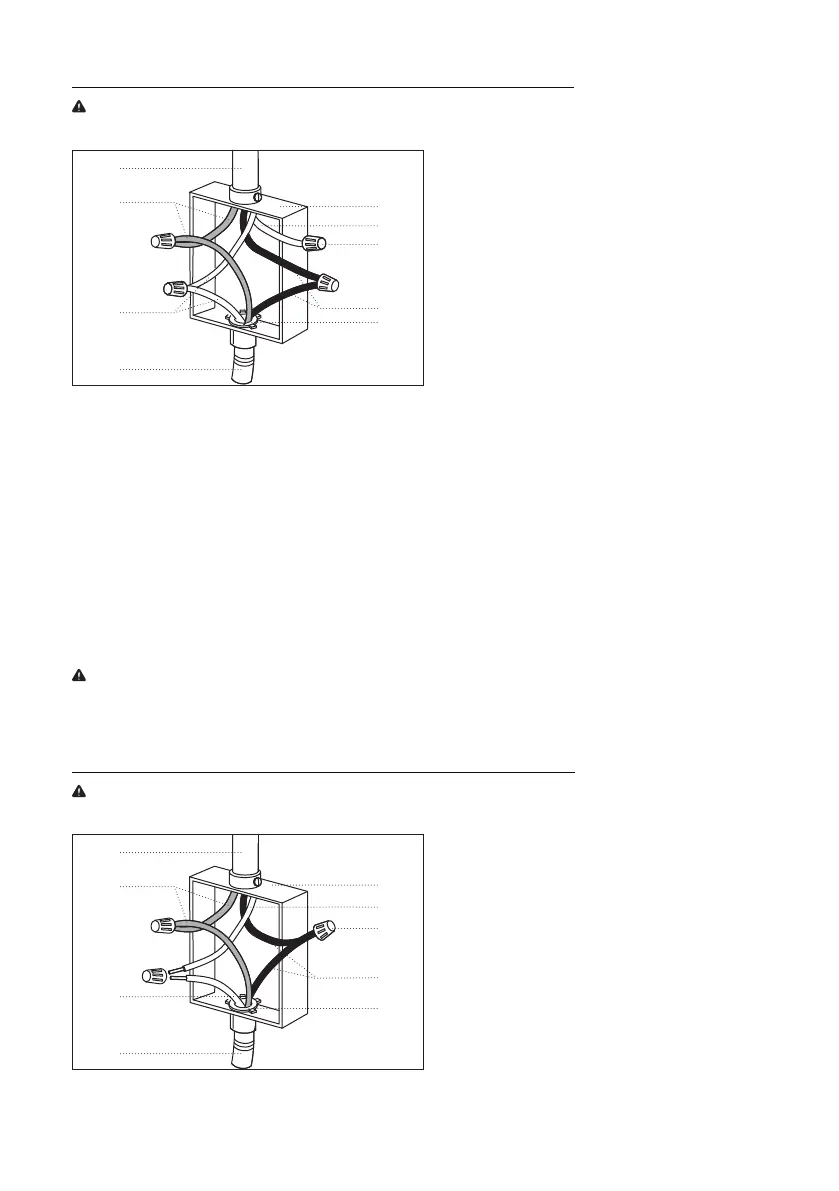

3-Wire Cable from Power Supply to 3-Wire Cable from Cooktop (Refer to Figure 8.)
IMPORTANT: Use the 3-wire cable from power supply where local codes permit connecting the frame-ground
conductor to the neutral (white) junction box wire.
1. Disconnect power
2. Remove junction box cover, if present.
a. 4-Wire Cable from Power Supply
b. Red Wires
c. Green or Bare Ground Wire (from Cooktop)
d. 3-Wire Cable from Cooktop
e. Junction Box
f. White Wire (from Power Supply)
g. UL Listed Wire Connector
h. Black Wires
i. UL Listed or CSA Approved Conduit Connector
a. 3-Wire Cable from Power Supply
b. Red Wires
c. Green or Bare Ground Wire (from Cooktop)
d. 3-Wire Cable from Cooktop
e. Junction Box
f. White Wire (from Power Supply)
g. UL Listed Wire Connector
h. Black Wires
i. UL Listed or CSA Approved Conduit Connector
Figure 7
a
e
f
g
h
i
b
c
d
4-Wire Cable from Power Supply to 3-Wire Cable from Cooktop (Refer to Figure 7.)
IMPORTANT: Use the 4-wire cable from power supply where local codes do not permit connecting the frame-
ground conductor to the neutral (white) junction box wire.
Figure 8
a
e
f
g
h
i
b
c
d
