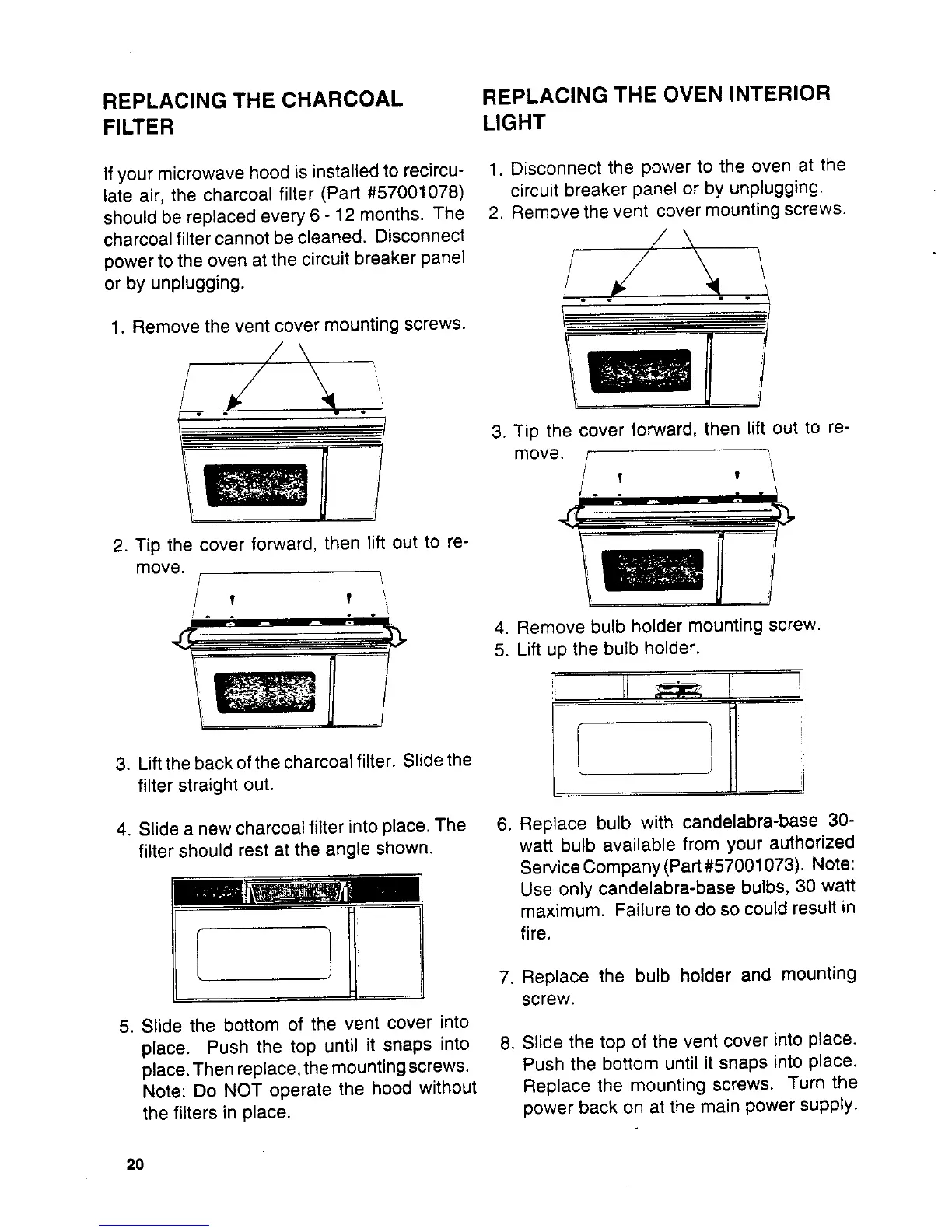

REPLACING THE CHARCOAL REPLACING THE OVEN INTERIOR
FILTER LIGHT
If your microwave hood is installed to recircu- 1. Disconnect the power to the oven at the
late air, the charcoal filter (Part #57001078) circuit breaker panel or by unplugging.
should be replaced every 6 - 12 months. The 2. Remove the vent cover mounting screws.
charcoal filter cannot be cleaned. Disconnect
power to the oven at the circuit breaker panel
or by unplugging.
1. Remove the vent cover mounting screws.
3. Tip the cover forward, then lift out to re-
move.
' ,
2. Tip the cover forward, then lift out to re-
move. /
/ v v
:-- --" 4. Remove bulb holder mounting screw.
5. Lift up the bulb holder.
3. Lift the back of the charcoal filter. Slide the ! j
filter straight out.
4. Slide a new charcoal filter into place. The 6. Replace bulb with candelabra-base 30-
filter should rest at the angle shown, watt bulb available from your authorized
Service Company (Part #57001073). Note:
Use only candelabra-base bulbs, 30 watt
maximum. Failure to do so could result in
fire.
7. Replace the bulb holder and mounting
screw.
5. Slide the bottom of the vent cover into
place. Push the top until it snaps into 8. Slide the top of the vent cover into place.
place.Then replace,themountingscrews. Push the bottom until it snaps into place.
Note: Do NOT operate the hood without Replace the mounting screws. Turn the
the filters in place, power back on at the main power supply.
