Magic-Pak MCE4 Series - Page 12

Page 12 of 14 507860-01Issue 1927
Maximum Wall
Thickness
C
A
1
B
D
E
29 1/8
Required Wall Opening
29

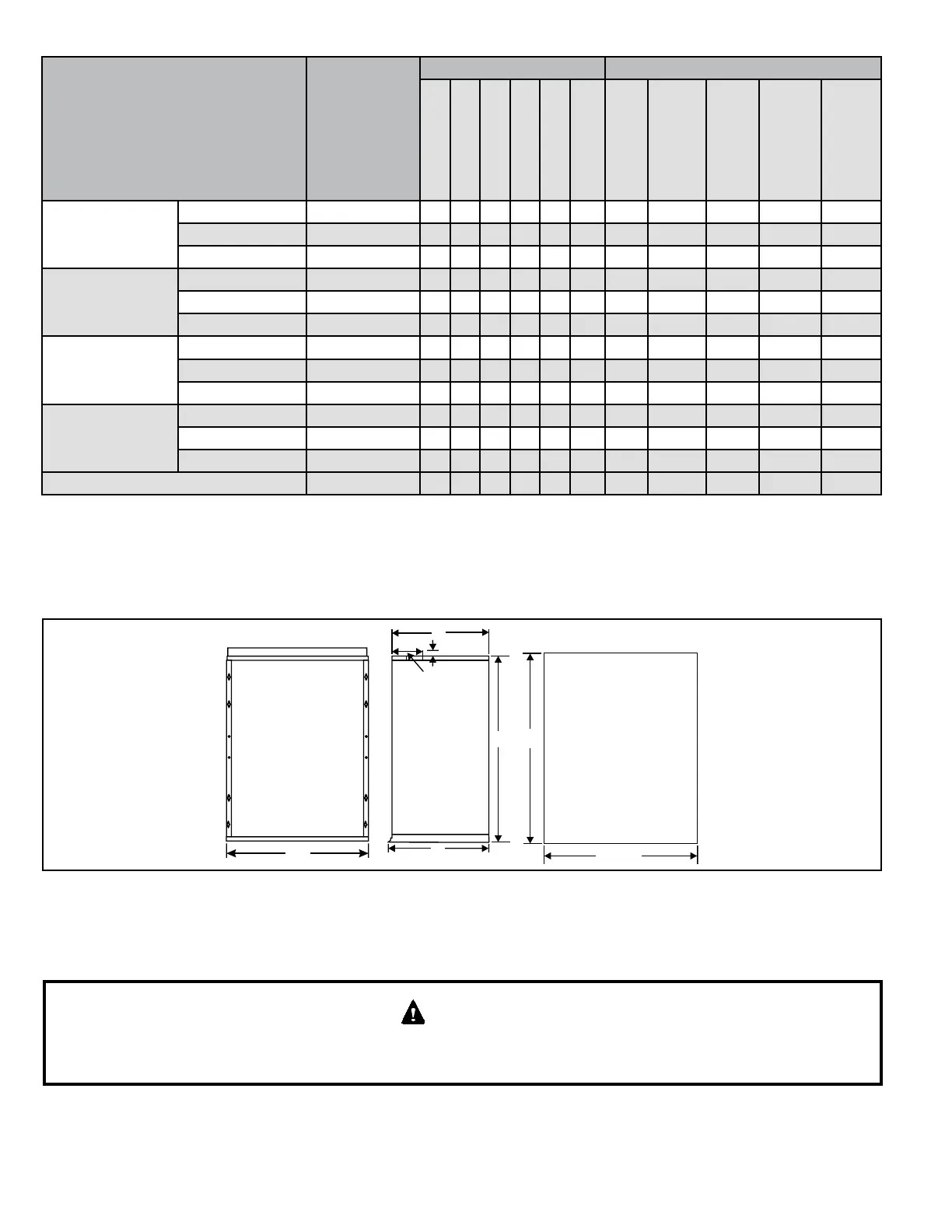

Figure 8.
Wall Sleeve Nomenclature
Magic-Pak Unit Dimensions (in)
*MCE4-11-091*P *MCE4-11-121*P *MCE4-11-181*P *MCE4-11-241*P *MCE4-11-301*P *MCE4-11-361*P
A B C D E
6” Wall Sleeve Kit
for 29” Louver ASLEEVE6-1 • • • • 6 29 16 16-5/8 29-1/8
for 33” Louver ASLEEVE6-2 • • • • • 6 32-3/4 16 16-5/8 32-7/8
for 45” Louver ASLEEVE6-5 • • • • • • 6 45 16 16-5/8 45-1/8
8” Wall Sleeve Kit
for 29” Louver ASLEEVE8-1 • • • • 8 29 16 16-5/8 29-1/8
for 33” Louver ASLEEVE8-2 • • • • • 8 32-3/4 16 16-5/8 32-7/8
for 45” Louver ASLEEVE8-5 • • • • • • 8 45 16 16-5/8 45-1/8
10” Wall Sleeve Kit
for 29” Louver ASLEEVE10-1 • • • • 10 29 16 16-5/8 29-1/8
for 33” Louver ASLEEVE10-2 • • • • • 10 32-3/4 16 16-5/8 32-7/8
for 45” Louver ASLEEVE10-5 • • • • • • 10 45 16 16-5/8 45-1/8
12” Wall Sleeve Kit
for 29” Louver ASLEEVE12-1 • • • • 12 29 16 16-5/8 29-1/8
for 33” Louver ASLEEVE12-2 • • • • • 12 32-3/4 16 16-5/8 32-7/8
for 45” Louver ASLEEVE12-5 • • • • • • 12 45 16 16-5/8 45-1/8
Thru-The-Wall-Sleeve-Kit ASLEEVE-3 • • • N/A 45 16 16-5/8 45-1/8
Table 8. Wall Sleeves
The unit must be installed with approved wall sleeve and grille accessories for safe operation. Improper installations
could result in property damage, personal injury, or death.
WARNING
