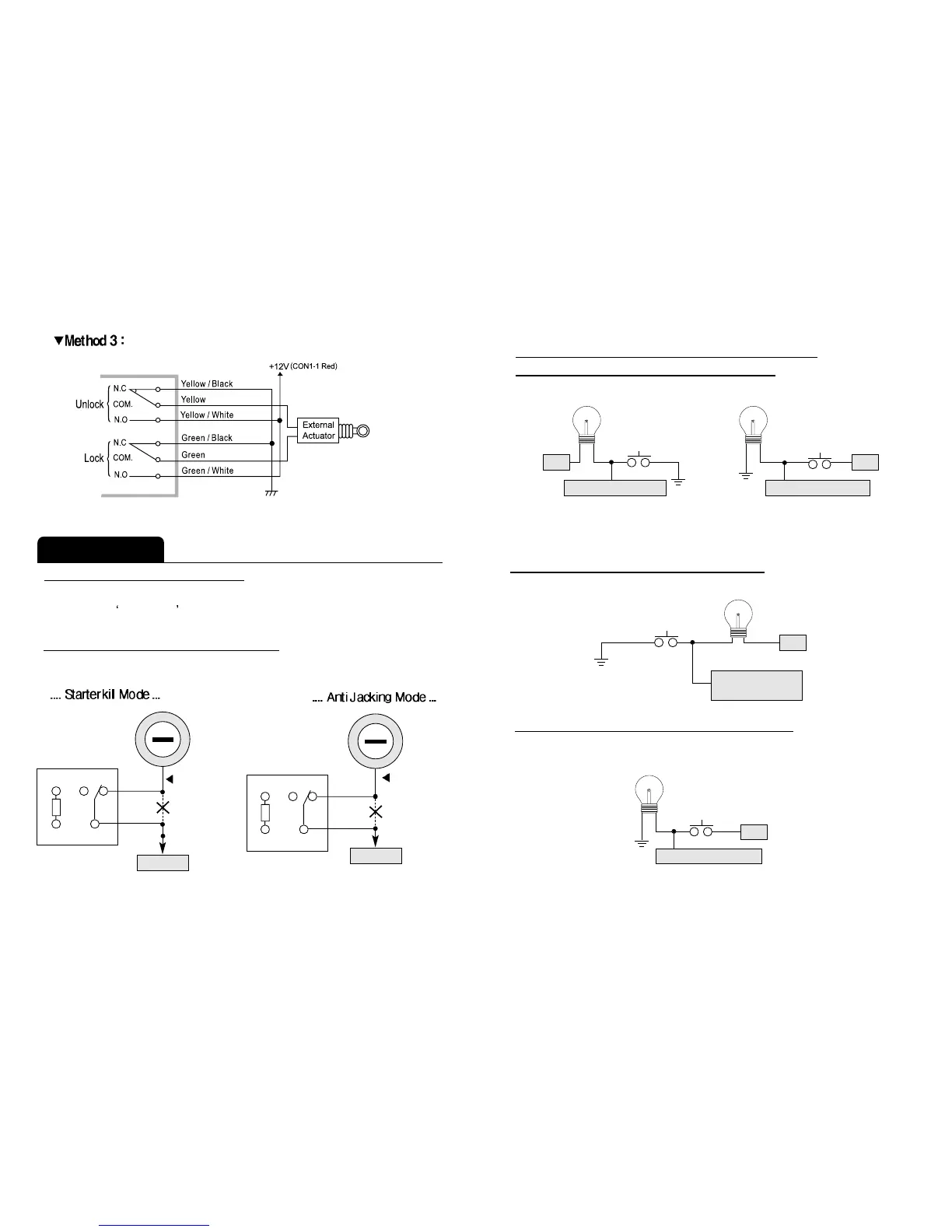

No 2 (Blue) : Negative Starter-Kill Output
Please use the pre-wired starter kill relay.
Page 14
No 1 (Green) : (+12V)Ignition Input
This wire will test (using your digital multi-meter) 0V with the key off, and 12V with
the key in the
ON or RUN position
C0N3
87
Relay
85
86 30
87a
Cut
Starter
Key Cylinder
Starter Wire
OFF
A
C
C
O
N
START
87
Relay
85
86 30
87a
Cut
Engine
Key Cylinder
Ignition Wire
OFF
A
C
C
O
N
START
No 3 (Red/Black) : Negative Trigger Door Open Sense
No 4 (Red) : Positive Trigger Door Open Sense
+12V
CON3-3(-) Door Trigger
Dome Light
Door
Trigger SW
Door
Trigger SW
+12V
CON3-4(+) Door Trigger
Dome Light
Please make sure you have found a correct door sensing wire that monitors all doors.
No 5 (Violet / Black ) : (-)Trunk Trigger Input.
connect this to wire to the trunk lamp wire as shown below
No6 (Light Blue / White) : (+) Brake Trigger Input
Connect this wire to the foot Brake Wire as shown below.
+12V
CON3-6(+)Brake Trigger
Stop Lamp
Foot Brake S/W
CON 3-5
(-)Trunk Trigger Input
Trunk Lamp
+12V
< External Actuator>
External Actuator
