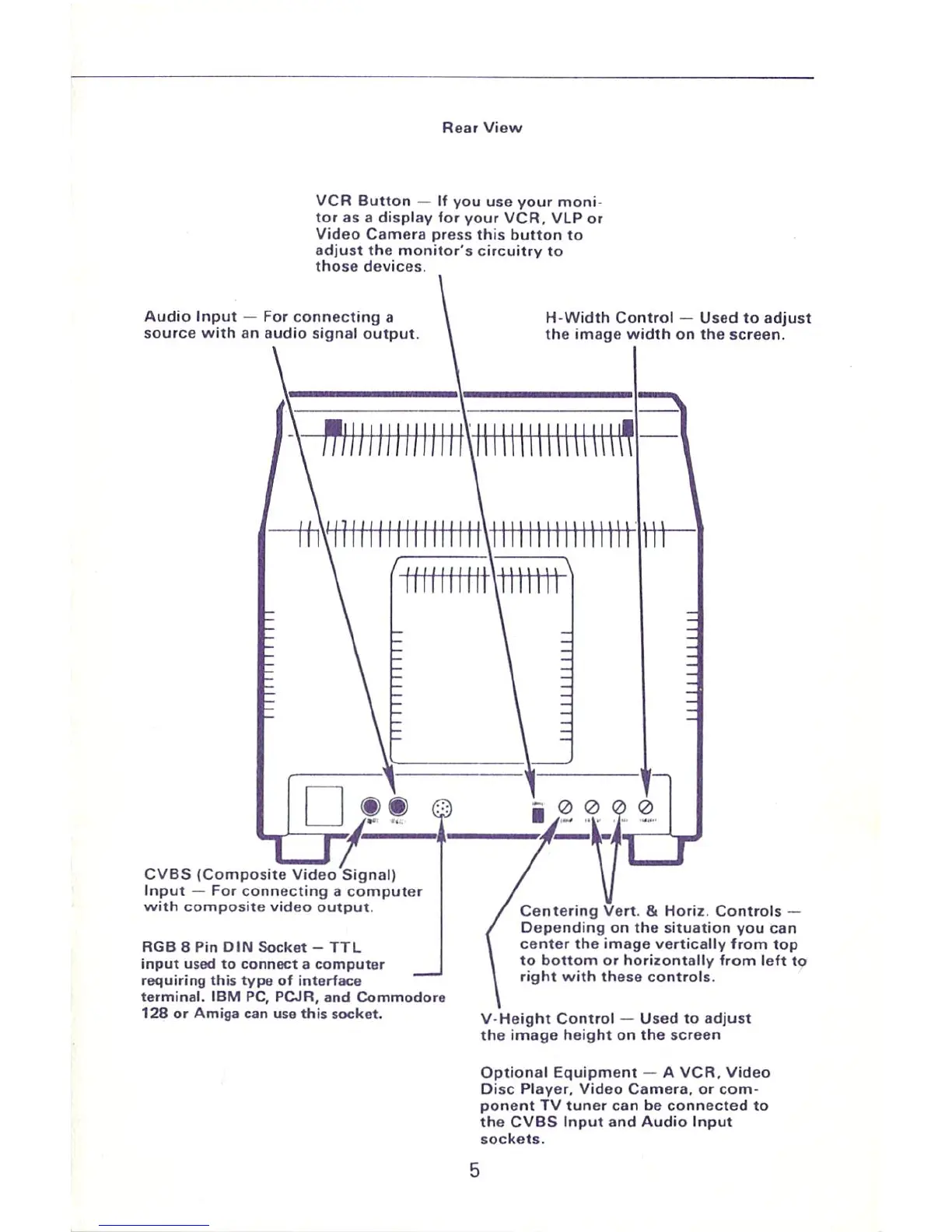

Rear Vi ew
VCR Button - If yo u use your moni -
tor as a display for you r VCR , VLP or
Vid eo Camera press this button to
adjust the monitor's circ uitry to
those devices .
Audio In put - For connecting a
source with an a udi o si gna l output .
H-
Width Control - Used to ad ju st
the image width on th e screen.
mllll lllllllll· 1I111 III III\\\\\~-
--tf1'111111111111111111111 1111111111\1 ttt-
1111111 lit 1111111
",,-",- D --f~- ~ ~- . -: .:'--*
CVBS (Composite Video Signal)
Input - For con n ecting a computer
with composite v id eo output .
RGB 8 Pin DIN Socket - TTL
input u sed to connect a computer
requi rin g this type of interface
terminal. IBM PC, PCJR, and Commodore
128 or Amiga can use this socket.
5
V- Height Control - U sed to adjust
the image height on th e screen
Optional Equipme nt - A VCR . Video
Di sc Player. Video Camera, or com ·
ponent TV tun er ca n be connected to
the CVBS In put a nd Audi o Input
soc kets.
