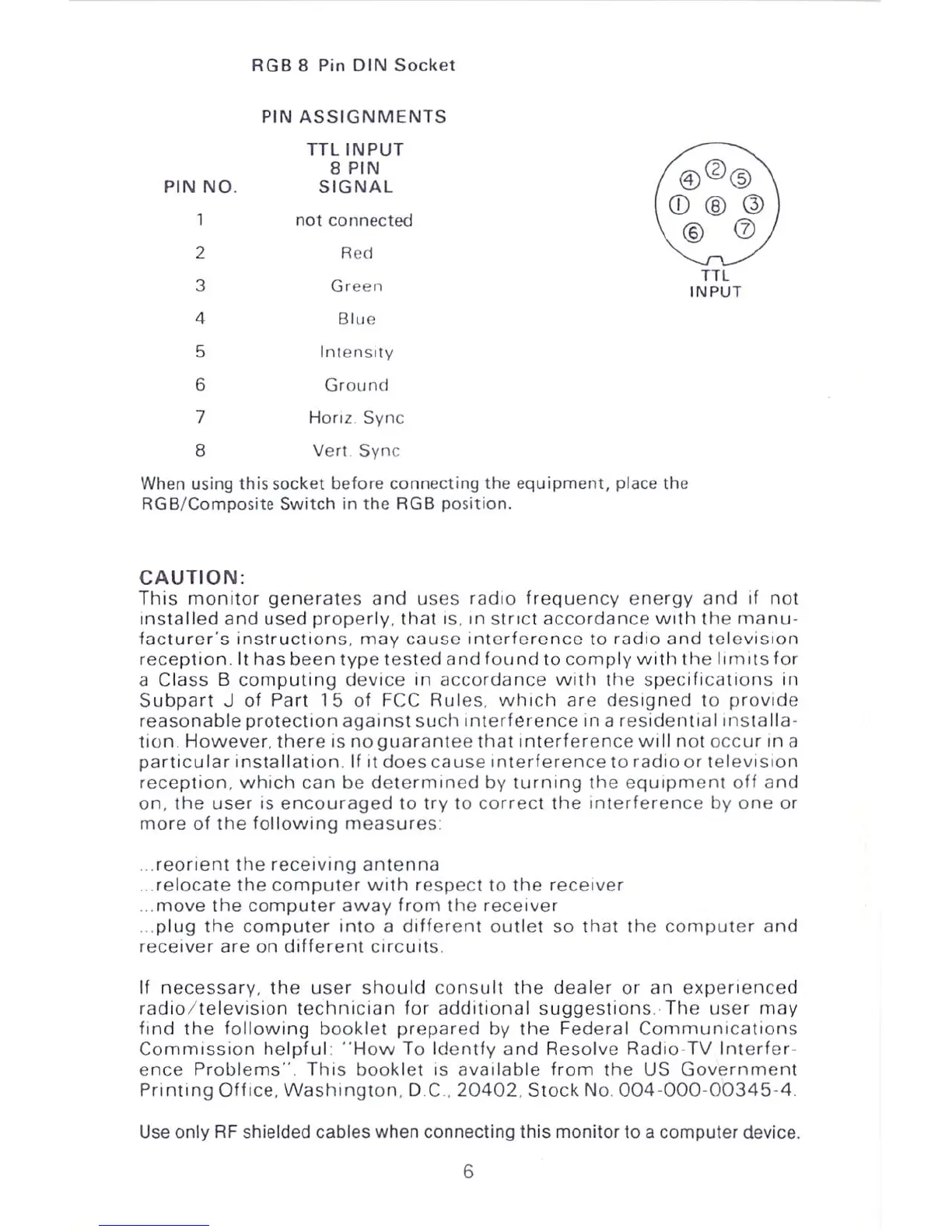

RGB B Pin DIN Socket
PIN ASSIGNMENTS
TTL INPUT
8 PIN
PIN NO. SIGNAL
not connected
2
Red
3
Green
4 Blue
5
IntenSity
6
Ground
7
H afiZ Sync
8
Vert Syn c
When using this socket before connecting the equipment, place the
RGB/ Compositc Switch in the RGB position.
CAUTION :
TTL
I NPUT
This monitor generates and uses radiO frequency energy and If not
Installed and used properly . that IS , In strict accordance wtlh the manu-
facturer's instruct i ons . may cause Interference to radiO and teleVISion
receptIOn . It has been type tested and found to comply with t he lunlts for
a Cl ass B compu tin g deVice 111 accordance with the specif i cations in
Subpart J of Part 15 of FCC Rules . wh i ch are deSigned to prov ide
reasonable protect i on against such II1terference In a r esident l allnstal la-
tlon . H oweve r. there IS no guarantee that Interference wrll not occur In a
particular In stallation . If It does cause Interference to radiO or teleVISion
r
ecep tion . which can be determined by turning the equlprnenl off and
on, the user IS e nc ou r aged to try to correc t the Interference by one or
mo re of the follOWing measures :
· .
reonent the receiving antenna
· . relocate the compu t er with r espect to the receiver
... move the compu t er away from the receiver
· .plug the comp ut er Into a different outlet so that the computer and
receiver are on different Ci rCUIts.
If necessary , th e user sho uld consult the dealer or an expe ri ence d
r
adio / teleVision technician for additIOnal s ugg esti ons . The use r may
find the follOW in g booklet prepared by the F edera l Communicat i ons
Comm i ssion he l pfu l· ··How To I dentfy and Resolve Radio - TV Interfer -
ence Problems" . Thi S booklet IS available fr om the US Government
Printing Office, Washington , D.C , 20402 , Stock No . 004 - 000 - 00345 -4 .
Use only RF shielded cables when connecting this monitor to a computer device.
6
