SETUP
EN
–
9
–
S-VIDEO
OUT
AUD IO
OUT
VIDEO
OUT
COAXIAL
R
L
Y
COMPONENT VIDEO OUT
C
R
/P
R
DIGITAL
AUDIO OUT
C
B
/P
B
HDMI OUT

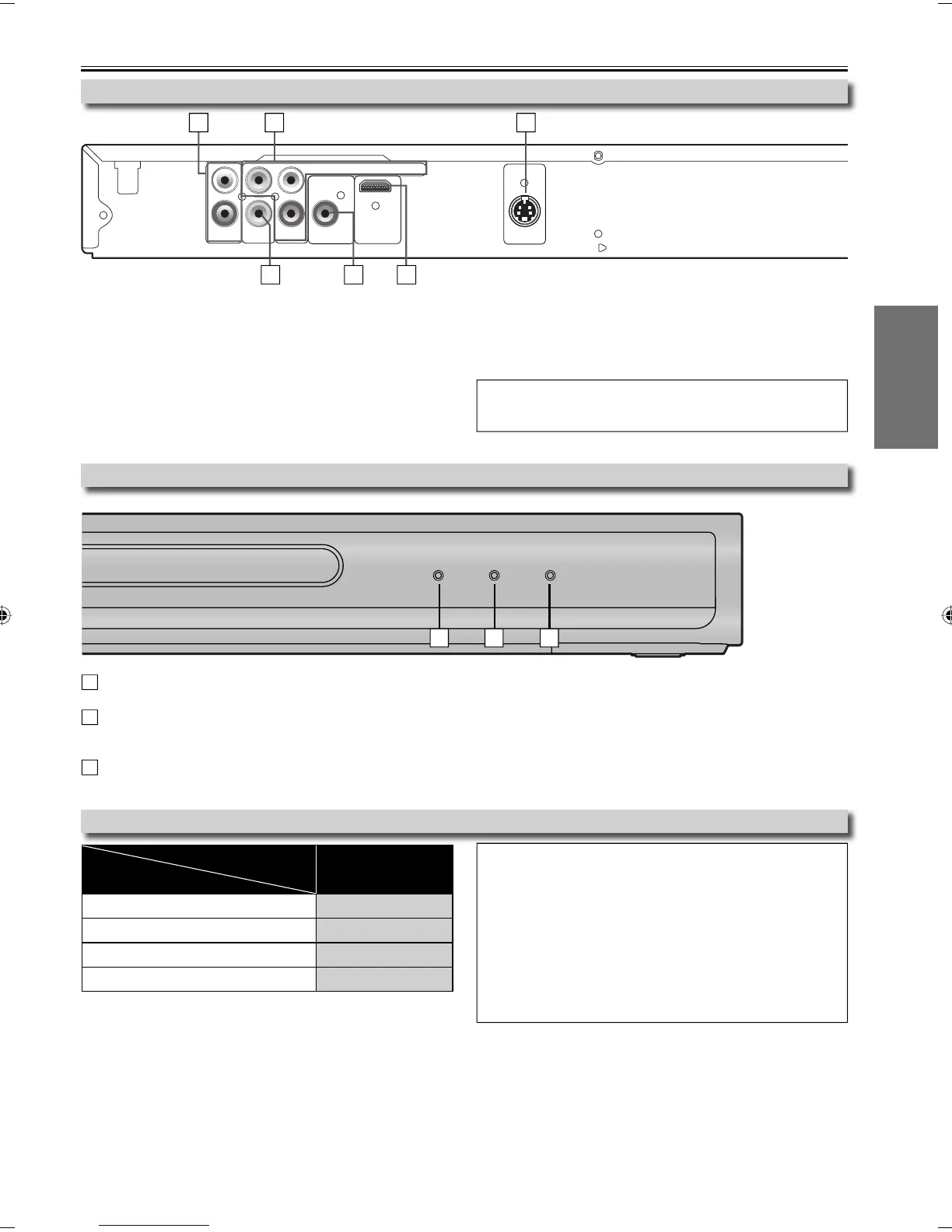

Function Overview
Front Panel Indicator
Rear Terminals
1: AUDIO OUT jacks
Connect an RCA audio cable from here to the audio input jack of
your television or audio device.
2: COMPONENT VIDEO OUT jacks
Connect a component video cable from here to the component
video input jacks of your television.
3: S-VIDEO OUT jack
Connect an S-video cable from here to the S-video input jack of
your television.
4: HDMI OUT jack
Connect an HDMI cable from here to the HDMI compatible port
of a television or other display device.
5: DIGITAL AUDIO OUT COAXIAL jack
Connect a digital audio coaxial cable from here to the digital
audio input jack of your digital audio receiver.
6: VIDEO OUT jack
Connect an RCA video cable from here to the video input jack of
your television.
2 31
56
Note:
•
Please purchase the necessary cables at your local store.
(Refer to pages 6-8.)
4
HDMI Setup
Note:
• Video and audio signals may distorted temporarily when
changing to/from the HDMI output mode.
• Use a display with an HDMI-compatible port.
• You can check the HDMI connection status by pressing
[DISPLAY] during playback with the HDMI output mode (refer
to page 14).
• The HDMI mode that is not supported by display device is
grayed in the settings.
• If the TV is not compatible with newly selected HDMI output
mode, press and hold [PLAY B] on the front of the unit for
more than 5 seconds to reset the setting to default.
POWER PLAY HDMI
1
POWER indicator
Lights up when power is on.
2
PLAY indicator
Lights up when inserted disc is being played back.
Blinks when an unplayable disc is inserted.
3
HDMI indicator
Lights up when there is video signal output from the HDMI OUT jack.
1 2 3
* To complete these settings, refer to pages 18-19.
SETUP > QUICK>
HDMI MODE
480 Progressive
480p
720 Progressive
720p
1080 Interlaced
1080i
1080 Progressive
1080p
Video Output Signal
Setting
E6E75UD_DP170MW8B_EN_v1.indd 9E6E75UD_DP170MW8B_EN_v1.indd 9 2009/02/04 10:45:132009/02/04 10:45:13
