Magnavox MDV 530 VR User Manual

Hookups (cont’d) 9
COAXIAL
S-VIDEO
OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
COMPONENT
VIDEO OUT
L
Y
R
C
B
CR
DVD
AUDIO OUT
VIDEO OUT
AUDIO IN
VIDEO IN
L
R
L
R
DVD/VCR VCR
ANT-IN
ANT-OUT
OUT
IN
75
ANT /
CABLE
TV’s ANTENNA
IN Jack
Cable Box/Satellite Receiver
DVD/VCR
Connections
1
Connect a Cable TV or Satellite signal to the IN
jack on the Cable Box/Satellite Receiver.
2
Use an RF coaxial cable (as the one supplied) to
connect the OUT Jack on the Cable Box/Satellite
Receiver to the ANT-IN (Antenna In) jack on the
DVD/VCR.
3
Use a second RF coaxial cable to connect the ANT-
OUT (Antenna Out) jack on the DVD/VCR to the
TV’s Antenna In jack.
Remember...
There are two ways to connect your Cable Box/Satellite Receiver
to the DVD/VCR. With the connection on this page:
● Select TV channels at the Cable Box/Satellite Receiver, not the
DVD/VCR. To record or view TV channels, follow these steps:
1) Press VCR to put the DVD/VCR in VCR mode. The green
VCR light will appear on the front of the DVD/VCR.
2) Press SKIP i /CHo or SKIP j /CHp to set the
DVD/VCR to the Cable Box/Satellite Receiver output channel
(03 or 04).
3) Set the TV to the DVD/VCR’s output channel (03 or 04).
The DVD/VCR’s output channel is channel 3 when the
DVD/VCR is new. To change it from 3 to 4, press and hold the
(VCR) PLAY B button on the DVD/VCR for 3-5 seconds dur-
ing tape playback. For more details, see step 4 on page eight.
4) Select the channel you want to view/record at the Cable
Box/Satellite Receiver.
● You may not view a channel other than the one you are
recording.
● You can only program a timer recording for one channel at a
time. Set your Cable Box/Satellite Receiver to the channel you
want to record. When you enter the channel you want to
record in a timer recording, select channel 03 or 04 (the Cable
Box/Satellite Receiver output channel). (This is step 7 on page
38.) Leave the Cable Box/Satellite Receiver on for a timer
recording.
1
2
3
Cable
Signal
RF coaxial cable
RF coaxial cable

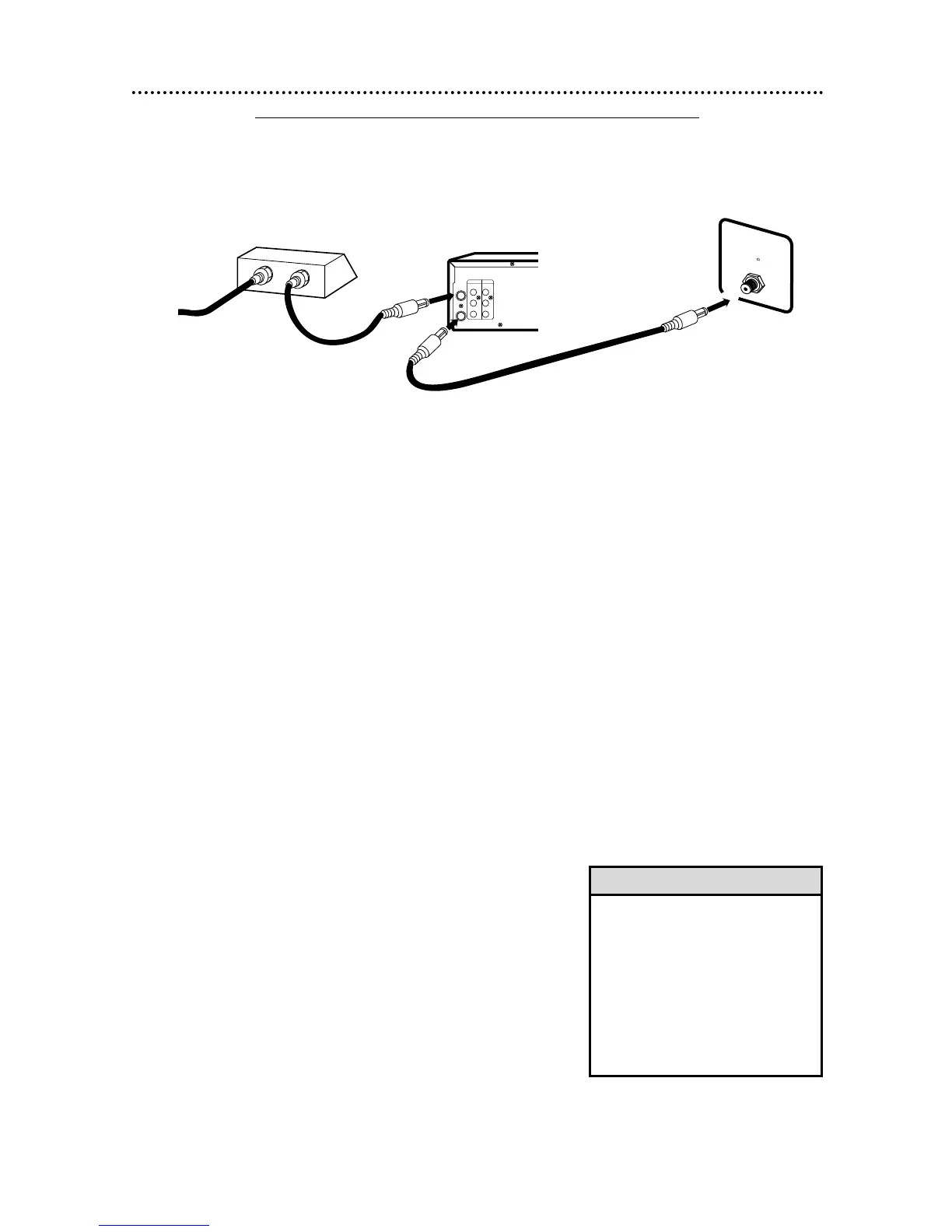

DVD/VCR to Cable Box or Satellite Receiver and TV
Using only basic RF coaxial cables
This connection will let you use the features of both the VCR and the DVD Player.
• If your Cable Box or Satellite
Receiver has Audio and Video Out
jacks, use audio and video cables
to connect them to the VCR
AUDIO IN and VIDEO IN jacks on
the rear of the DVD/VCR. You will
not need the RF coaxial cable con-
nection between the Cable
Box/Satellite Receiver and the
DVD/VCR as described at step 2.
Helpful Hint
