Magnavox MWD7006 Service Manual

1-5-2 E6C70DC
.
(S-1)
[1] Top Case

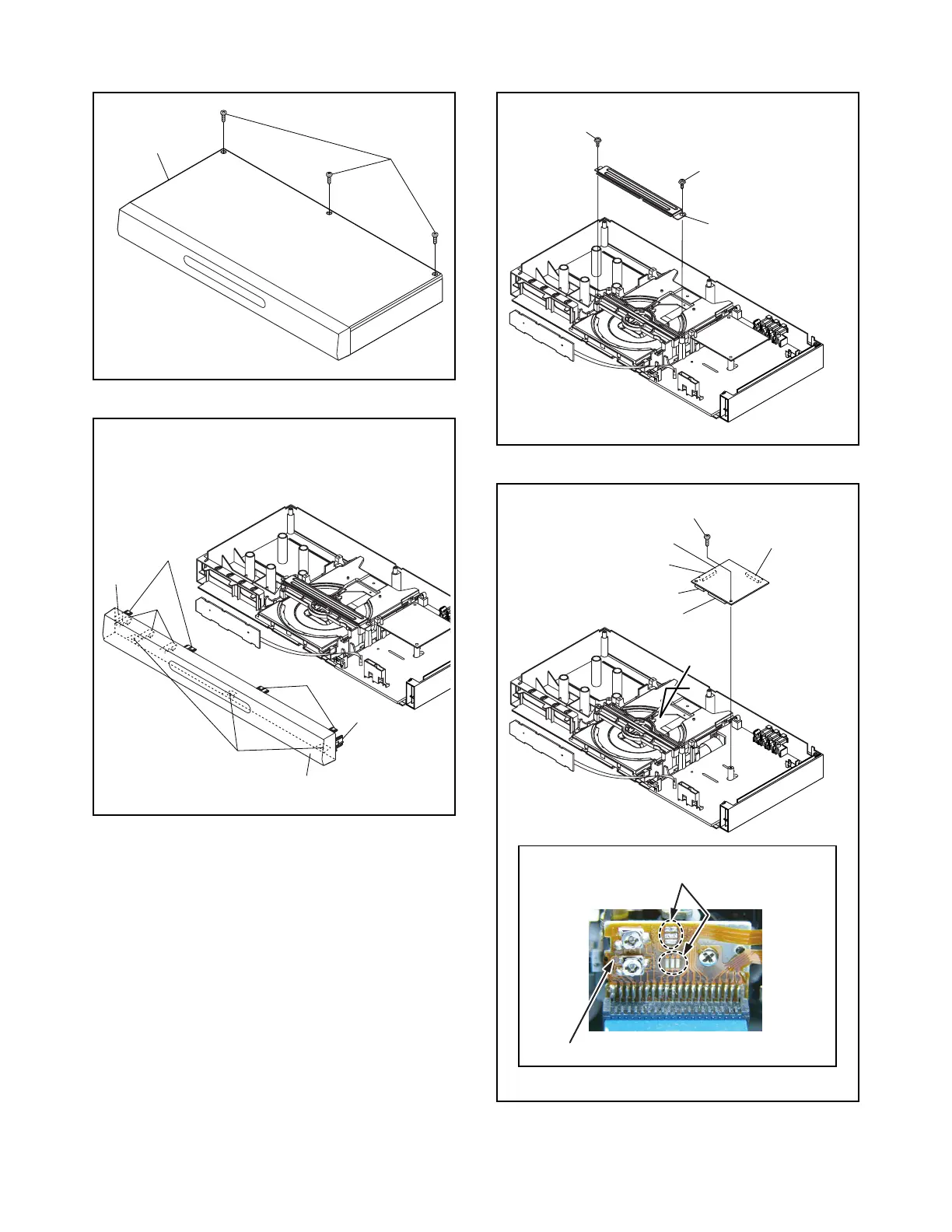

Fig. D1
[2] Front Assembly
(L-3)
(L-4)
(L-1)
(L-1)
Fig. D2
(L-2)
(L-2)
Fig. D3
(S-2)
(S-2)
[3] Reinforce Plate
[4] DVD Main CBA Unit
(S-3)
CN201
CN301
CN401
CN601
A
Fig. D4
View for A
Short the three short lands by soldering.
(Either of two places.)
FPC Cable
