Magnum Dimensions ME-AGS-S

Questions and Answers

J
Joseph GarciaAug 2, 2025
What to do if the READY light is flashing on my Magnum Dimensions ME-AGS-S Controller?
- D
  Dominique OsborneAug 3, 2025
  If the READY light is flashing, it means the remote control switch is either not sensed or not plugged into the REMOTE port. First, check the communication cable connection to both the remote and the controller. If that doesn't work, try using a different 6-conductor telephone cable. After these steps, switch the controller OFF and then ENABLE to reset.
P
Patricia TurnerAug 12, 2025
How to fix a red STATUS light (Gen Fault) on a Magnum Dimensions Controller?
- J
  James RodriguezAug 13, 2025
  If the STATUS light is ON and red, indicating a Gen Fault, verify the generator to AGS start wiring and the B+ wiring from the generator to the AGS. Measure the DC voltage from Terminal 2 (+) to Terminal 4 (–); it should be 10-40 volts only when the generator is running. Finally, switch the controller OFF, then ENABLE it to reset.
J
Joanna HollowayAug 22, 2025
Why is the READY light OFF on my Magnum Dimensions ME-AGS-S?
- Z
  Zachary DeanAug 23, 2025
  If the READY light is OFF, it indicates that there is no power to the AGS. This can be due to incorrect DC voltage to Terminals 3 (+) & 4 (–). To resolve this, check the battery voltage, the fuse, and the DC wiring.

Summary

Product Safety Information and Warnings

Important Product Safety Instructions

Essential safety instructions that must be followed during installation and operation of the product.

Safety Symbols and Alerts Explained

Defines safety symbols (Warning, Caution, Info) and lists critical product safety alerts for users.

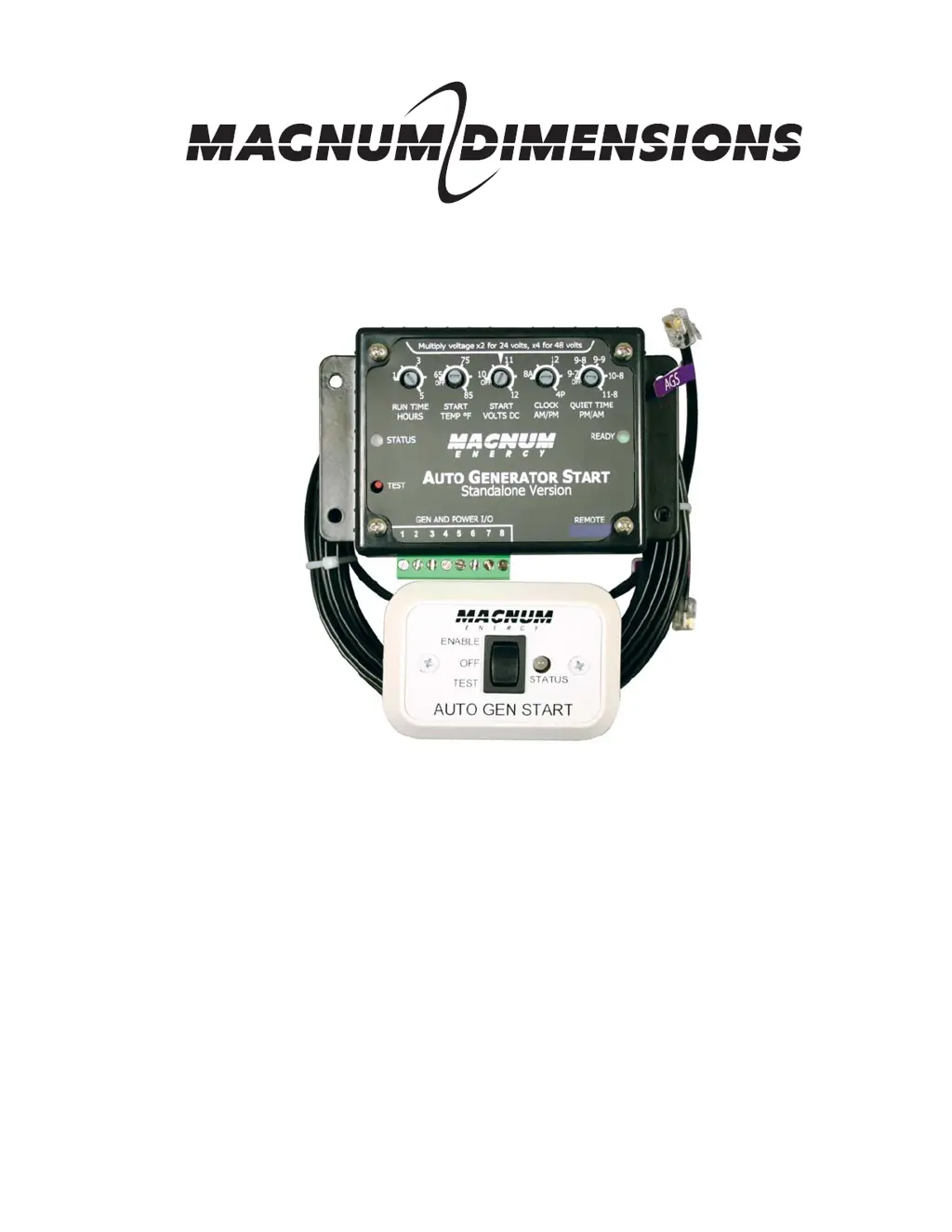

ME-AGS-S Automatic Generator Start Overview

ME-AGS-S Components and Features

Details the main components and features of the ME-AGS-S, including the remote switch, controller, and communication cable.

AGS Remote Switch Functionality

Explains the selector switch and status indicator on the AGS remote switch for system control and monitoring.

AGS Controller Components and Adjustments

Describes the AGS controller, its adjustments for run time, temperature, voltage, and its indicators.

Communication Cable Specifications

Details the six-conductor, 25-foot RJ12 cable used for connecting the remote switch to the AGS controller.

ME-AGS-S Installation Guide

Installation Requirements and Safety Precautions

Outlines necessary generator features, wiring considerations, and critical safety warnings before starting installation.

Required Components and Tools

Lists the supplied components and other necessary equipment and tools required for installing the ME-AGS-S.

Mounting Procedures for Controller and Remote Switch

Provides instructions on how to properly mount both the AGS controller and the remote switch unit.

Connecting the Communication Cable

Details the process of connecting the communication cable between the AGS controller and the remote switch.

ME-AGS-S Terminal Block Wiring

Explains the wiring connections to the controller's terminal block for power, run sense, and start/stop circuits.

Generator Run Sense Connection Options

Provides alternative methods for establishing a generator run sense signal if the generator lacks a dedicated output.

Gen Start;Stop Connections and Relay Usage

Details how to wire the generator's start/stop circuits using the AGS controller's internal relays.

Common Generator Wiring Diagram Types

Illustrates common generator starting/run/stop circuit types: two-wire, three-wire momentary, and three-wire maintain.

Installation Warning Label Placement

Instructs on placing the electrical hazard warning label in a visible location for servicing personnel.

ME-AGS-S Configuration and Settings

Internal Settings: DC Voltage and GEN TYPE

Explains how to set the input DC voltage and select the generator type using internal jumpers and DIP switches.

External Settings: Run Time, Temperature, and Voltage

Details the adjustable settings for generator run time, start temperature, start voltage, clock, and quiet time.

AGS Functional Testing Procedures

Guides through power-up and generator wiring tests to confirm the AGS system is functioning correctly.

ME-AGS-S System Operation

AGS Controller LED Indicators Explained

Describes the meaning of the STATUS and READY LED indicators on the AGS controller for system status.

Remote Switch Controls and Operation

Explains the functions of the ENABLE, OFF, and TEST positions of the remote switch and its status indicator.

Automatic Generator Start;Stop Logic

Details how the AGS system automatically starts and stops the generator based on voltage and temperature conditions.

Operational Notes and Best Practices

Provides operational notes, including manual stop, fault handling, storage recommendations, and temperature start usage.

Troubleshooting the ME-AGS-S System

Troubleshooting Guide by LED Indication

A guide to diagnosing issues based on the STATUS and READY LED indicators and their corresponding symptoms.

Appendix: Accessories and Related Products

Optional Pigtail Adapters for ME-AGS-S

Describes optional ME-PT1 and ME-PT2 pigtail adapters for external generator control.

Additional Magnum Equipment;Accessories

Lists other Magnum equipment like MS Series Inverters and MMP Enclosures, and remote control displays.

Warranty and Service Information

Limited Warranty Terms and Conditions

Details the limited warranty period, coverage, exclusions, and conditions for the ME-AGS-S product.

How to Obtain Repair Service

Provides contact information and procedures for returning the product for warranty service or repair.
