31
LOADER INSTALLATION

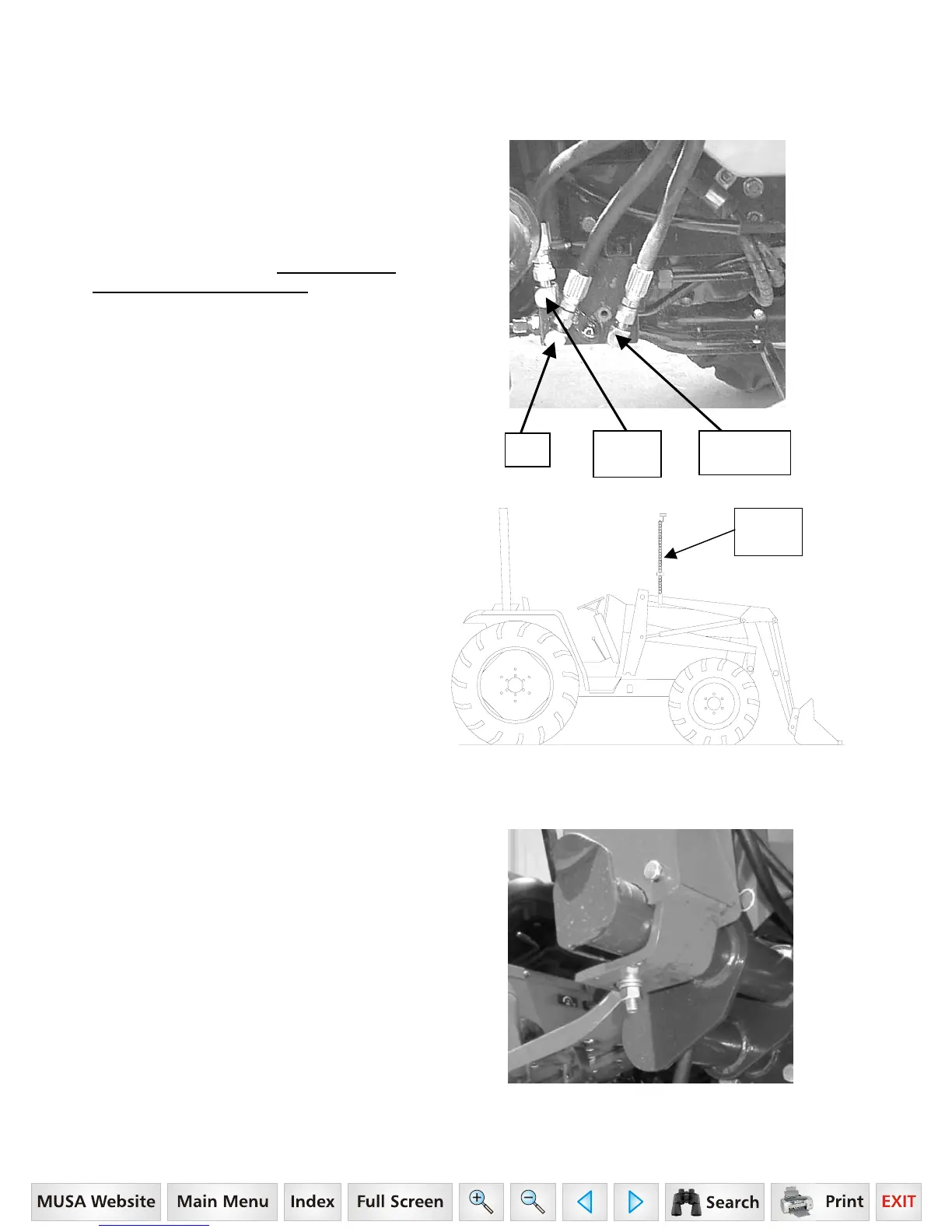

STEP 13 (cont.) When installing loader
with belly mower or backhoe orient 90°
adapters as shown in figure to the right.
CAUTION: Lift and support all loader
components safely.
STEP 14. Using a hoist, raise the rear of
the loader and drive tractor forward
between loader posts as shown in the
illustration. Line up cross tube with front
mount and drive slowly forward until cross
tube is seated in front mount as shown.
STEP 15. Lower loader onto Rear Mount
Assemblies. Attach Hinge Assemblies to
Sub Frame with 1/2” x 4” Clevis Pin and
secure with 3/32” Hitch Pin Clip on each
side. Secure subframe by locking hinge
assemblies around Rear Mount Tube using
1/2” x 4” carriage bolt grade 5, 1/2” Flat
Washer, 1/2” Lock Washer and 1/2” Hex
Nut on each side.
Hoist
Chain
PB
Out
Tan
k
In
Pressure
16 Series, Model - 2816
