Mahindra 2615 User Manual

Form 1503-1067 Page 8 of 11

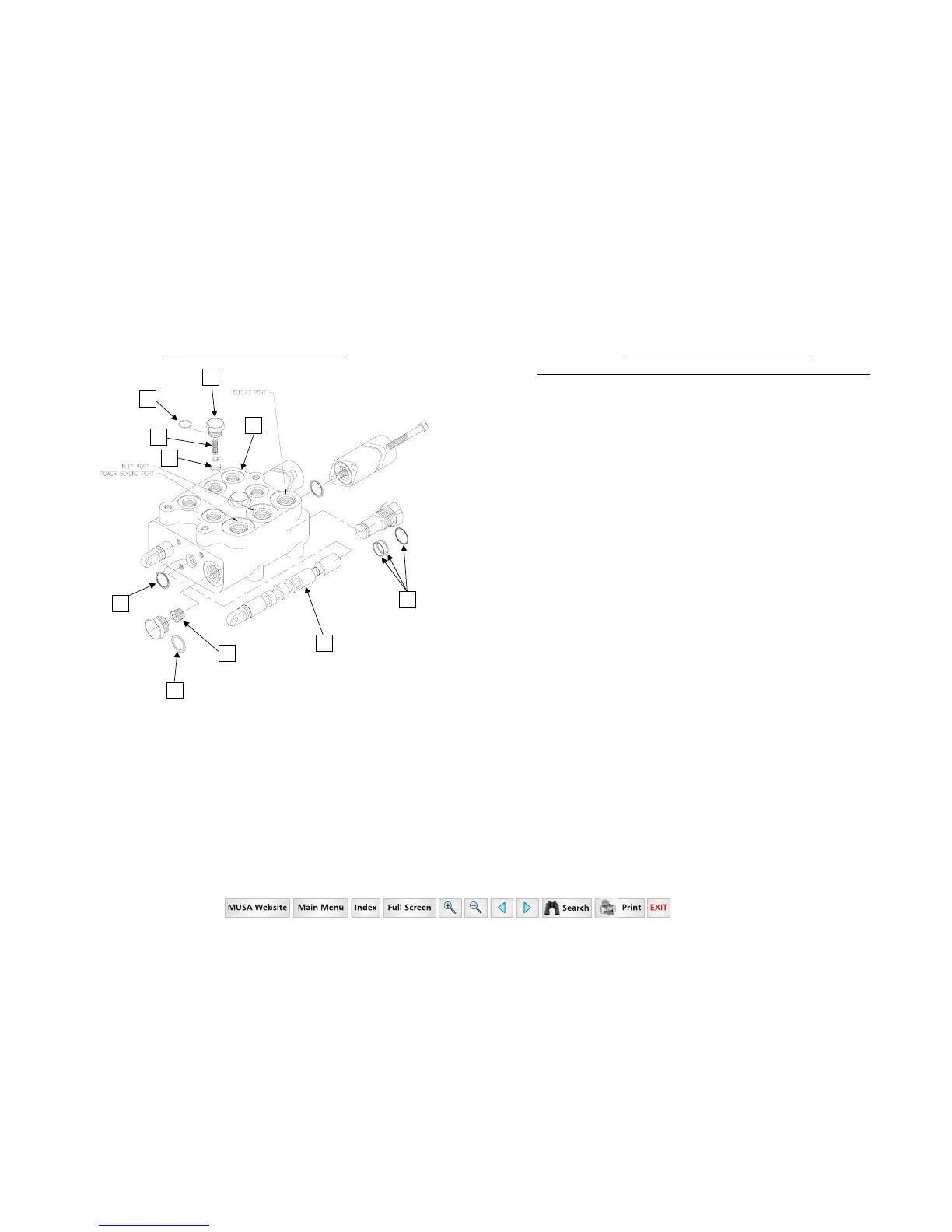

HYDRAULIC VALVE ASSEMBLY
4
3
3
3
7
6
1
2
3
5
Form 1503-1067 Page 9 of 11
HYDRAULIC VALVE ASSEMBLY
Reference Description Part No. Qty.
...................................... Hydraulic Valve (complete) .......................................0580-6091 ............. 1
1 .................................... Valve Body ..................................................................Not Serviceable ... 1
2 .................................... Spool............................................................................Not Serviceable ... 2
3 .................................... Seal Kit ........................................................................0580-6096 ............. 1
4 .................................... Load Check Poppet....................................................0580-6097 .............2
5 .................................... Load Check Spring.....................................................0580-6098 ............. 2
6 .................................... Load Check Plug ........................................................0580-6099 ............. 2
7 .................................... Pipe Plug .....................................................................0580-6100 ............. 1
