33
LOADER INSTALLATION

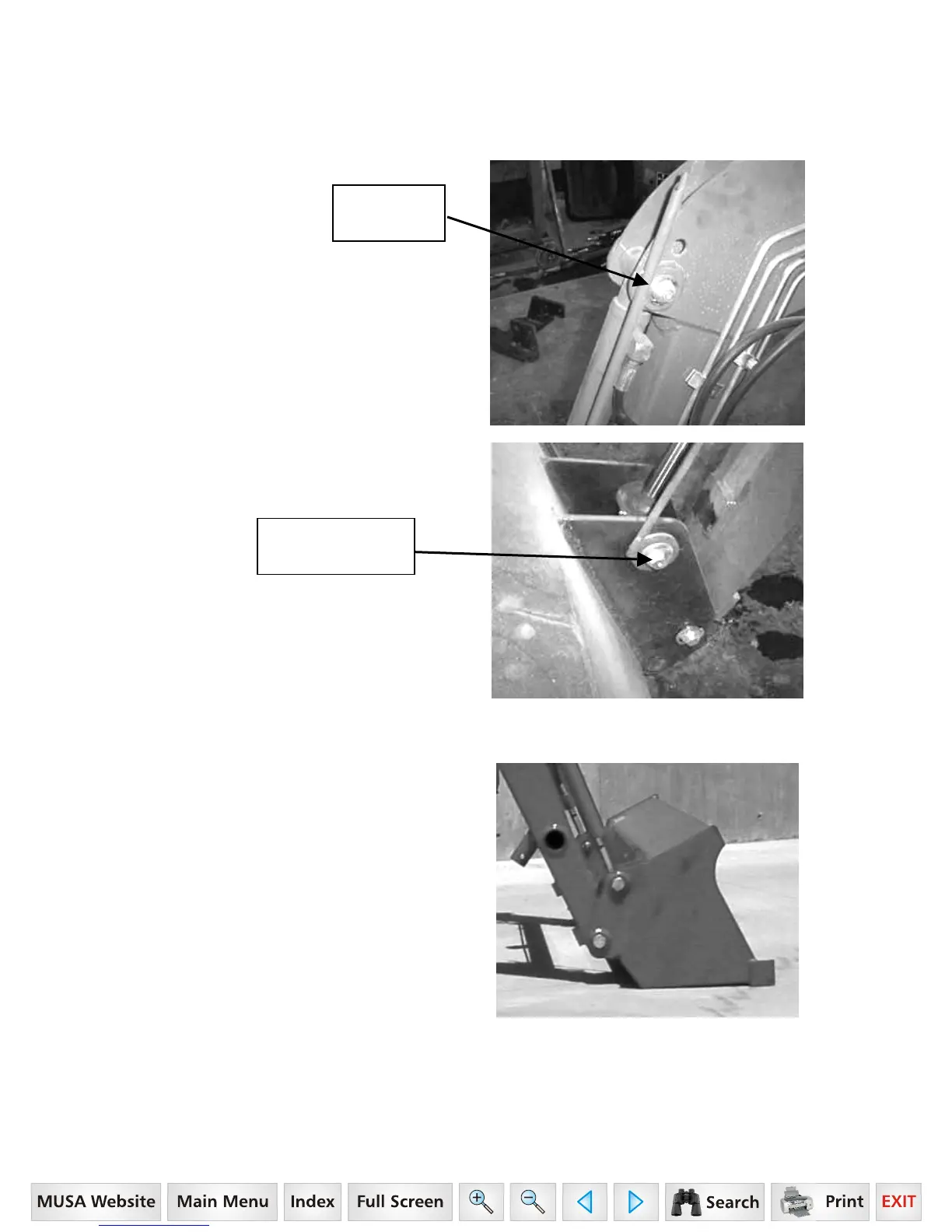

STEP 18. Remove pivot pin clip from the
bucket cylinder base end, right hand side of
loader. Install bucket level indicator tube on
pivot pin and secure with Pivot Pin Clip.
STEP 19. Secure bucket to loader and
cylinders using four (4) pivot pins and pivot
pin clips, two (2) each side. The longest
pivot pin should be used on the Bucket
Cylinder, Rod End, right side, and should
also be used to attach the Bucket Level
Indicator Rod. (Slip BLI Rod into BLI Tube
before attaching with Pivot Pin.)
Attach BLI
Tube here
Attach BLI Rod
here (see step 19)
16 Series, Model - 2816
