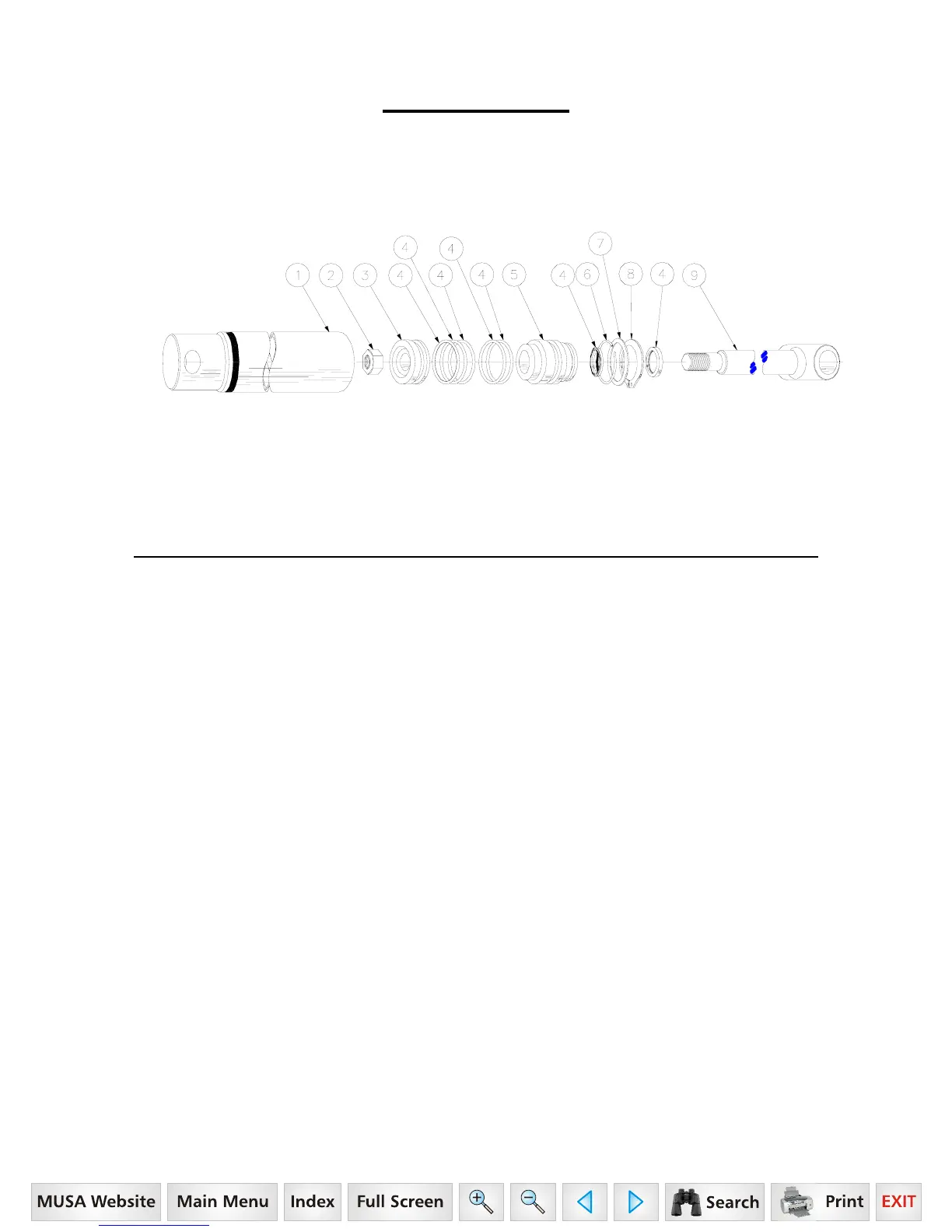

TILT CYLINDER

3150-2055

Reference ................. Description .........................................................Part No. Qty.

1..............................Tube Assembly............................................0100-2043 ........1

2..............................Nut ................................................................0530-2000 ........1

3..............................Piston ...........................................................0405-2001 ........1

4..............................Seal Kit .........................................................0590-2016 ........1

5..............................Head..............................................................0330-2012 ........1

6..............................Retaining Ring .............................................0560-2002 ........1

7..............................Spacer ..........................................................0541-2002 ........1

8..............................Retaining Ring .............................................0560-2005 ........1

9..............................Rod Assembly .............................................0200-2045 ........1

16 Series, Model - 2816
