Form 1503-1067 Page 2 of 11
LOADER INSTALLATION
STEP 1. Install Valve Stand to Right Hand
Rear Mount as shown using one (1) 1/2” x 1
1/2” bolt, 1/2” flat washer, 1/2” lock washer
and 1/2” hex nut in slot and one (1) 1/2” x 1
1/2” bolt, 1/2” lock washer and 1/2” hex nut
in round hole.
Form 1503-1067 Page 3 of 11
STEP 2. Install Hydraulic Control Valve to
Valve Stand using one (1) 5/16” x 3/4” bolt
and 5/16” lock washer in top left hole and
two (2) 5/16” x 3/4” bolt, 5/16” lock washer,
and 5/16” flat washer in bottom left slot and
right slot.
Attach Single Lever Control (SLC) w/ regen
decal to back of valve stand as shown
insuring float position detail is on top.
STEP 3.

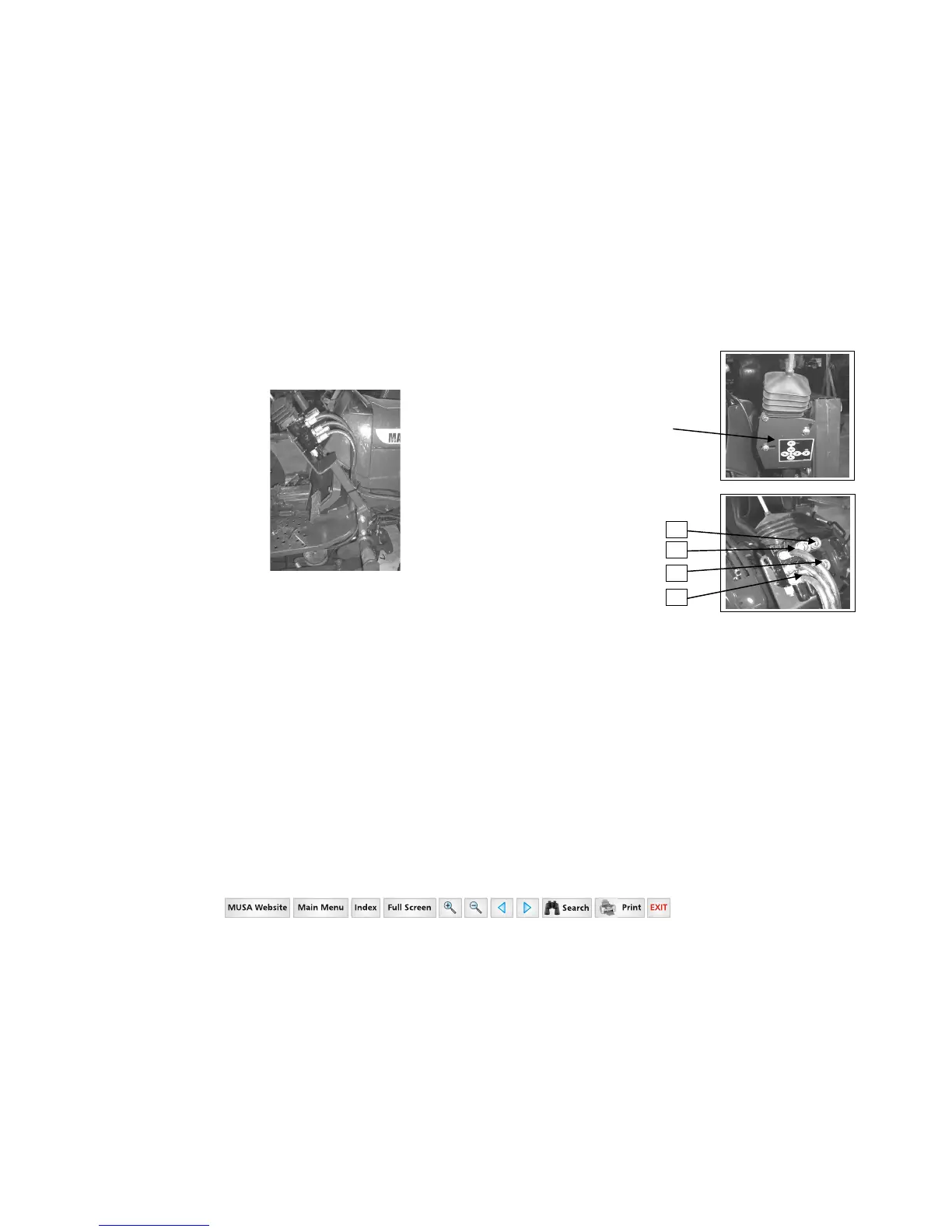

Attach a female quick coupler to
all four hydraulic ports indicated in the
figure. Mark the quick couplers with
colored nylon ties as shown:
1. Red - Bucket Cyl. Rod End
2. Yellow – Bucket Cylinder Base End
3. Blue – Lift Cylinder Rod End
4. Green – Lift Cyl. Base End.
3
2
4
1
16 Series, Model - 2816
To Next Page
