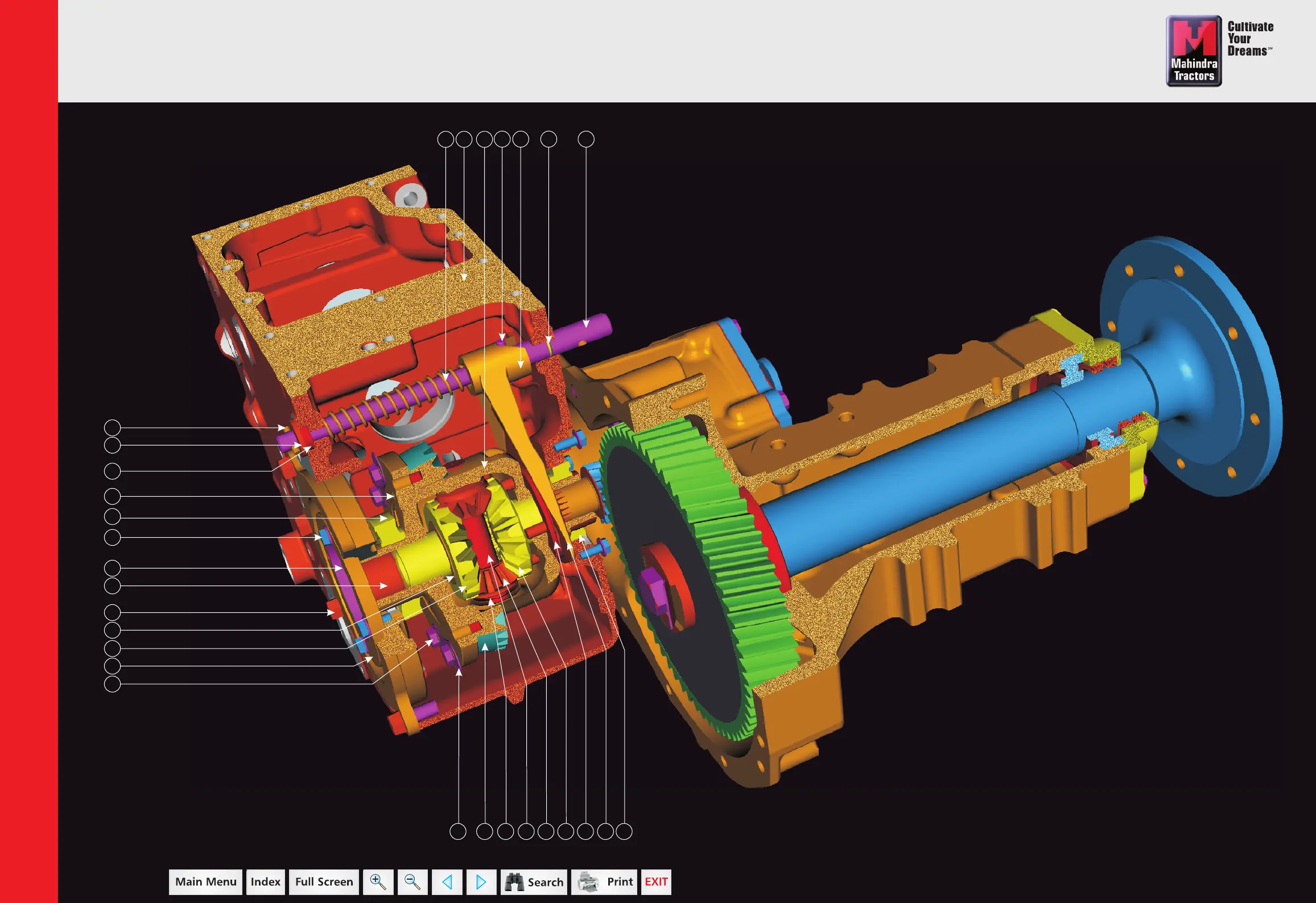

Mahindra 4035 Service Manual

Differential Assembly & Rear Axle
8
9
11
12
14
15
16
17
18
19
13
20
21 22 2423 25 26 27
7 5
4 3
2
1
6
28
10
29
1. Shaft Diffential Fork
2. O’ring
3. Fork Differential
4. Spring Dowel
5. Differential Case
6. Transmission Case
7. Spring Differential Lock
8. Spring Dowel
9. Washer Differential Lock
10. Oil Seal
11. Pin Differential
12. Flange Bolt
13. Taper Roller Bearing
14. Retainer Differential Carrier
15. Bush Bull Pinion Shaft Support
16. Bolt
17. Washer Thrust Bevel Gear
18. Bevel Gear Differential LH
19. Carrier Differential LH
20. Bolt
21. Lock Plate Differential Case
22. Gear Crown Wheel
23. Washer Thrust Bowl Pinion
24. Shaft Differential Pinion
25. Pinion Differential
26. Bevel Gear Differential RH
27. Coupling Differential Lock
28. Shims
29. Taper Roller Bearing

Mahindra 4035 Specifications

General

Engine Power	35 HP
Engine Type	Diesel
Transmission	8 Forward + 2 Reverse
Hydraulic System	Open center
PTO Power	30 HP
Drive Type	4WD
No. of Cylinders	3
Steering	Power Steering
Wheelbase	73.2 inches
Ground Clearance	13.4 inches
Fuel Capacity	45 liters
Displacement	2.5 liters
Brakes	Oil Immersed
Fuel Tank Capacity	45 liters
