19

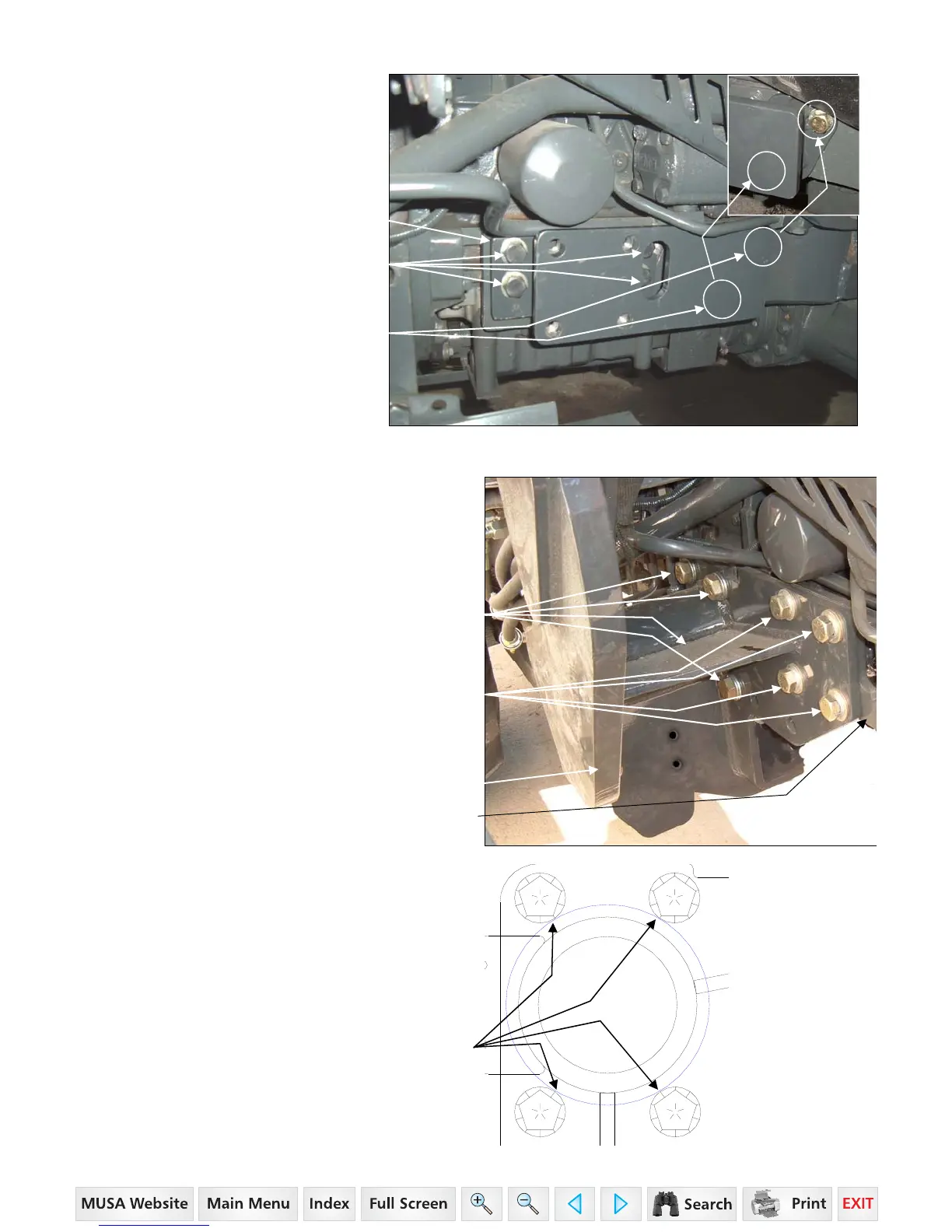

3.2.4. Install RH engine spacer assembly
using two 14-2.0 x 35 mm bolts and 9/16”
disc-lock washers in two holes closest to
the front of tractor. Install four 14-1.5 x 65
mm bolts and 9/16” disc-lock washers in
remaining four holes.
RH engine spacer assembly
14-1.5 x 65mm Gr. 10.9 bolts,
9/16” Disc-Lock washers, 4 places
14-2.0 x 35mm Gr. 10.9 bolts,
9/16” Disc-Lock washers (Not visible
in photo)
These bolts must be torqued to 107 ft.
lbs. before continuing loader installation.
3.2.5. Using a hoist, install the right hand center
bracket to the tractor clutch housing using four ¾”-10 x
1.75” Gr. 8 bolts and ¾” disc-lock washers.
Then install four 5/8”-12 x 2.0” bolts and 5/8” disc-lock
washers in front four holes of center bracket and into
RH engine spacer assembly.
¾”-10 x 1.75” Gr. 8 bolts,
¾” Disc-Lock washers,
4 places
5/8”-12 x 2.0” Gr. 8.8 bolts,
5/8” Disc-Lock washers,
4 places
Right hand center bracket
RH Engine Spacer assembly
3.2.6. After installation check to make sure ¾” disc-lock
washers in center clutch housing areas are resting
against bracket material completely and there is no
weld interference with these disc-lock washers.
Make sure ¾” Disc-Lock Washers do not interfere
with weld in these areas
35 Series 4WD, Model - 3535 & 4035 Loader June’08
