9. OPTIONAL GRILL GUARD
9.1. INSTALLATION INSTRUCTIONS

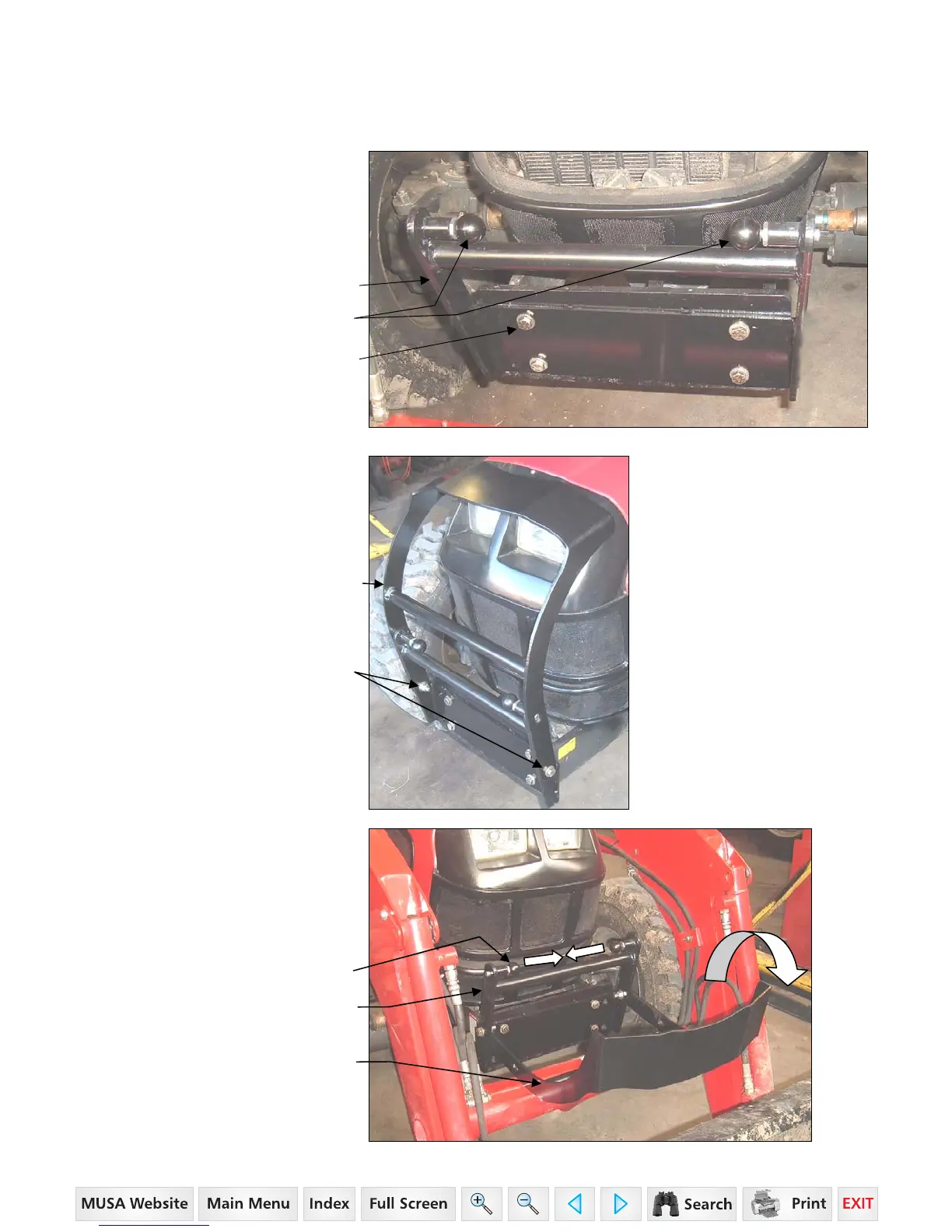

9.1.1. Install attachment assembly to
tractor using hardware indicated.
Install locking spring pull pins into
attachment assemby as shown.
Attachment Assembly
Locking Spring Pull Pins
Hex Head Cap Screw 5/8”-12 x 2.0”
Gr. 8,
Hardened Flatwasher 5/8”,
Stover Hex Locknut 5/8”-12,
4 places each
9.1.2. Install headlight protector
assembly to attachment assembly
using hardware indicated.
Headlight Protector Assembly
Hex Head Cap Screw ½”-13 x 2.0”,
Hardened Flatwasher ½” on both
sides, Stover Hex Locknut ½”-13,
2 places.
(IMPORTANT: These bolts must
not be over tightened or Headlight
Protector will be difficult to rotate)
9.1.3. To open hood, pull and twist
release pins then rotate headlight
protector assembly toward front of
tractor.
Pull and twist Release Pins
Attachment Assembly
Rotate Headlight Protector
Assembly
