Mahindra ML 120 4035 User Manual

21

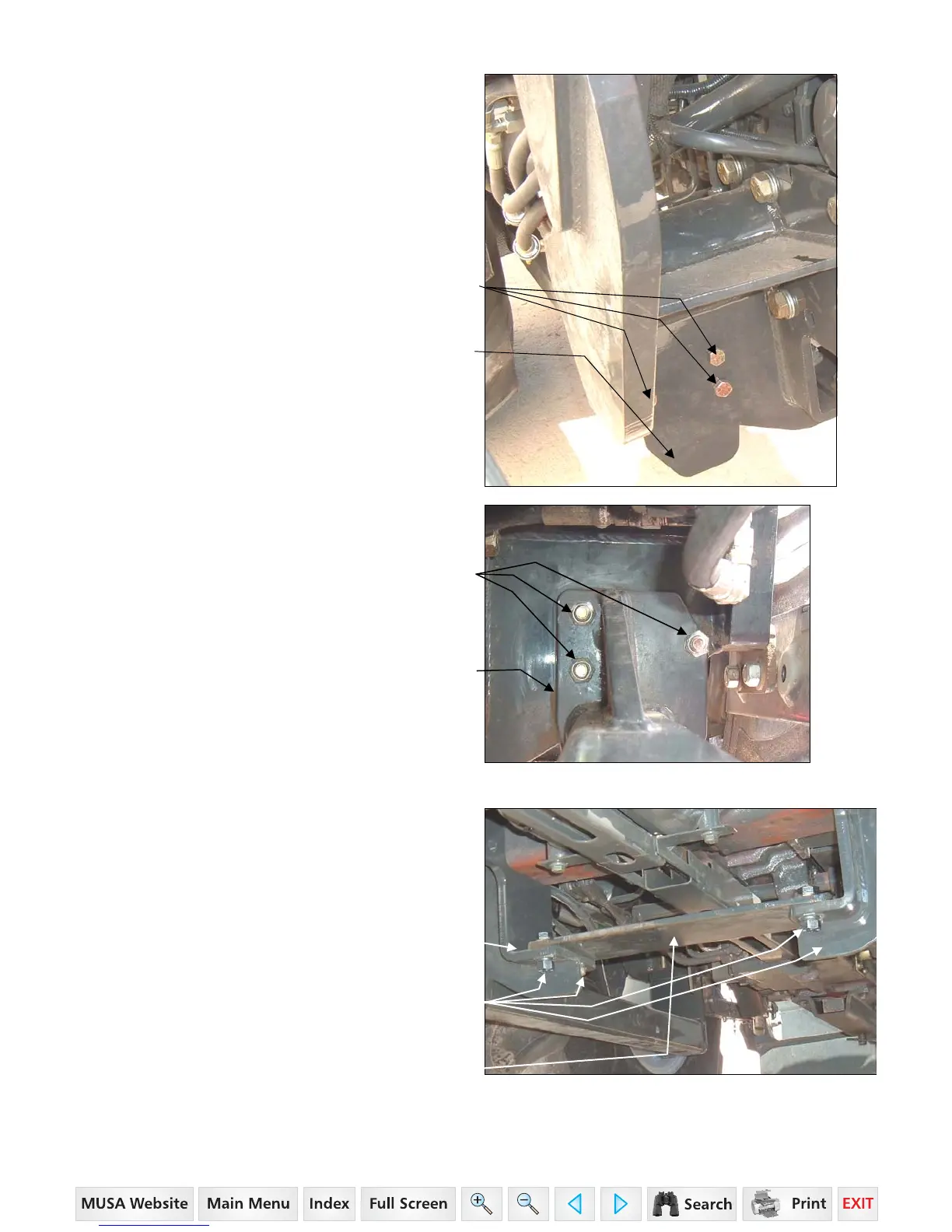

3.2.7. Install right hand side rear rail to RH center
bracket using three ½”-13 x 2.0” Gr. 5 bolts and ½”-13
stover hex locknuts
½”-13 x 2.0” Gr. 5 bolts,
½”-13 Stover Hex Locknuts,
3 places
RH Rear Rail
½”-13 x 2.0” Gr. 5 bolts,
½”-13 Stover Hex Locknuts,
3 places
RH Rear Rail
3.2.7. Repeat steps 3.2.3. through 3.2.7. to install LH center bracket.
3.2.10. After left hand side engine spacer assembly,
center bracket and rear rail are installed, install cross
member to right hand and left hand center brackets as
shown using four 5/8”-12 x 2.0” Gr. 8 bolts, 5/8”
hardened flatwashers and 5/8” stover hex locknuts.
Right hand center bracket
5/8” x 2” Gr. 8 bolts,
5/8” Hardened Flatwashers on slotted holes,
5/8” Stover Hex Locknuts,
4 places
Crossmember
CRITICAL: Torque mounting kit hardware in the sequence as shown on next page to prevent stress in
tractor casting due to installation of loader brackets.
Front view
Rear view
35 Series 4WD, Model - 3535 & 4035 Loader June’08
