Mahindra ML 120 4035 User Manual

32
3.4.15. Install cables to valve.
1.9. Turn cable adjuster onto
threads until flush with
valve surface. Make sure
handle remains in
neutral position.
1.10. Tighten jam nut against
cable adjuster to lock in
position.
1.11. Slide dual flange over
cable adjusters and bolt
to valve housing.
1.12. Tighten metric bolts
supplied in adapter kit to
securely hold dual flange
against valve surface.
CAUTION: Over-
tightening will distort
flange.

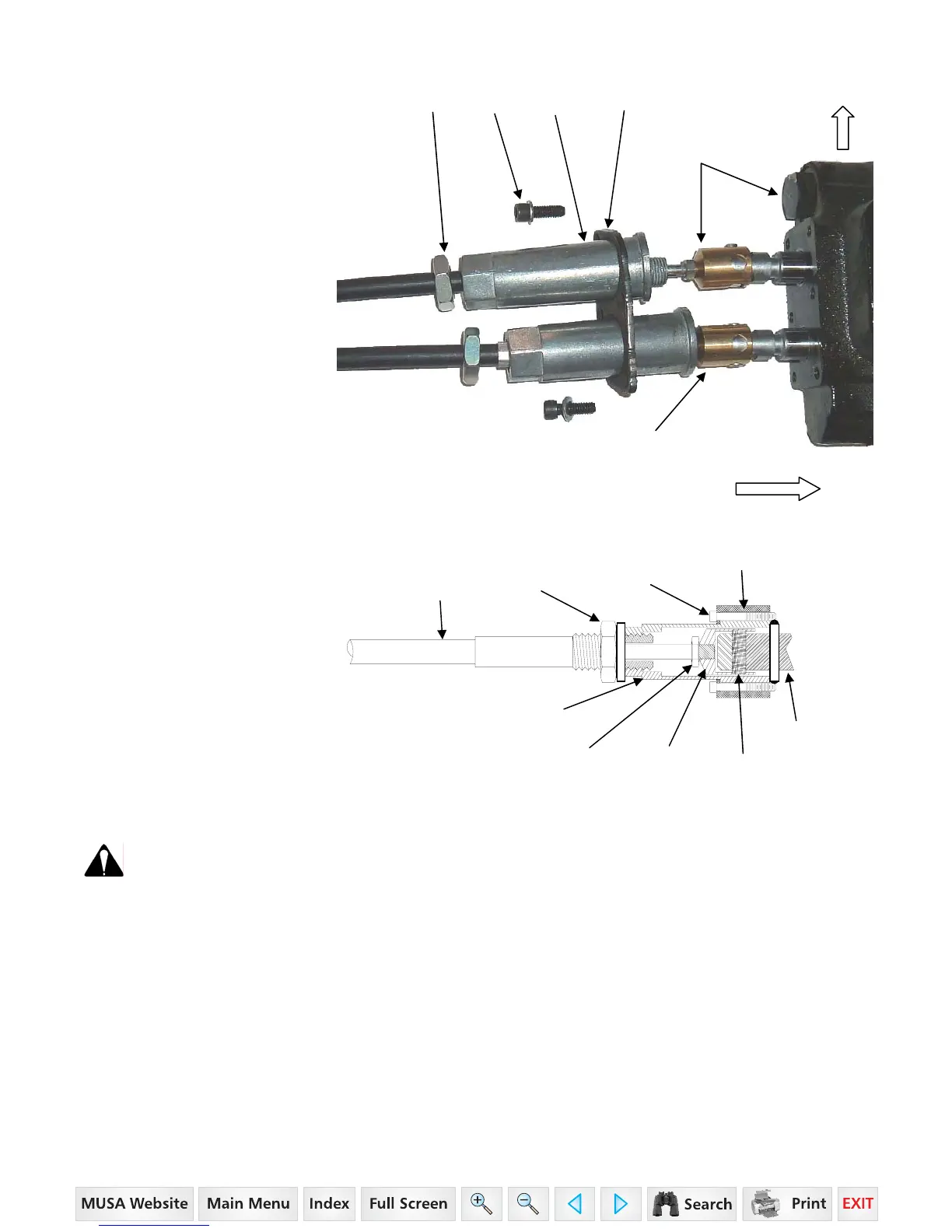

See fig. 1
1.12.1. Cable adjuster
1.12.2. Jam nut
1.12.3. Dual Flange
1.12.4. Cable.
1.12.5. Jam nut
1.12.6. Spool adapter
1.12.7. Valve spool end
1.12.8. Pin
1.12.9. Metric bolt.
3.4.16. Support the loader by using a hoist. Install loader to mounting brackets previously installed on tractor.
Refer to Section 8 — Mounting the Loader, Pages 52 to 55.
CAUTION: Lift and support all loader components safely.
1.10
1.9
1.11
1.12.2
1.12.9
1.12.1
1.12.5
1.12.6
1.12.8
1.12.7
1.12.4
1.12.3
1.12
Fig. 1
Lift Spool closest
to plu
g
Up
Bucket Spool
Front of Tractor
35 Series 4WD, Model - 3535 & 4035 Loader June’08
