53

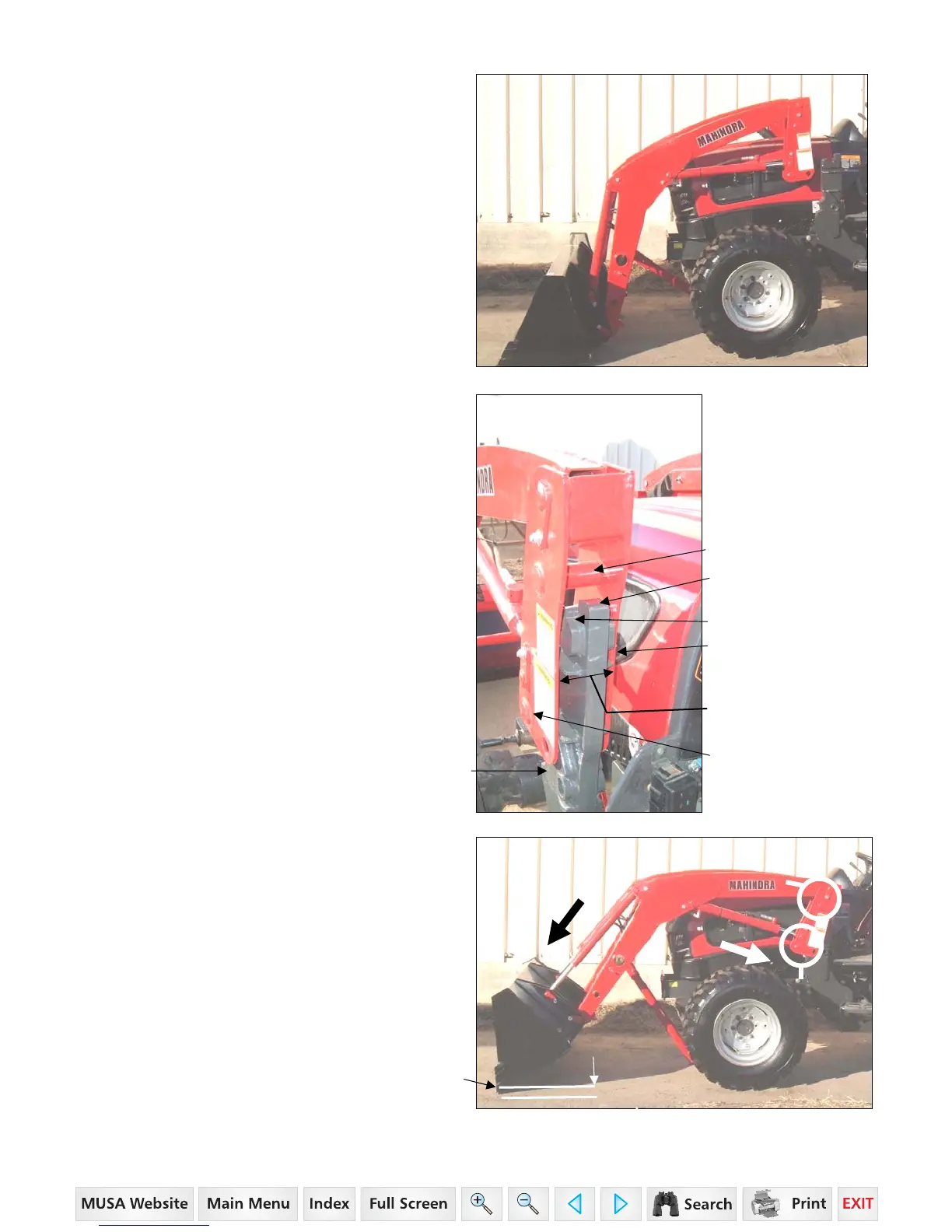

8.1.5. Position lift cylinders so they are fully retracted.
Then drive tractor forward. Use tilt cylinders to
position height of bearing box top pin making sure all
loader components clear all tractor components.
8.1.6. Align bearing box top pin with tower top receiver
guide post, both sides. Make sure loader is centered
right to left on both towers.
Tower
Bearing box top pin
Tower top receiver
guide post
Tower top receiver
Bearing box
Bearing box
centered
right to left
on tower
Bearing box bottom
pin
8.1.7. Extend lift cylinders (A) slowly making sure
loader seats completely in tower top receivers (B) and
tower bottom receivers (C).
8.1.8. Extend tilt cylinders (D) until bucket is
approximately 1/2" off ground.
½” off of the ground
A
B
C
D
35 Series 4WD, Model - 3535 & 4035 Loader June’08
