32
LOADER INSTALLATION

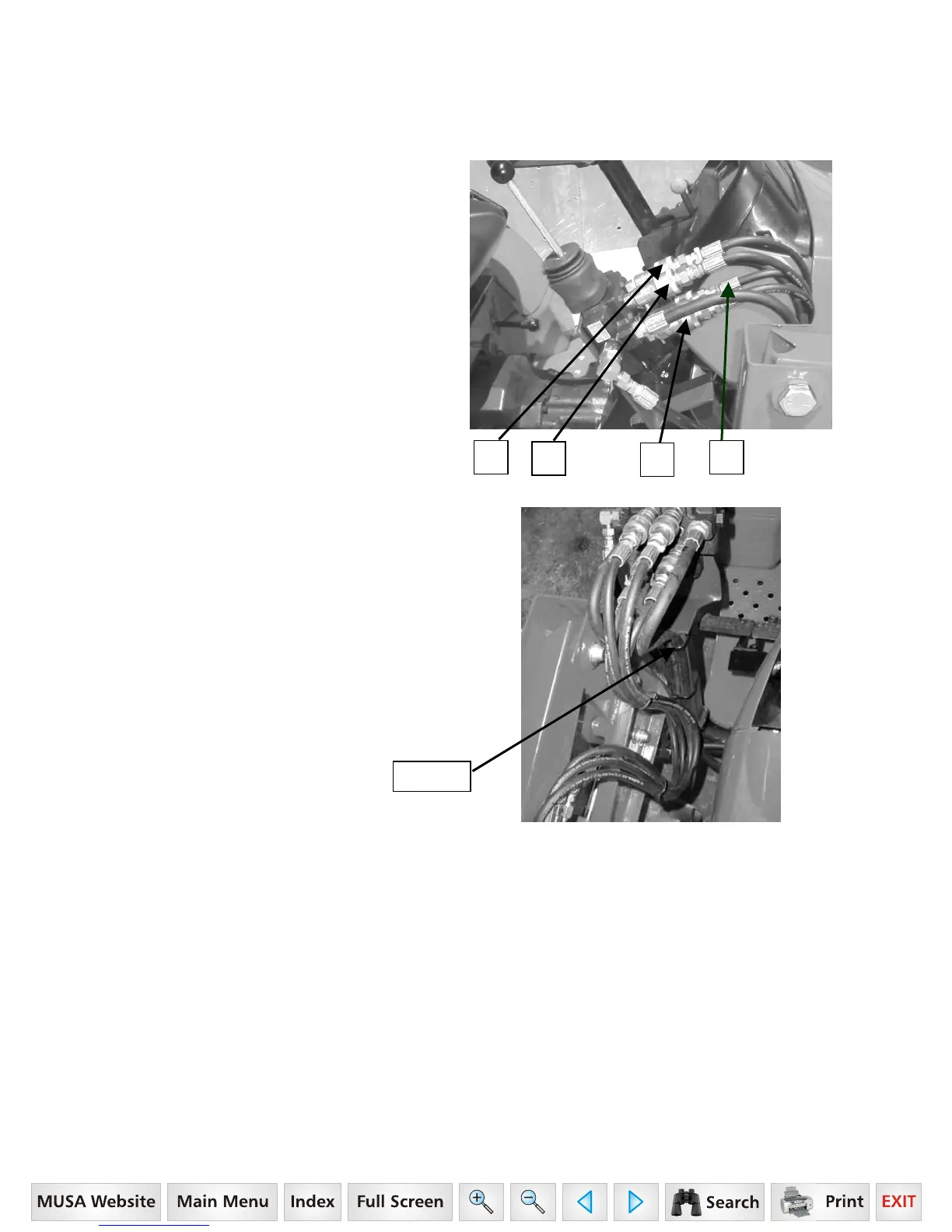

STEP 16. Connect hydraulic hoses to
quick couplers as shown.
1. Bucket cylinder base end (Yellow).
2. Bucket cylinder rod end (Red).
3. Lift cylinder rod end (Blue).
4. Lift cylinder base end (Green).
(Colors should match)
STEP 17. Position Hydraulic Hoses
insuring they do not come in contact with
loader frame. Secure hoses in location
shown using plastic tie strap supplied in
loader kit.
1 2
3
4
Secure
16 Series, Model - 2816
