Mahindra ML106 Series - Cylinders Diagrams

Form 1503-1041A Page 2 of 7

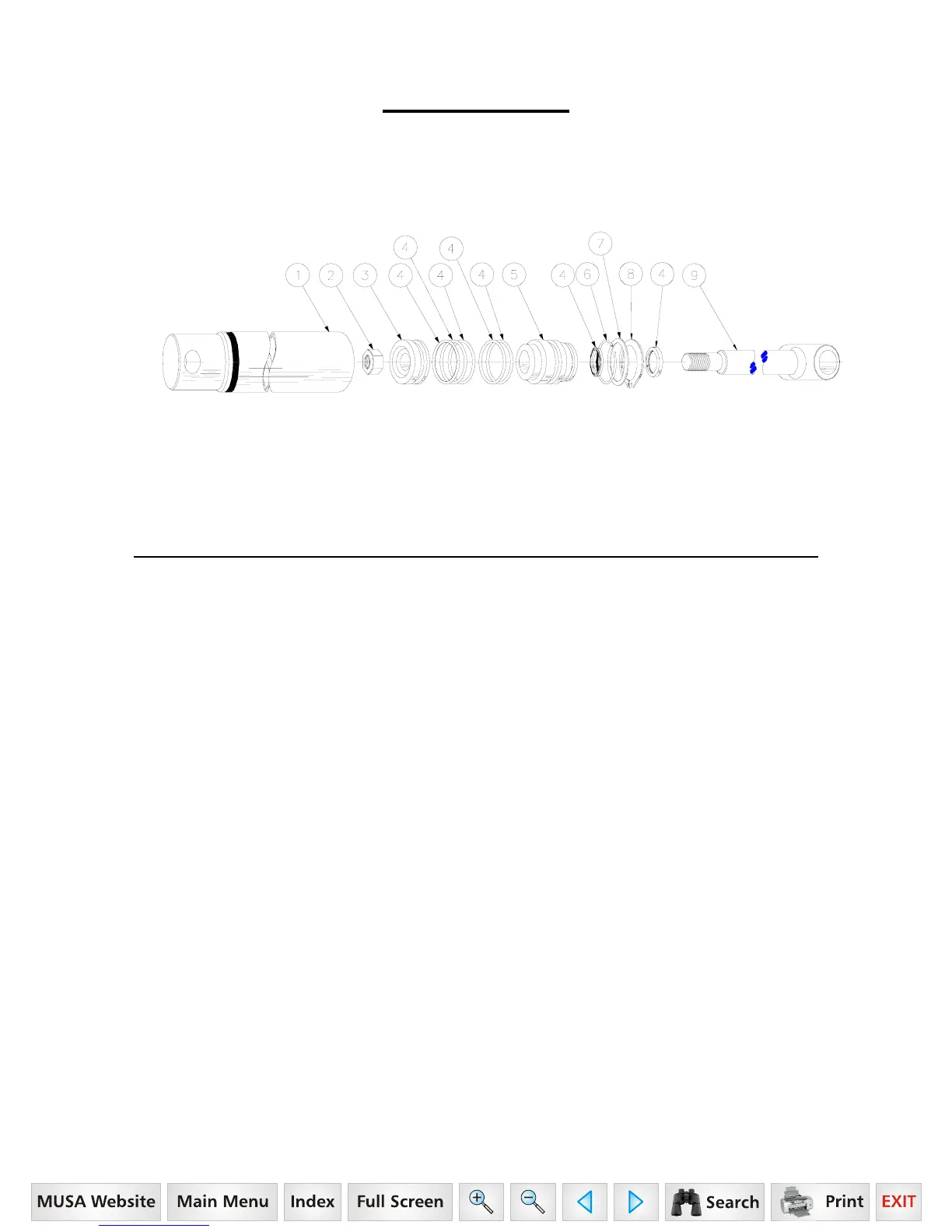

LIFT CYLINDER
3160-2045
Reference ................. Description .........................................................Part No. Qty.
1..............................Tube Assembly............................................0100-2055 ........1
2..............................Nut ................................................................0530-2000 ........1
3..............................Piston ...........................................................0405-2001 ........1
4..............................Seal Kit .........................................................0590-2016 ........1
5..............................Head..............................................................0330-2012 ........1
6..............................Retaining Ring .............................................0560-2002 ........1
7..............................Spacer ..........................................................0541-2001 ........1
8..............................Retaining Ring .............................................0560-2005 ........1
9..............................Rod Assembly .............................................0200-2055 ........1
16 Series, Model - 2816
