Low speed wiper Relay
Code Label
B 1015 Front wiper ON-OFF relay output short to Ground/ open
B 1016 Front wiper ON-OFF relay output short to battery.
Description
The MBFM controls the ON-OFF relay when the following functions are activated:
− The wipe switch is in the low speed position
− The RLS signal is within the limit of the low speed operation.( if vehicle with RLS and the
switch is kept on)

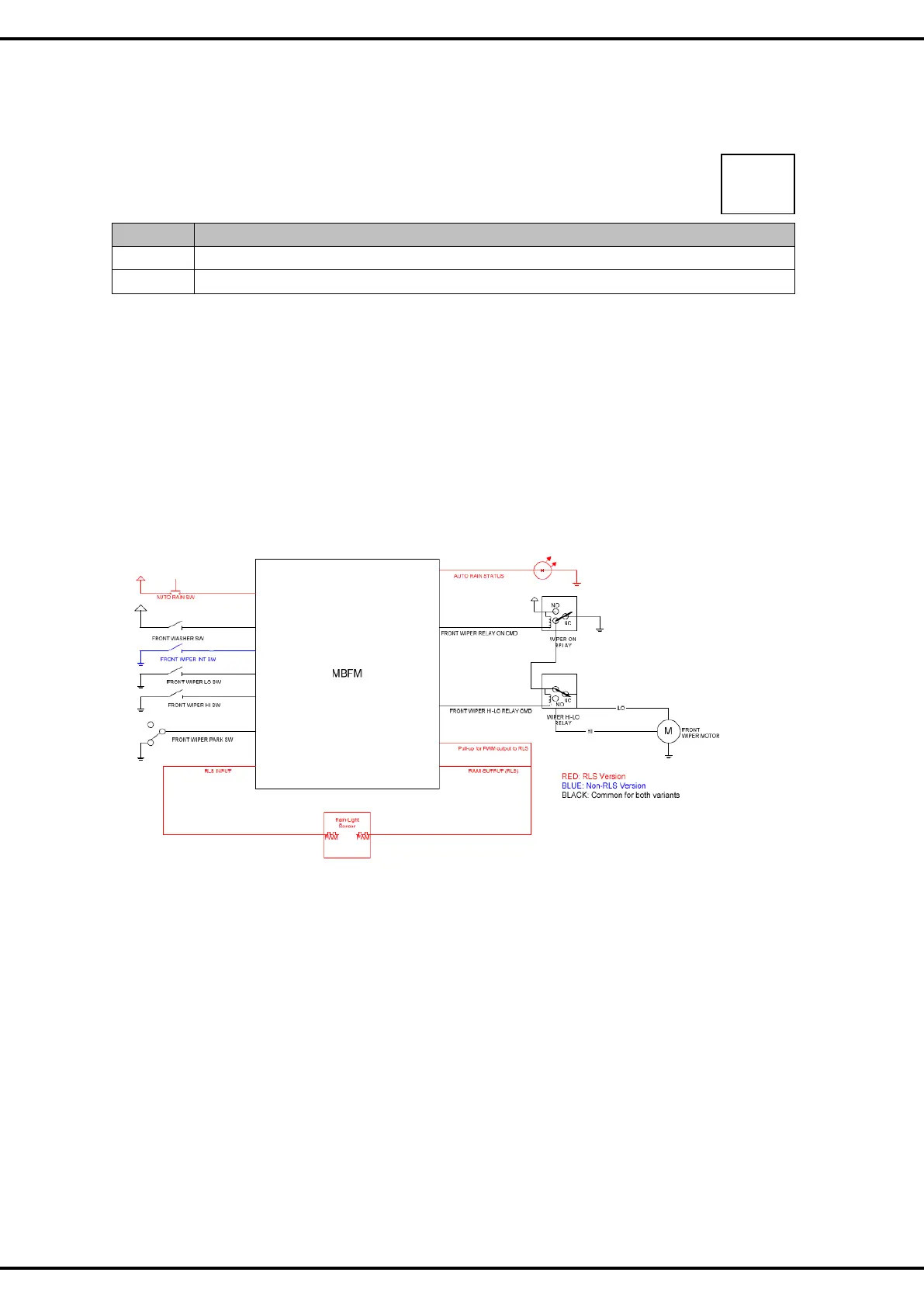

Block diagram to understand
B 1015
B 1016
