Diagnostic Manual (MBFM) MAN-00068-43
October 2009/Rev 1
The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The
methods may be modified as a result of changes introduced by the manufacturer in the production of the various component units and
accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of or whole of the present
document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd.
The use of this document by any person other than the
trained personnel, at the Authorised Service Centre of Mahindra & Mahindra Ltd., will amount to unauthorized use and shall be liable for
penalty/prosecution© 2009 Mahindra & Mahindra Ltd.
Front Wiper High Low
Code Label
B 1017 Front wiper High Low relay output short to Ground/ open
B 1018 Front wiper High Low relay output short to battery.
Description
The MBFM controls the High Low relay when the following functions are activated:
− The wipe switch is in the High speed position
− The RLS signal is within the limit of the High speed operation.( if vehicle with RLS and the
switch is kept on)

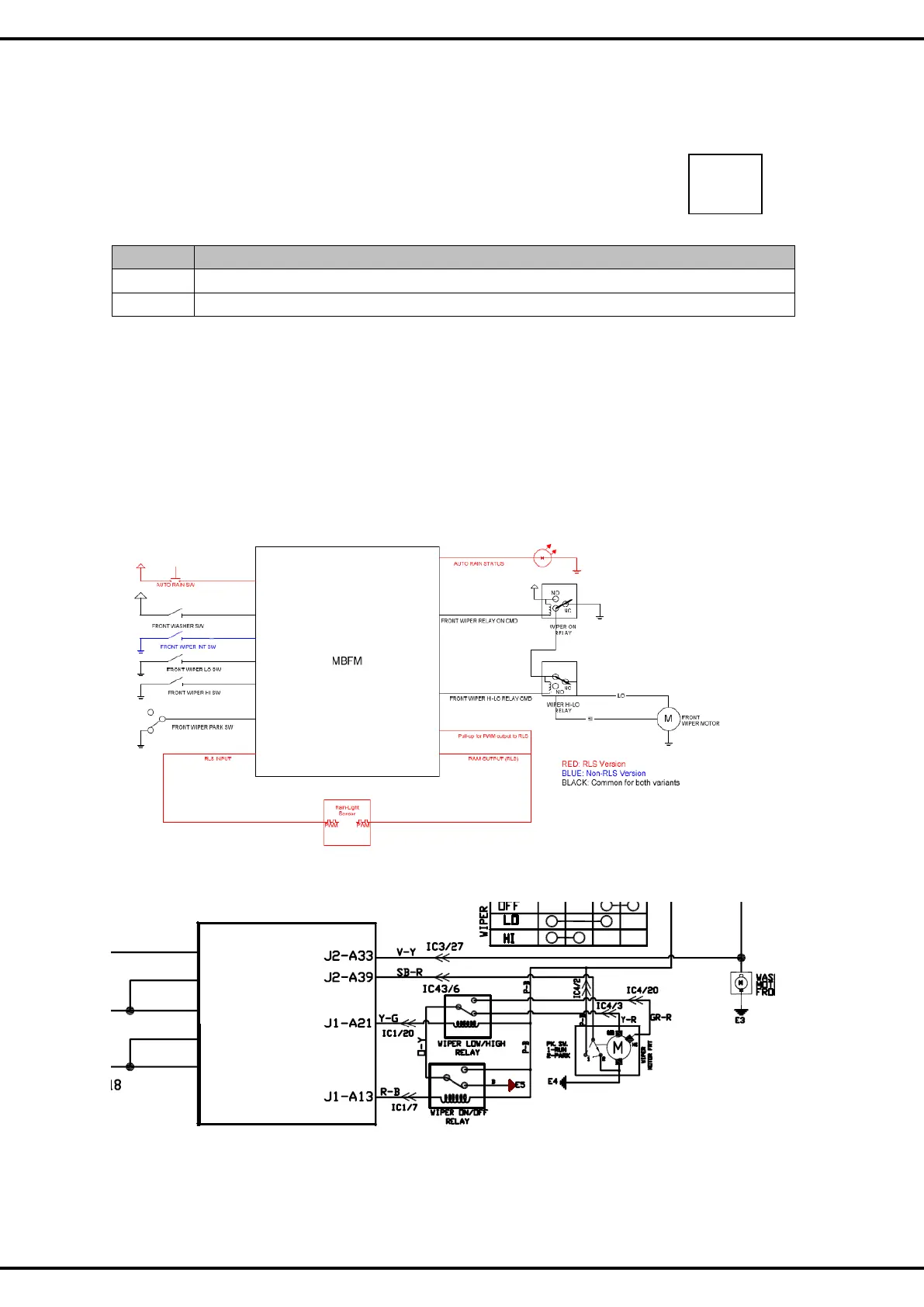

Wiring diagram
B 1017
B 1018
To Next Page
