Door UnLocking Output
Code Label
B 1021 Door unlock output LSD output short to Ground/ open.
B 1022 Door unlock output LSD output short to battery.
Description
Based on the inputs from the command of unlock received from the Remote the unlocking
is actuated by actuating the unlock relay.
The error is registered when the MBFM notices that output to the relay is either SHORT
TO GROUND or SHORT TO BATTERY.

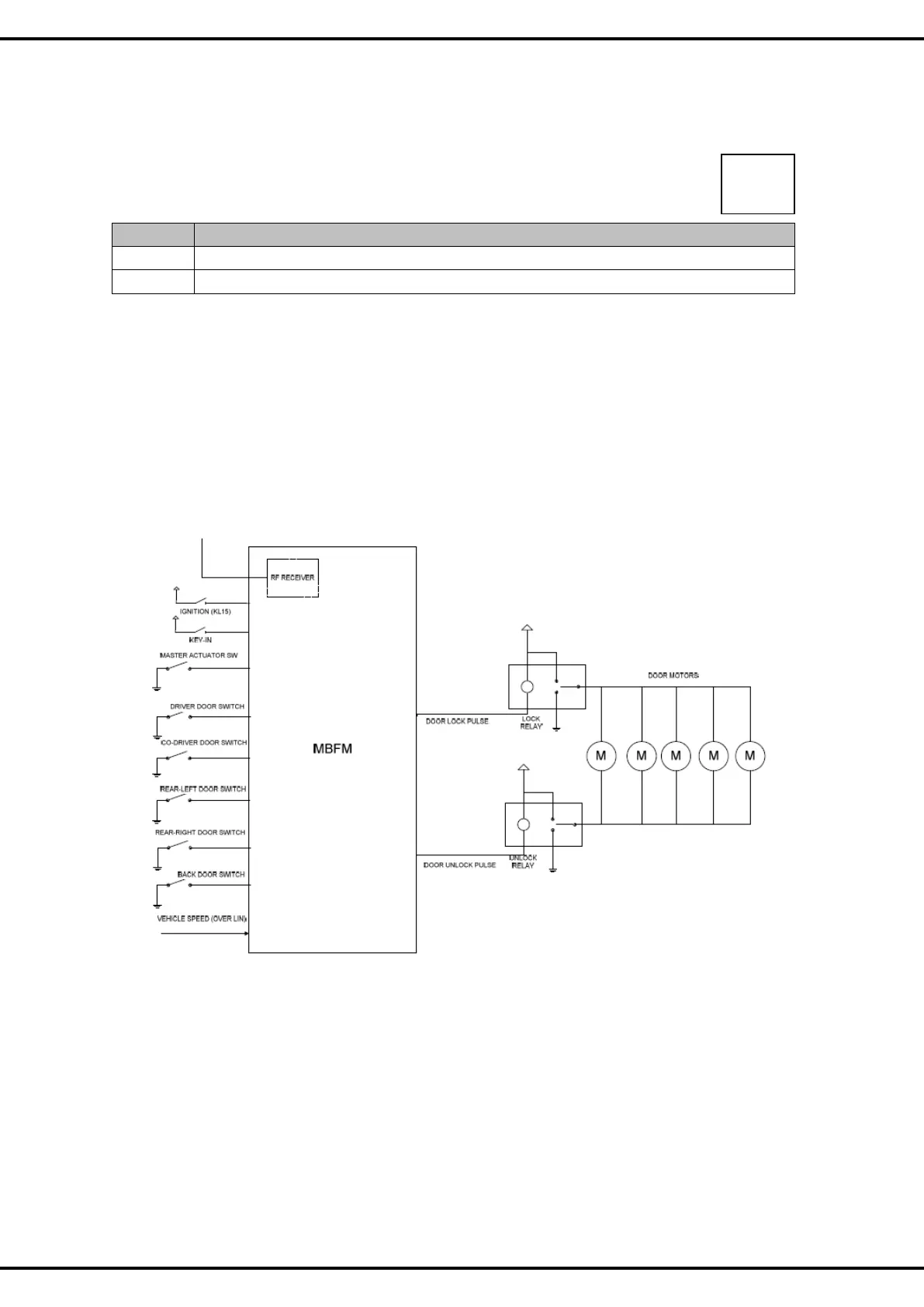

Block diagram
B 1021
B 1022
To Next Page
