Left Turn Indication
Code Label
B 1030 Left turn light short to battery/ Open
B 1031 Left turn light short to Ground
B 1032 Left turn light bulb outage
The turn signal lighting flashes the left or right turn signal lamps when the turn signal stalk
switch is in the left turn or right turn position respectively, and the ignition is in the Run or
Start position. A buzzer indication is giver to the driver to indicate that the feature is
running. The turn lights will only work when the Ignition is ON condition. However when
the Hazard function operate the turn lamps then it will work even if the ignition is not ON
The flashing rate (lamps and telltales) shall is double when the following happen:
1) An exterior lamp has failed (open circuit)
2) Battery voltage measurement failure is detected

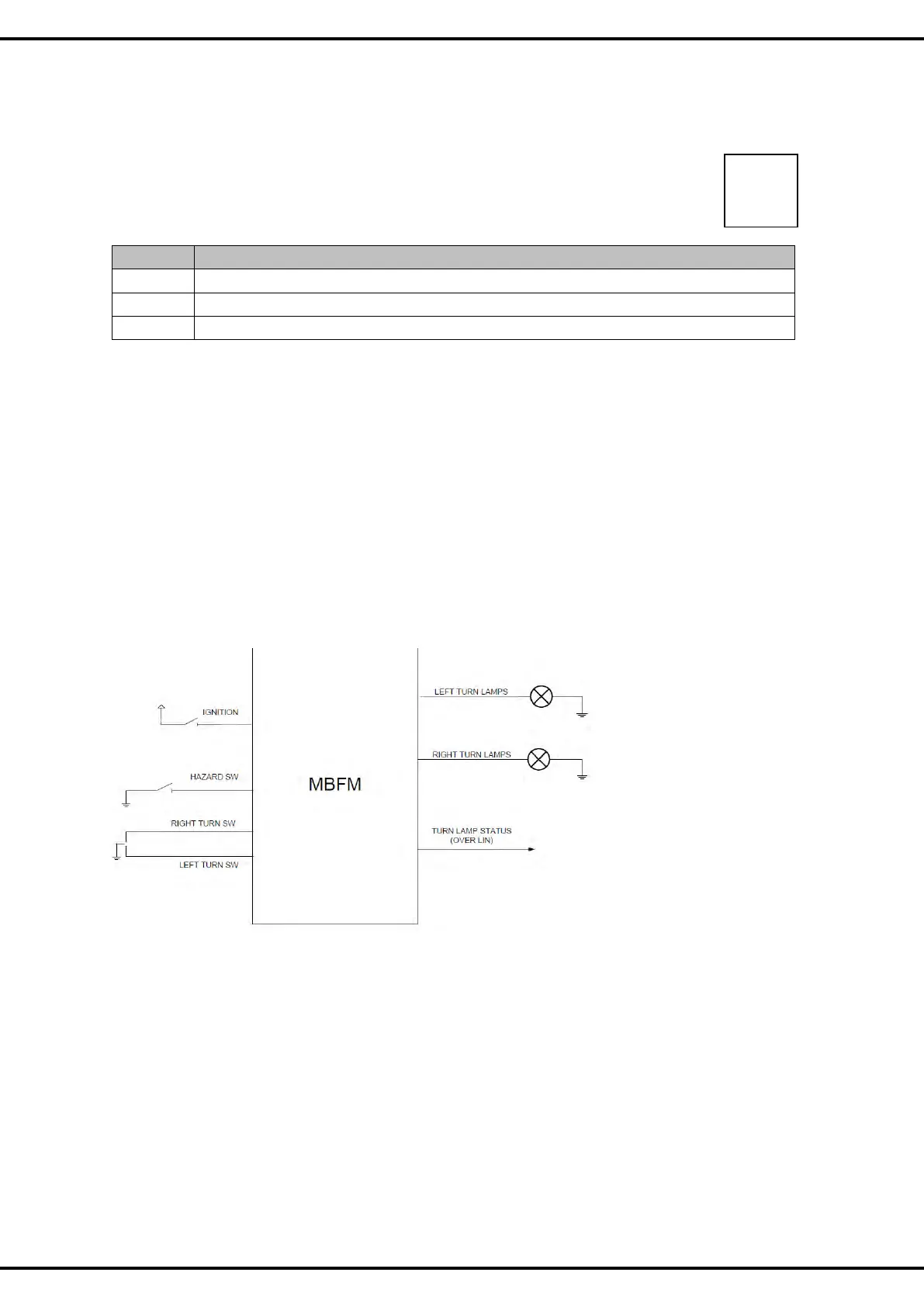

Block diagram of the turn lamps is given below.
B 1030
B 1031
B 1032
