Left Fog Light
Code Label
B 1033 Left fog light short to battery/ Open
B 1034 Left fog light short to Ground
The inputs for the fog lamp are the Park lamp switch position, front fog lamp switch
position.
The MBFM turns on the fog lamp only if the engine is running and the park lamp switches
have been turned ON.
The MBFM directly drives the fog lamps. There are separate outputs for RH and LH fog
lamp

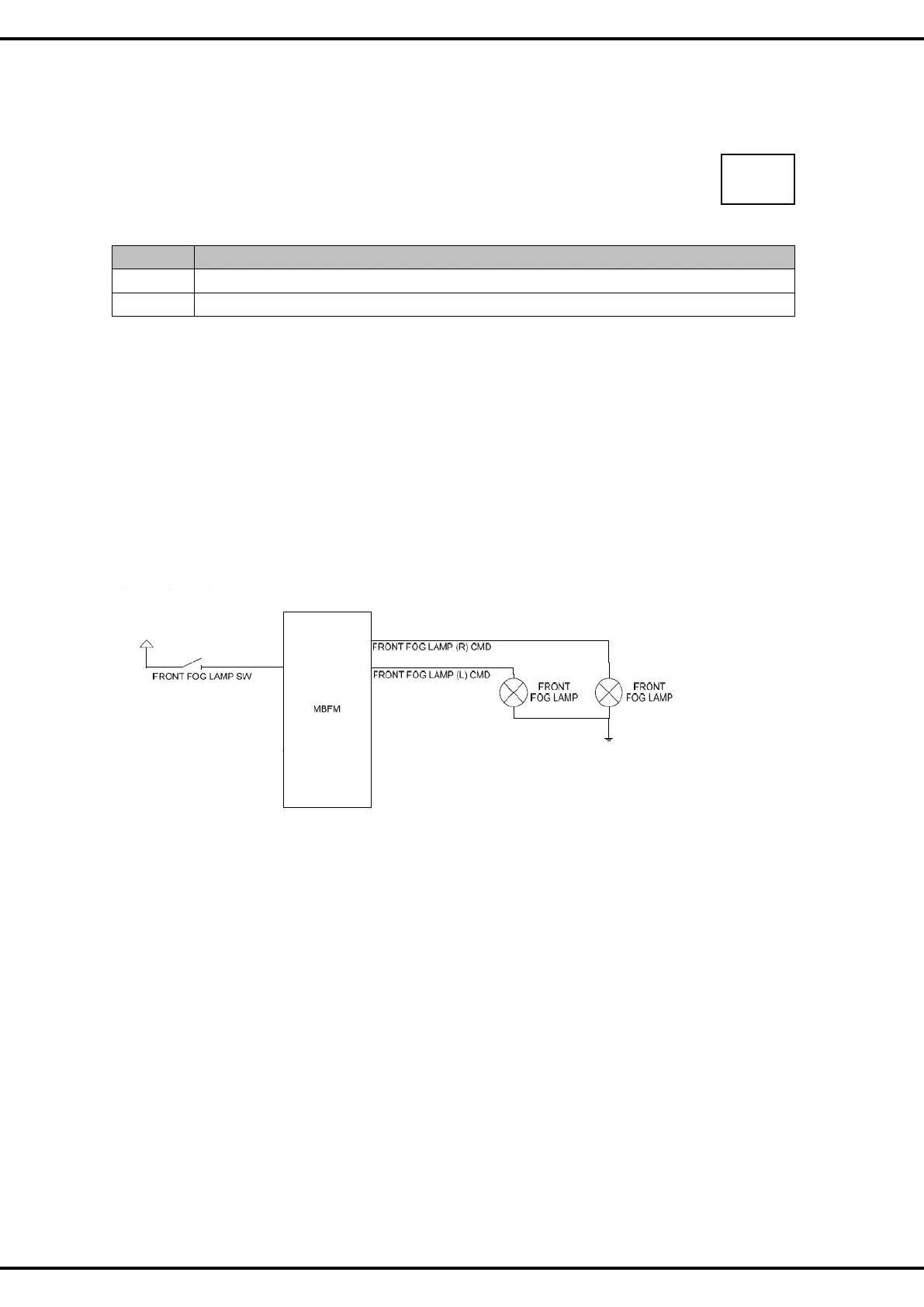

The block diagram for the fog lamp is given below.
B 1033
To Next Page
