Door Status to VMS
Code Label
B 1078 Door status output to VMS Short to Ground
B 1079 Door status output to VMS Short to Battery
Description
The MBFM reports the door status to the VMS.
This is valid on vehicles having the VMS.
Also the Ignition should be in IGN. Any of the doors is open.
.

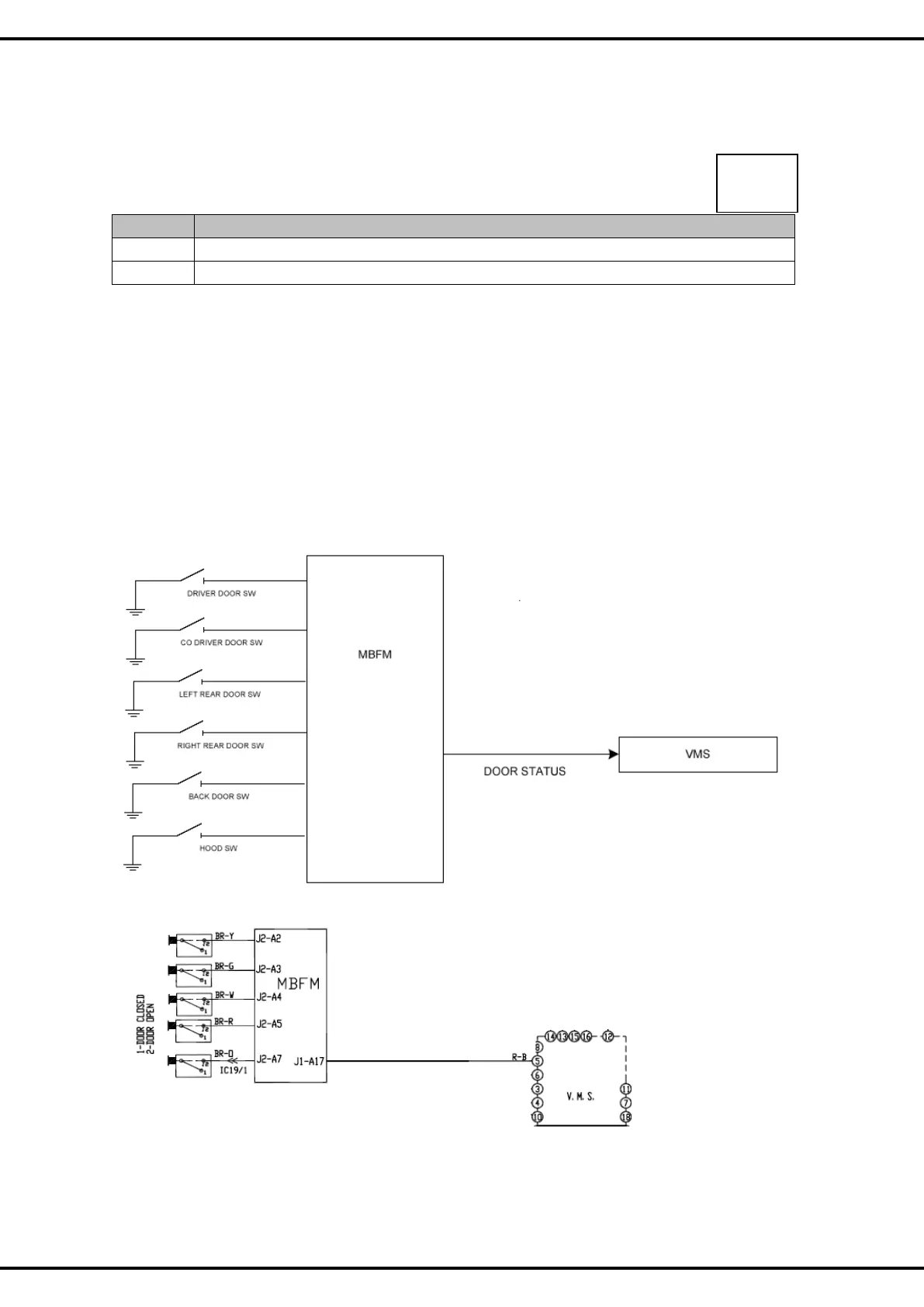

Block diagram
Wiring
B 1078
B 1079
