Bonnet Switch status to EMS
Code Label
B 1080 Bonnet switch output status output to EMS Short to Ground
B 1081 Bonnet switch output status output to EMS Short to Battery
Description
The MBFM reports the bonnet switch status to EMS
If the vehicles start stop is enabled and engine running then the EMS cross confirms that
the bonnet open signal is not there. If the bonnet signal open is detected then the start
stop is not activated.
The MBFM also monitors the output from MBFM to EMS. If the output is short to ground
or short to battery then they are logged as error

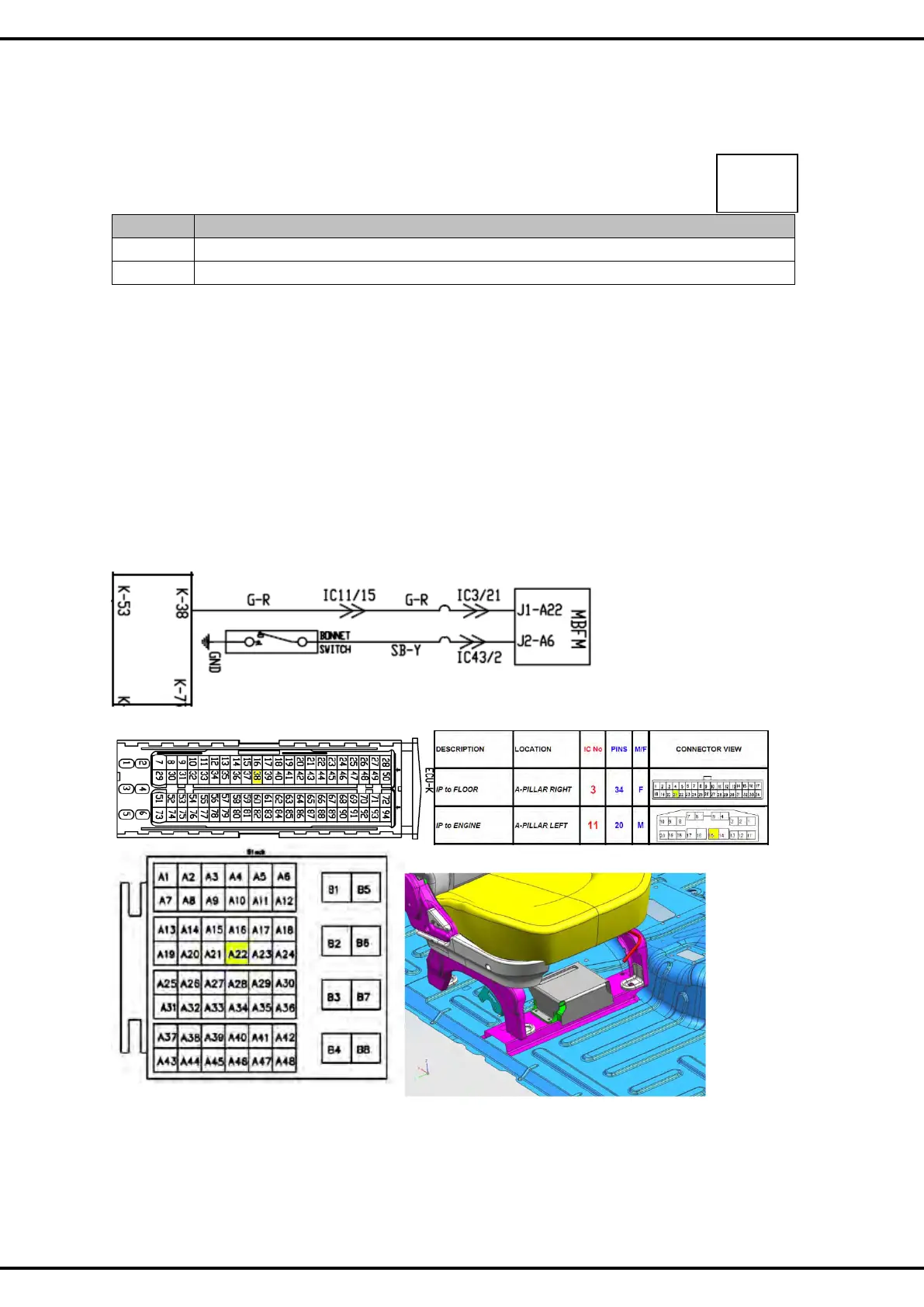

Wiring
Rectification
B 1080
B 1081
