RLS Input
Code Label
B1086 RLS Input Fault (No Signal)
B1087 RLS Input Fault (No Input Data)
B1088 RLS Input Fault (Glass Attachment)
Description
For vehicles with RLS sensor when the Auto rain switch is switched ON then the MBFM
gives an output to the LED switch and confirming that the system is active. (besides the
first wipe on switching auto rain ON)
When the output is detected either STG or STB then the error is registered.
Inputs required for Follow Me Home, Lead Me to Car, Auto light feature, Front Wiper

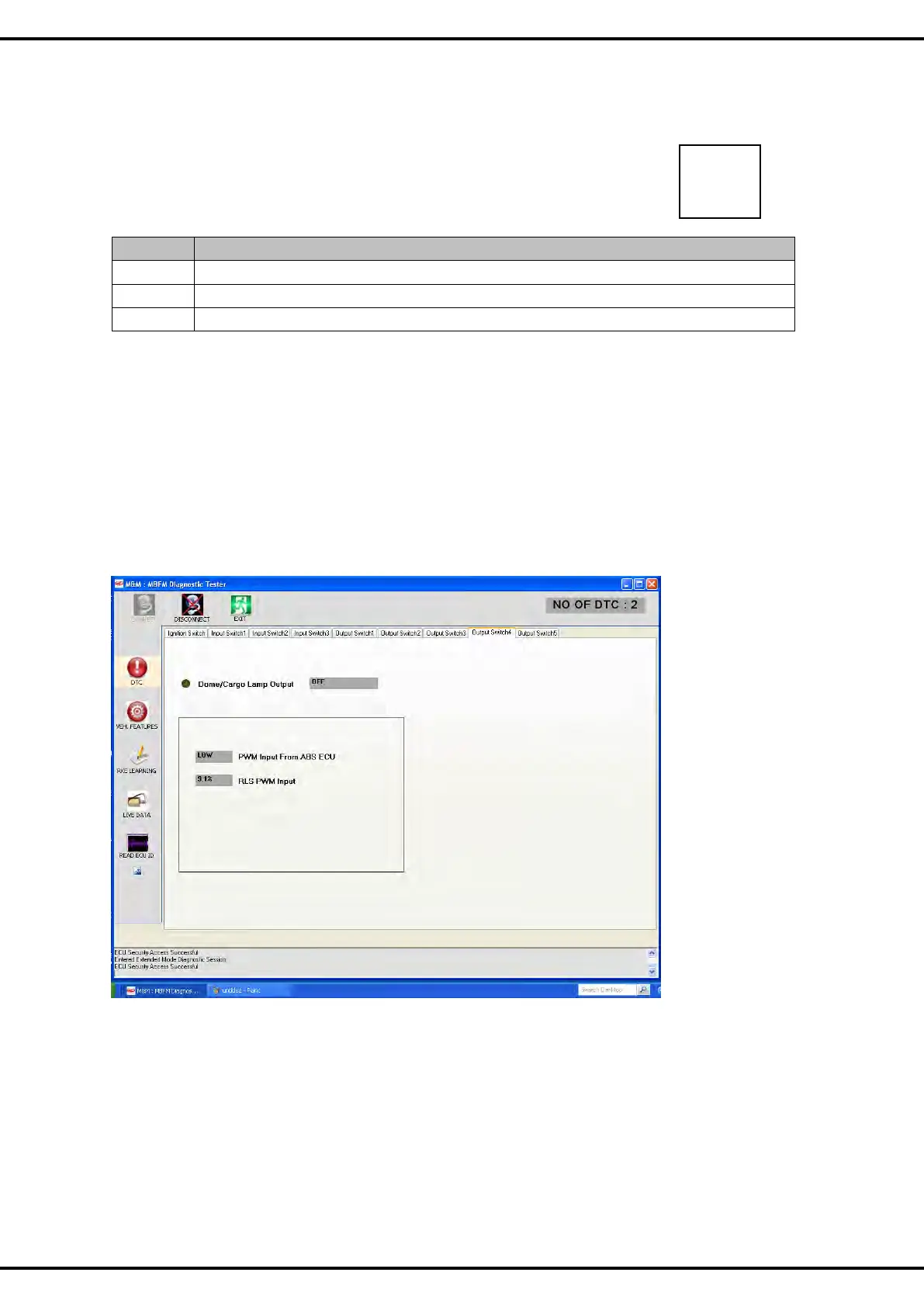

This input can also be seen in the diagnostic tester
To confirm the signal change to input, water can be poured on the windscreen ( where the
sensor is located) and the PWM input values change can be seen , or cover the sensor with
hand or cardboard and confirm the change.
