Mahindra SCORPIO User Manual

BODY AIRBAG
SCORPIO
28
CHECK THE RHS PRETENSIONER
NEGATIVE LINE FOR ISOLATION FROM
POWER UPTO IC - FLOOR
SRSF4
Turn the ignition key to OFF position
Disconnect Floor Interconnector
Turn the ignition key to ON position

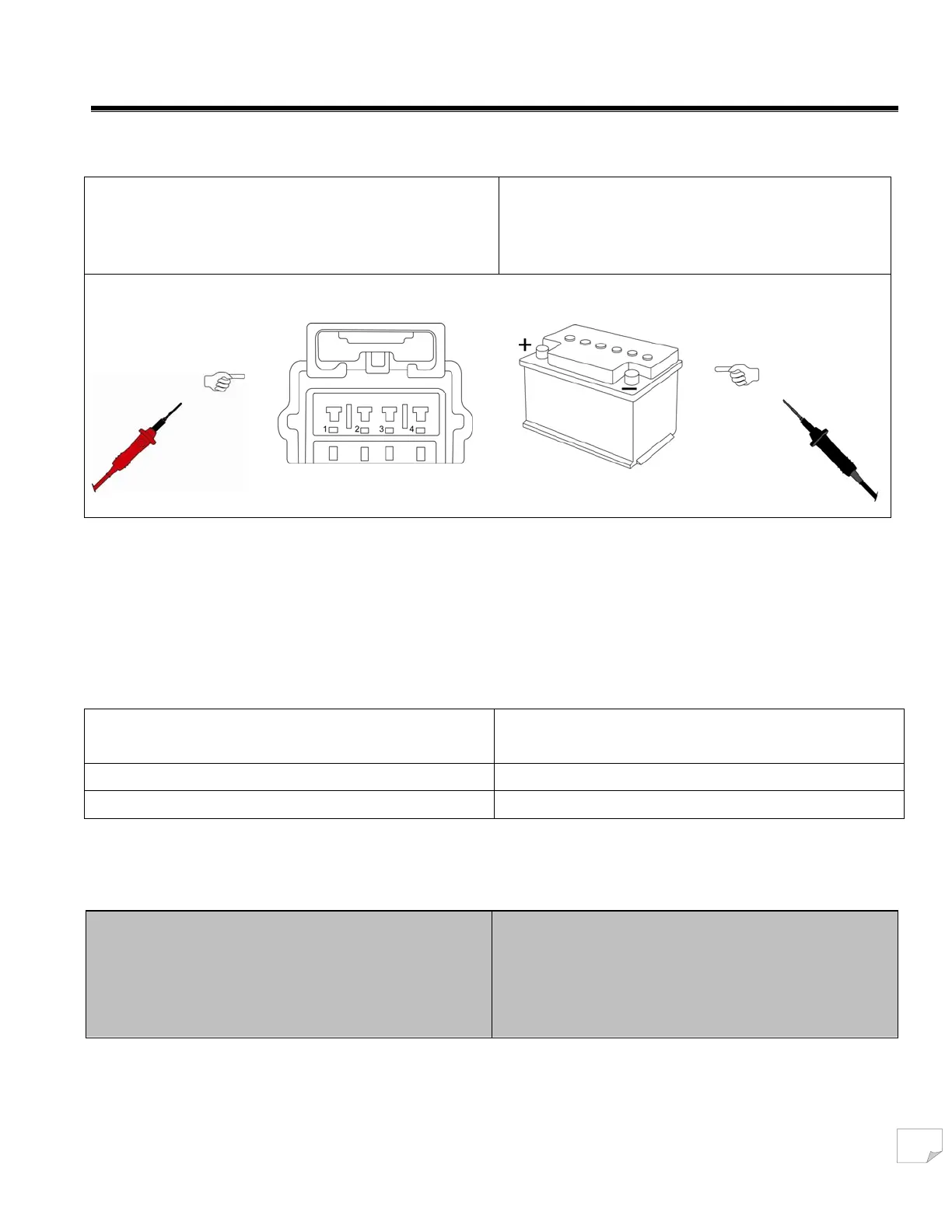

Measure the voltage between:
(+) Red Probe of Multimeter
Vehicle Battery
(-) Black Probe of Multimeter
Floor Interconnector, Female side
Positive terminal Pin 2 - LHD
Positive terminal Pin 4 - RHD
Is the voltage more than 3.7 V?
YES
Replace the Floor wiring harness and reactivate the
system.
(Refer to Reactivation sheet.)
NO
Replace both the Floor and CCB wiring harness and
reactivate the system.
(Refer to Reactivation sheet.)
