BODY AIRBAG
SCORPIO
78
CHECK THE DRIVER AIRBAG NEGATIVE
LINE FOR ISOLATION FROM GROUND
SRSA2

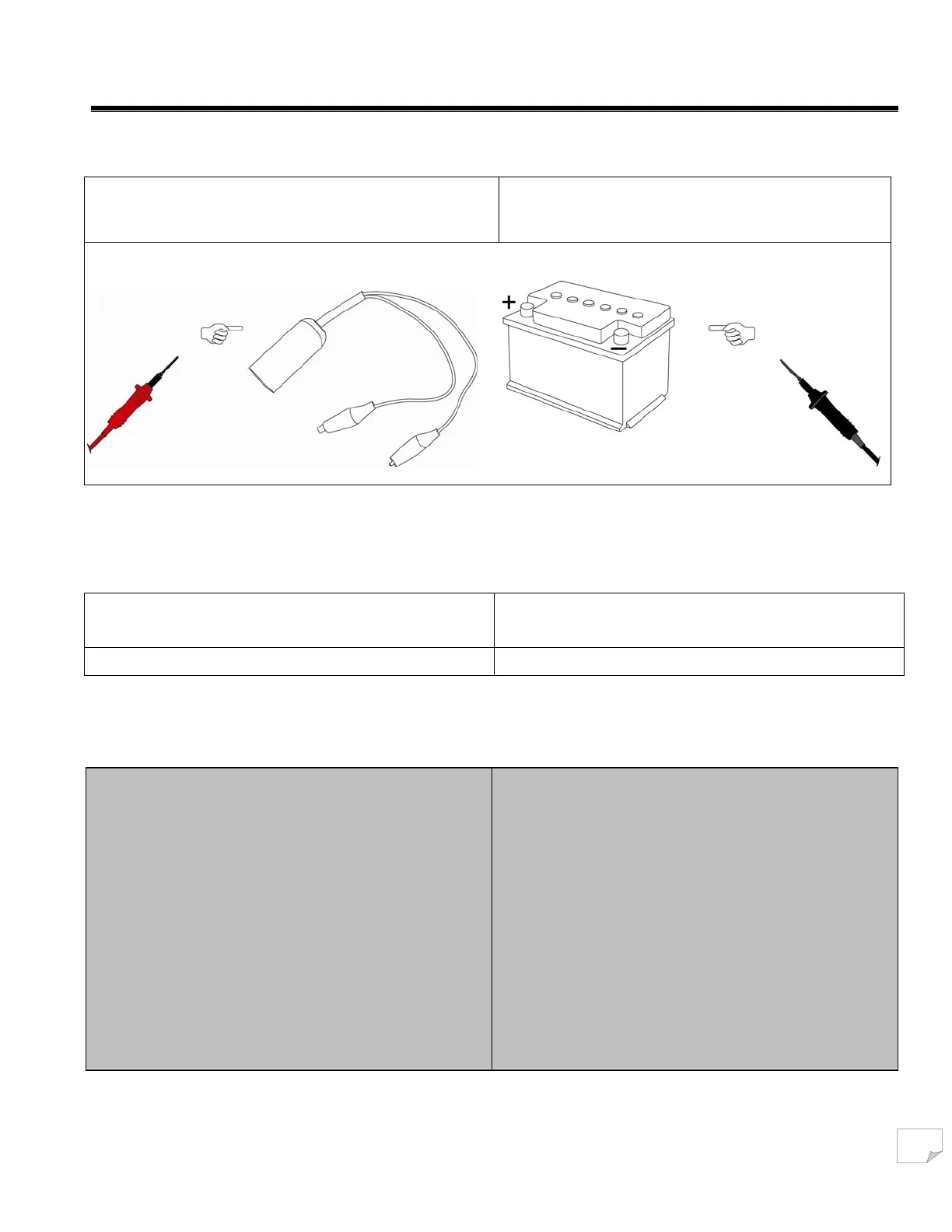

Measure the voltage between:
(+) Red Probe of Multimeter
Airbag Simulator, Fitted in DAB harness
(-) Black Probe of Multimeter
Vehicle Battery
Black Colour extension Negative terminal
Is the voltage more than 1.1 V?
YES
An intermittent fault may be present in the wiring
harness. Visually check for chaffed wires or other
physical damage to the harness. If no fault is found
in the circuit, suspect the following component(s):
a) Clockspring connector
b) DAB connector
c) Airbag module connector
d) Clockspring assembly
e) DAB assembly
f) Airbag module.
No
GO to SRSA4
