BODY AIRBAG
SCORPIO
96
CHECK THE LHS PRETENSIONER LINE
IMPEDANCE IN DIAGNOSTIC TOOL
SRSK1

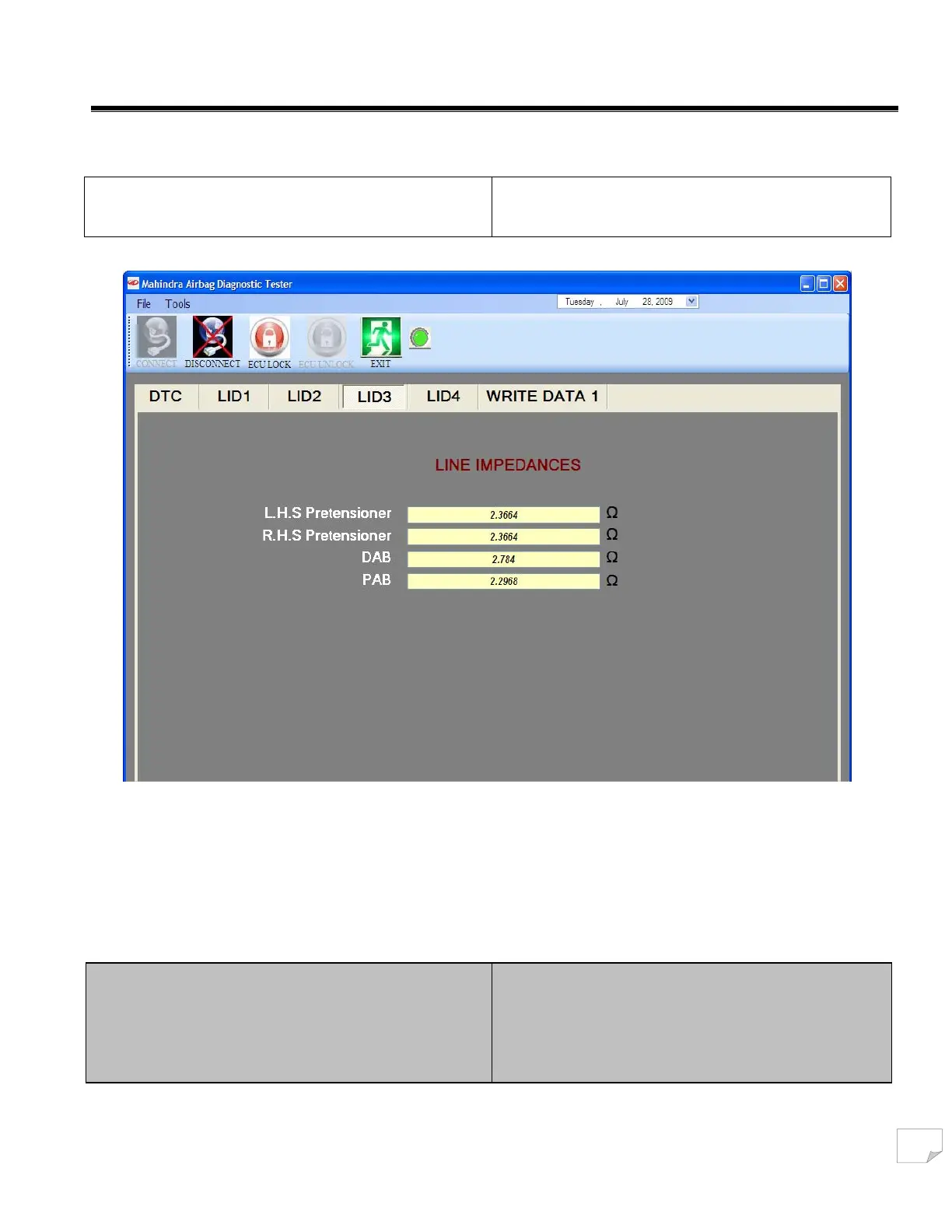

Select the LID3 tab in the diagnostic tool as shown above.
Read the LHS Pretensioner resistance value
The specified range for LHS Pretensioner is 2.0 to 3.0 ohms
Is the resistance within the specified range?
YES
No fault found.
No
GO to SRSK2
