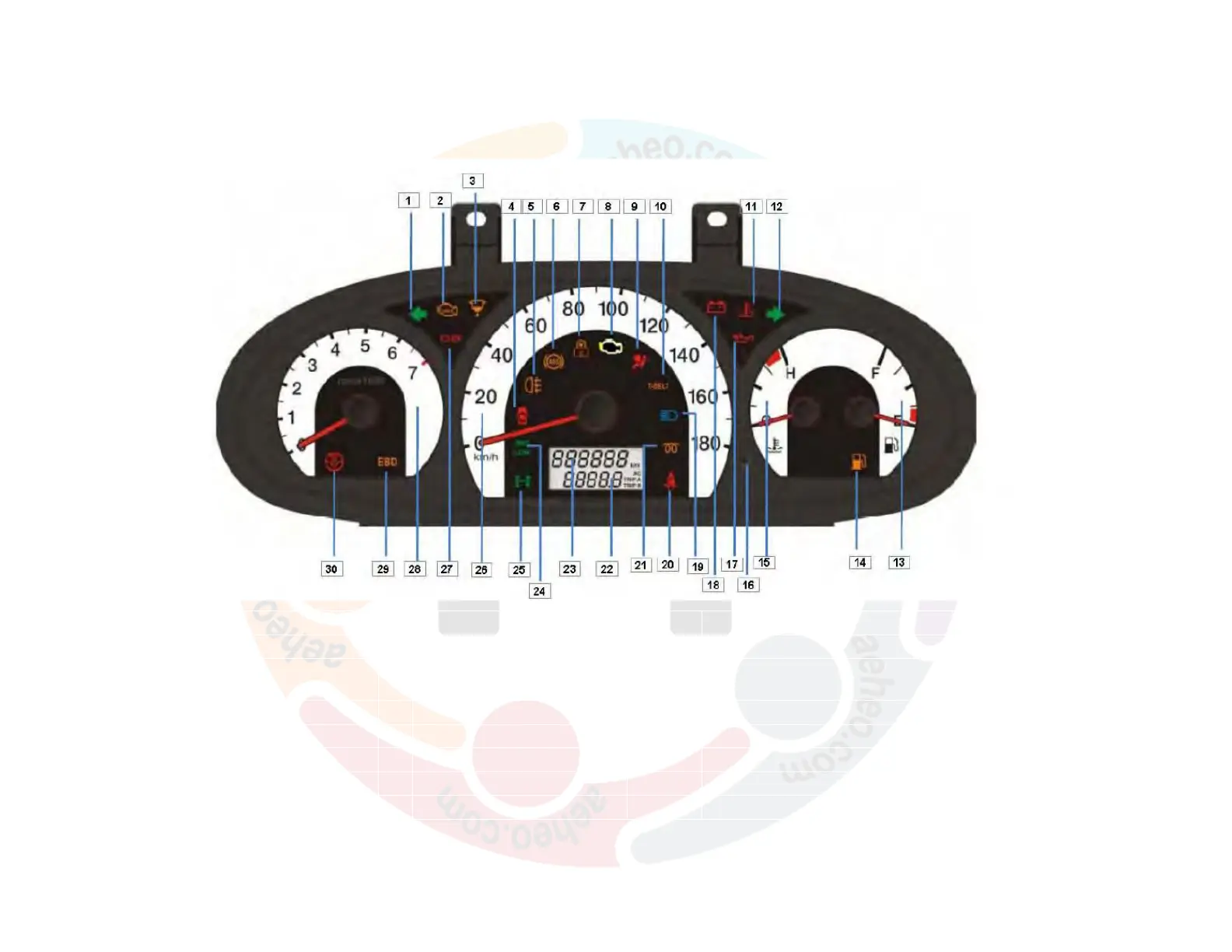

INSTRUMENT CLUSTER – XYLO mEAGLE
1 LEFT TURN INDICATOR 9 AIRBAG WARNING
17 LOW OIL PRESSUR
E WARNING 25 4WD HIGH
2 CHECK ENGINE LAMP 10 TIMING BELT WARNING 18 BATTERY CHARGE WARNING 26 SPEEDOMETER
3 WATER IN FUEL WARNING 11
HIGH ENGINE
TEMPERATURE 19 HIGH BEAM 27
BRAKE FLUID/PARK
BRAKE
4 DOOR OPEN 12 RIGHT TURN INDICATOR 20 SEAT BELT WARNING 28 TACHOMETER
5 REAR FOG 13 FUEL GAUGE 21 GLOW PLUG 29 EBD
6 ABS WARNING LAMP 14 LOW FUEL WARNING 22 TRIP A/B/AC METER 30 CHOKED AIR FILTER
7 ANTI-THEFT SYSTEM 15 TEMEPRATURE GAUGE 23 ODO METER
8 OBD LAMP 16 MODE/SET KNOB 24 4WD LOW
